3 The Control Panel
This chapter describes the button operations with the LCM menu flowcharts of ValueCut. When the
cutting plotter is ready for use as described in Chapter 1 & 2, all functions are under default parameters.
3.1 The LCD Panel
SPEED FORCE OFFSET
MISC TOOL SELECT DATA CLEAR CUT TEST
ON/OFF
LINE
PAUSE / RESUME ENTER
POWER

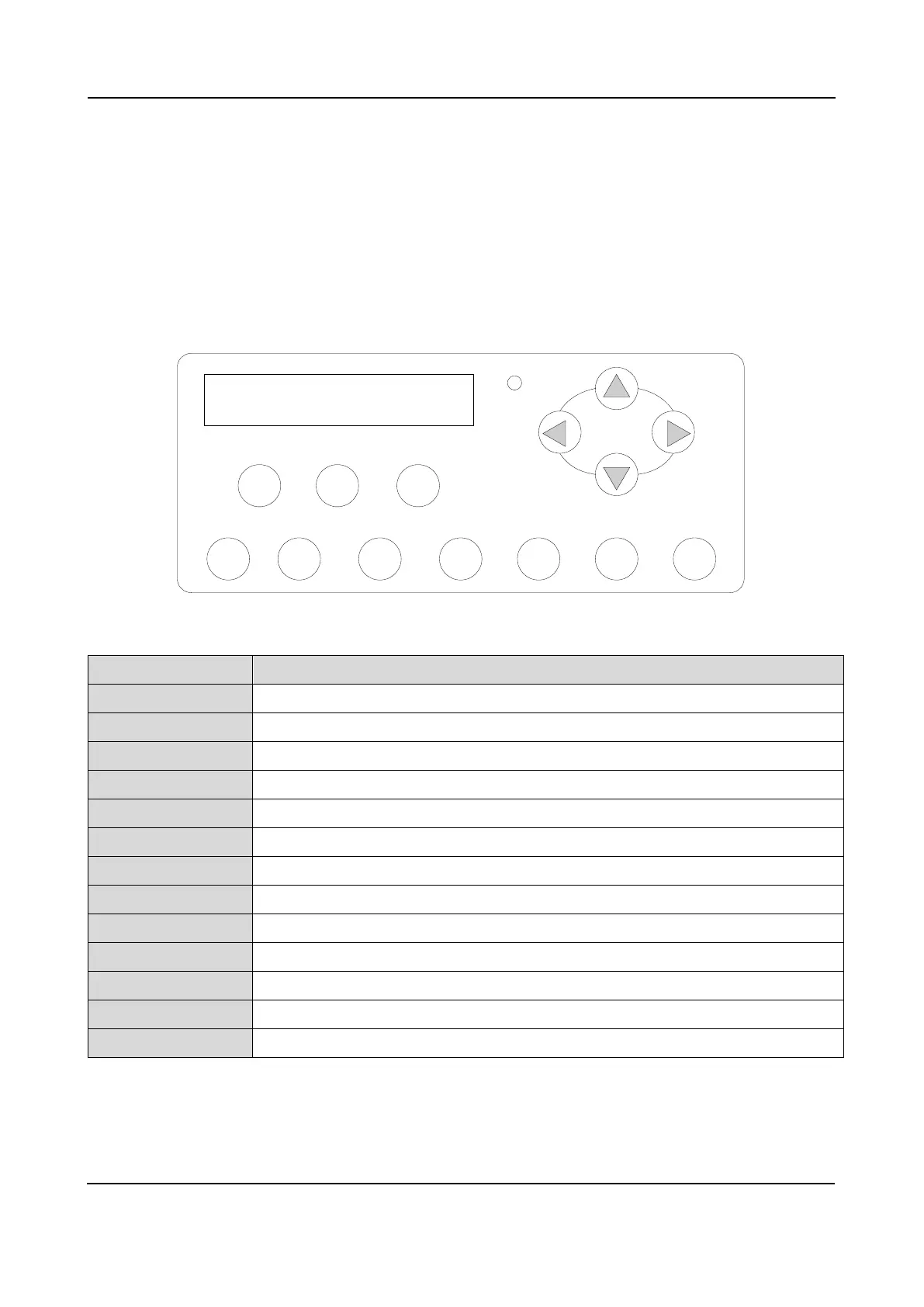

< LCD Control Panel on ValueCut series >
Key Function
LCD Screen To display functions and error messages.
Power LED To indicate the power status. ( light up: power on; light off: power off )
4 Arrow Keys To move position, select function, or change setting.
ENTER To set item or register the immediately preceding input value.
PAUSE/RESUME To temporarily halt cutting process or to continue.
ON/OFF LINE To switch modes, stop cutting job, or abort changes of settings.
OFFSET To adjust the value of blade’s offset.
FORCE To adjust the value of cutting force.
SPEED To adjust the value of cutting speed and quality.
CUT TEST To perform cutting tests in different ways.
DATA CLEAR To clear up buffer memory.
TOOL SELECT To select tools.
MISC To set up functions.
Please see details "3.4 Menu Items"
