5 Automatic Aligning System II
5.1 Introduction
The ValueCut series cutting plotters feature a standard Automatic Aligning System (AAS II) to guarantee
precise contour cutting quality by detecting the registration marks printed around the graphic.
Notice

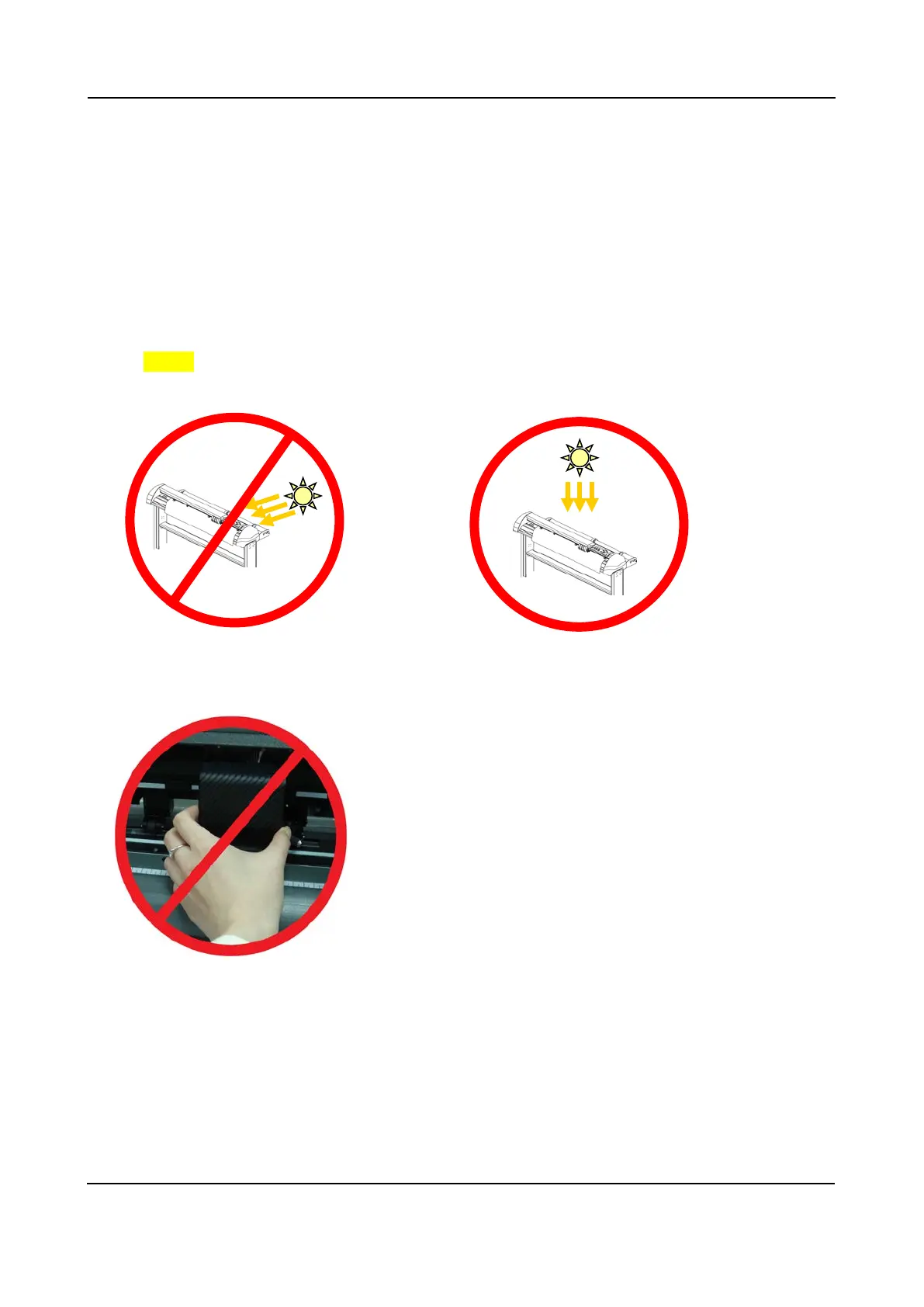

 Avoid any kind of light source horizontally illuminating the AAS module.
- PROHIBITED - ACCEPTABLE
 DO NOT take off the cover of AAS module while in operation.
- PROHIBITED
