ValueCut USER MANUAL Operation
47
VC2E-A-00

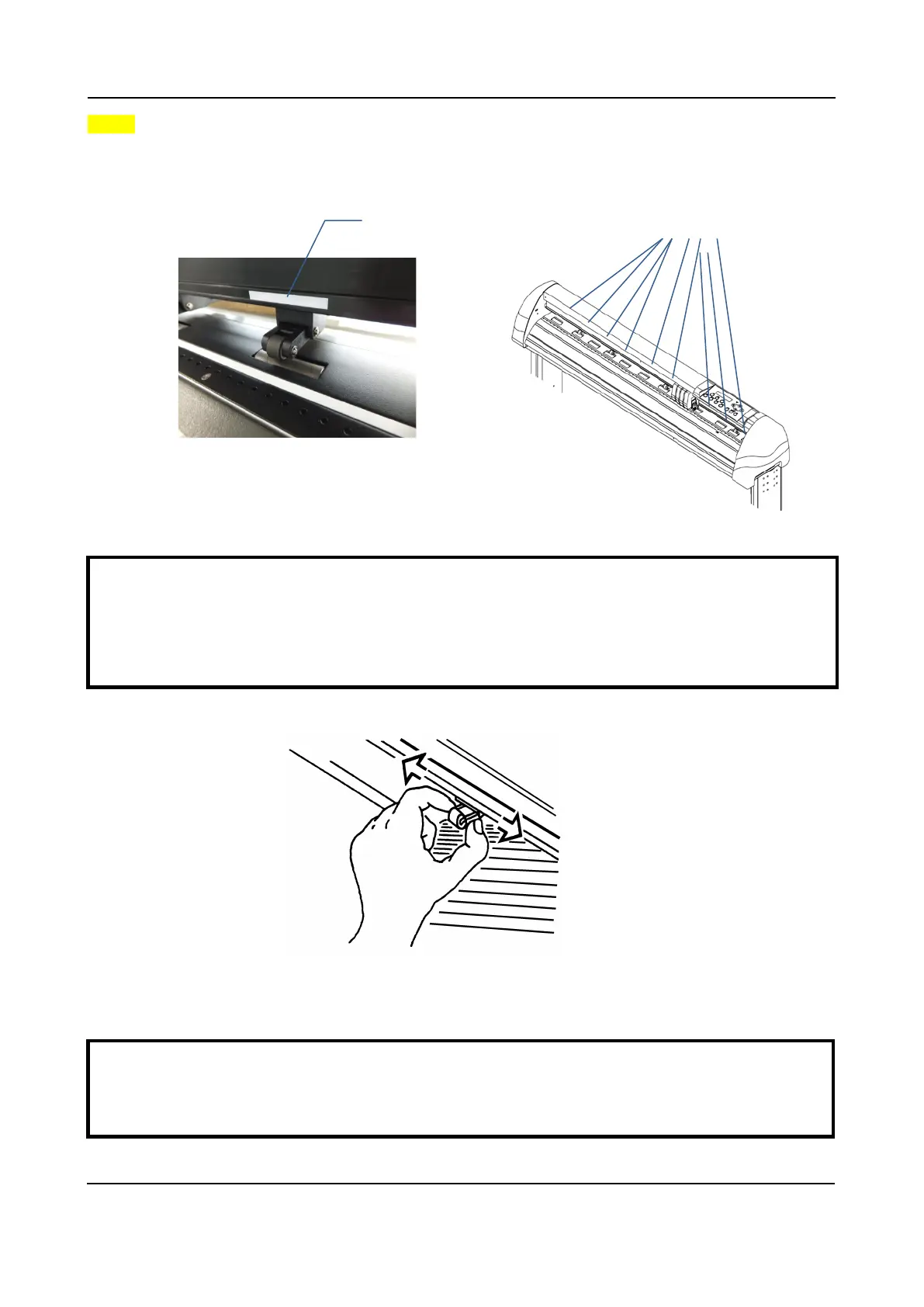

Step 3
Then move the pinch rollers manually to the proper position. Be sure the pinch rollers must be positioned
above the grid drum. The white marks on the top trail will remind you where the grid drums are. (Figure
4-3)
ｔ
Figure 4-4
Note:
1. Always adjust the position with the pinch roller raised.
2. Move the pinch roller by applying force at the rear portion of the pinch roller support.
3. Do not move it by holding its front rubber roller. (Figure 4-4).
Note:
Please pull up the bottom of all pinch rollers (Figure 4-5) before the lever is pushed backwards to
ensure accurate media width detection.
White marks
Figure 4-3
White mark
