4-Point Positioning also offers the multi-copy function.
The function is used to duplicate images to let you cut quantities of images at a time. The AAS II
sensor will automatically scan registration marks for each individual image to ensure the contour
cutting precision.
Command: Esc.D3;(XCopies);(YCopies);(Space):

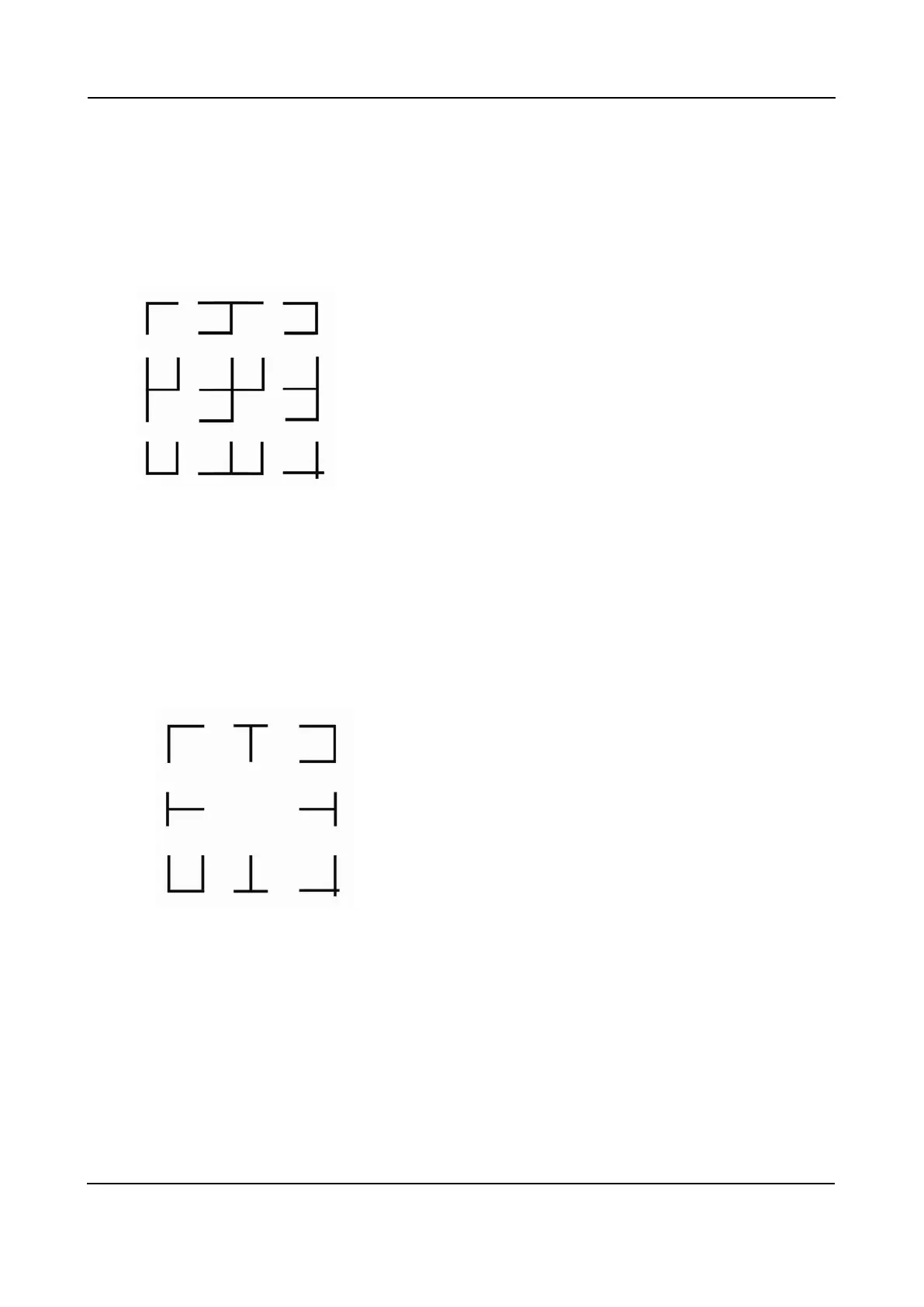

Layout:
2. Segmental Positioning
In addition to 4 original points, the intermediate registration marks are added on both X axis and Y
axis to help contour cut accurately, especially for cutting large images.
Command: Esc.D2;(XDist);(YDist);(XStep);(YStep):
Layout:
In-between distance on X: 200 ~ 600 mm, default 300 mm
In-between distance on Y: 200 – 600 mm, default 300 mm
