2. DESCRIPTION OF THE SYSTEM
2.1. DESCRIPTION OF THE X-RAY DEVICE
The myray RX DC - RX DC/I is available in the following
versions:

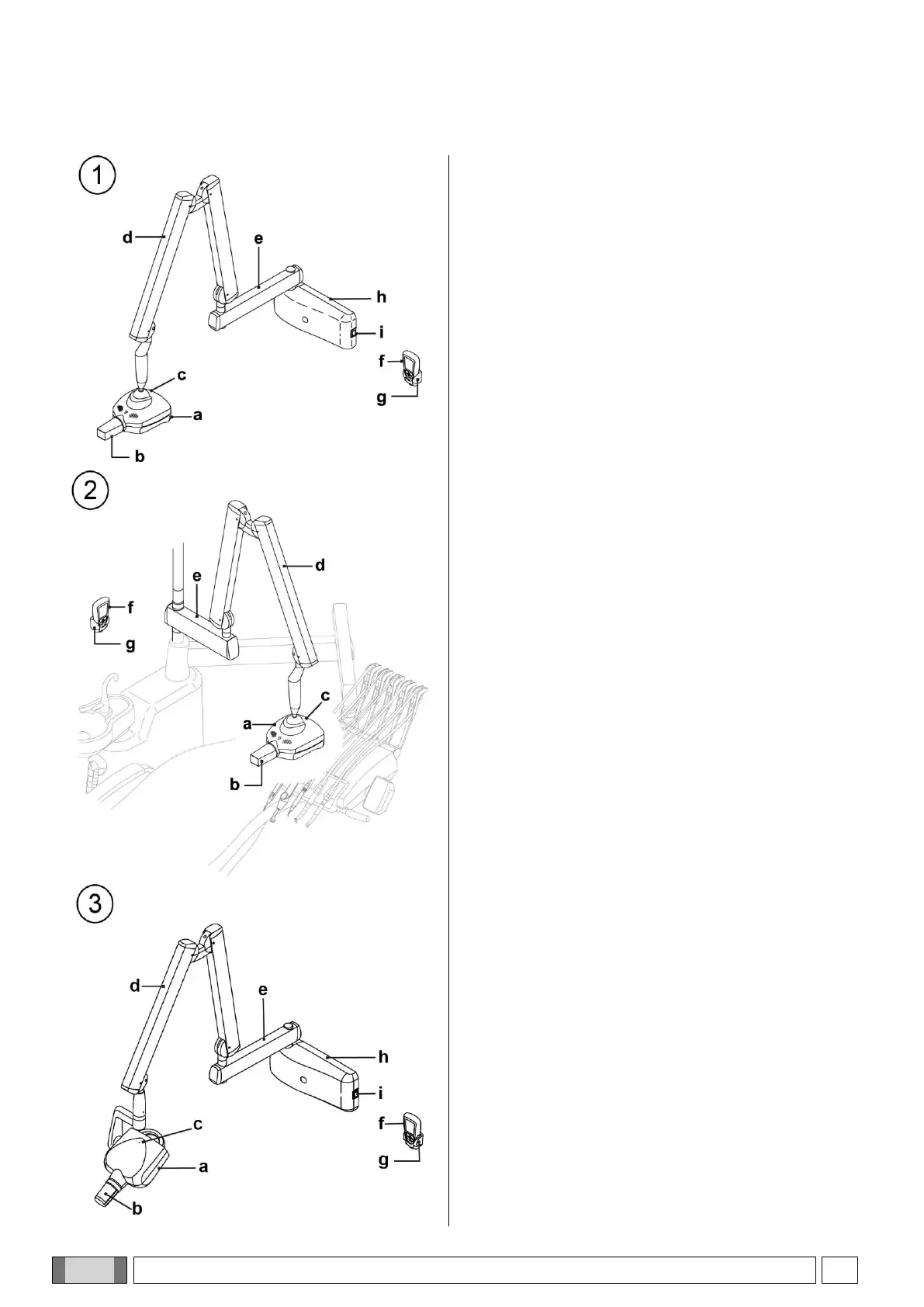

1- RX DC Plus wall-mounted version
2- RX DC Plus / I version incorporated in the dental unit
3- RX DC eXTend version
Description of equipment:
a X-ray generator.
Depending on the operating mode, the constant potential
high frequency x-ray generator works at 60KV 7ma (En60
mode), 63KV 6ma (En63 mode) or 65KV 6ma (En65
mode).
In RX DC Plus versions the generator can rotate on a
horizontal plane endlessly; on the other hand, as far as
vertical movement is concerned, rotation is limited
upwards by a mechanical end-stop.
In the RX DC eXTend version, the generator can turn
endlessly on both a horizontal and vertical plane. Rotation
is limited by mechanical end-stops.
b - Removable cone.
The generator can work with different types of collimator
that are automatically recognized:
- 8” ROUND COLLIMATOR (incorporated in the
generator): minimum skin/focus distance 20cm and
60mm output beam.
- REMOVABLE 12” rectangular CONE (only RX DC
Plus):minimum skin/focus distance 30cm and 45x35
mm output beam (rectangular collimator attached).
- REMOVABLE 12” round CONE (standard in RX DC
eXTend, optional in RX DC Plus): minimum
source/skin distance 30cm and diameter of x-ray
beam exiting cone 55mm (with cone attached).
The following rectangular cones to be attached to a 12”
round cone are also available as optionals:
- RECTANGULAR CONE 22x35 mm
- RECTANGULAR CONE 31x41 mm.
c - Focus spot.
d - Double pantograph arm.
e - Extension arm.
The extension is available in three lengths in the WALL-
MOUNTED version: 40 cm (15,7"), 60 cm (23,6") e 90 cm
(35,4").
The extension has just one measure of 30 cm (11,8") in
the INCORPORATED version.
f - Handheld.
The handheld can be placed either near the control unit or
in a remote position. As a result, the doctor can move
conveniently around the room and move out of the area
where x-rays are emitted.
g Hand held holder.
h Control unit.
I - Master switch (only for WALL-MOUNTED versions).
