Napco iSecure Security System All technical manuals are available in PDF format at tech.napcosecurity.com 65
ISEC-WL-TOUCH "System Diagnostics" and "AutoEnroll"
System Diagnostics

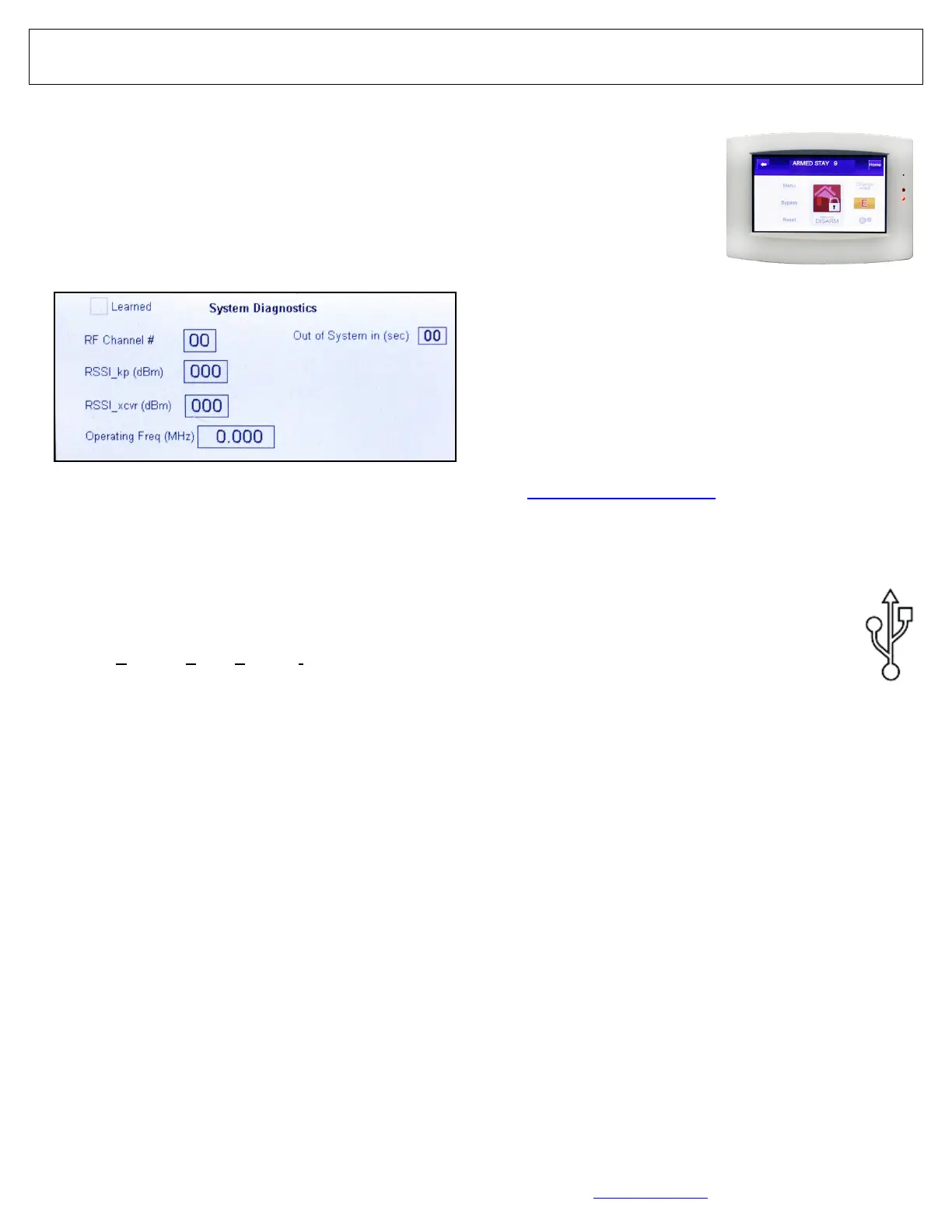

The ISEC-WL-TOUCH "System Diagnostics" screen shown
below is exclusive to the ISEC-WL-TOUCH 4.3-inch 900MHz
Color Touchscreen Wireless Keypad. It is designed to help
you find the optimum mounting location for your ISEC-WL-
TOUCH keypad by displaying the signal strength of the
900MHz radio signal link between the Go-Anywhere Hub and
the ISEC-WL-TOUCH keypad within the installation environ-
ment. This screen is accessed by tapping the Settings
("gears") icon, then tapping the DIAG button.
Each button and field in this screen is described below:
Learned
Checked when the status of the ISEC-WL-TOUCH key-
pad is paired into the iSecure system; otherwise un-
checked.
RF Channel #
Displays the frequency of the channel used for communi-
cations between the Go-Anywhere Hub and the ISEC-WL
-TOUCH keypad.
RSSI_kp (dBm)
RSSI (Received Signal Strength Indicator) is a measure-
ment of the power present in a received radio signal.
This field displays the 900MHz radio signal that the ISEC-
WL-TOUCH keypad received from the Go-Anywhere
Hub.
RSSI_xcvr (dBm)
The RSSI value that the Go-Anywhere Hub received from
this ISEC-WL-TOUCH Keypad.
Operating Freq (MHz)
Displays the wavelength, in megahertz, of the radio fre-
quency used in communications between the Go-
Anywhere Hub and the ISEC-WL-TOUCH keypad.
Out of System in (sec)
Displays the number of seconds the communication link
between the Hub and the ISEC-WL-TOUCH keypad was
interrupted. If Out of System, this field will count down.
AutoEnroll
This feature is a quick and easy way to enroll wireless devices
into your iSecure system. Before you begin, remove the bat-
tery from the wireless device. With the unpowered wireless
device physically "in hand", and with its battery within reach
(always use fresh batteries), perform the following steps using
the ISEC-WL-TOUCH keypad:
1. Press and hold the System Settings ("gear") icon, enter
your Dealer password, then tap ENTER.
The keypad red and green LEDs will flash simultaneous-
ly, while a "please wait" message appears.
2. In the System Settings
screen, tap Sensor Con-
figuration.
3. Tap the Zone # button
and enter the zone num-
ber into which you wish
to add the device (for
example tap 0 2 for zone
2).
4. Tap the AutoEnroll but-
ton.
5. Install the battery into the
wireless device.
6. Ensure the Wireless ID
# field is populated with the same transmitter ID number
printed on a sticker affixed to the device (location of the
sticker varies with each device; check the transmitter rear
housing or PC board).
7. Ensure the Area selections are correct for the specific
transmitter to be enrolled, then tap Save.
Note: After AutoEnrolling transmitters, be sure to upload
the new data to the iSecure Cloud Web Portal
(www.iSecureByNapco.com) and test the device. See
page 6, Dealer Programming for more information.
ISEC-WL-TOUCH
Wireless 900MHz
Touchscreen
ISEC-WL-TOUCH2
The enhanced model ISEC-WL-TOUCH2 includes
an internal USB connector in the event a graphics
update and/or restore is required. This USB is not
for general use and is to be used ONLY with in-
structions and files from NAPCO Technical Support.
