Rotate Performance knob 4 (
SCAN) to scroll through the track. Check if the Beatgrid stays
aligned over the course of the track.

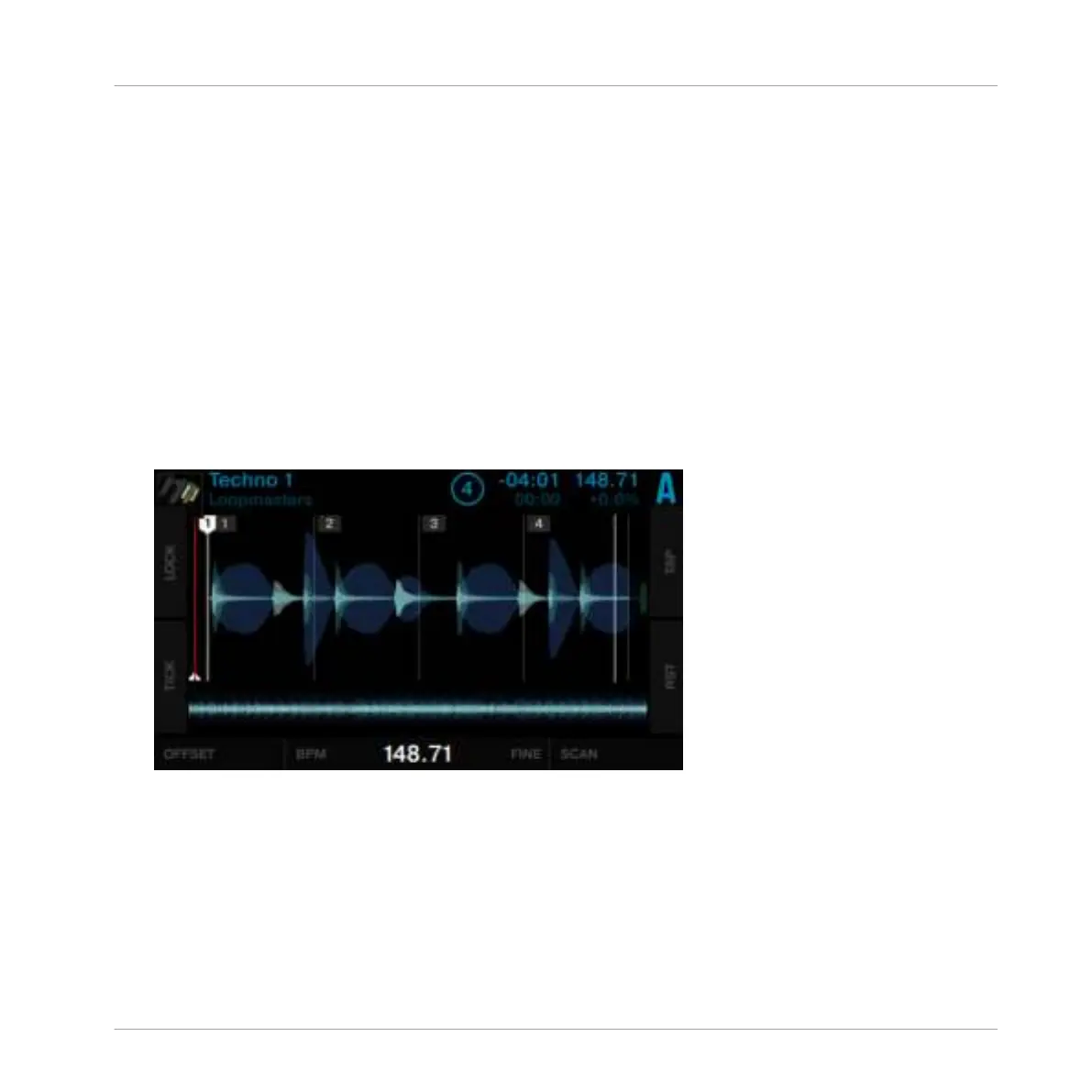

Beatgrid Interactions
While the track is playing with Beatgrid Mode enabled:
►
Press the Performance Mode buttons to select the desired parameter
OFFSET, BPM, FINE, or
SCAN in the Footer.
►
When
OFFSET is selected rotate the LOOP encoder to shift the entire waveform underneath
the Beatgrid. Align the first Beatmarker with the first peak in the loop's waveform.
►
When
BPM is selected rotate the LOOP encoder to correct the detected BPM value in
coarse steps. Try to align the second, third and fourth beat (in most cases indicated by
the biggest peaks in the waveform) with the second, third and fourth Beatmarker.
Using Your S5—Getting Advanced
Working with Beatgrids
TRAKTOR KONTROL S5 - Manual - 136
