Introduction
Electrode labels
The electrode label has an area for writing customized electrode nomenclature. For
temporary markings, use an erasable dry marker. Use Isopropyl Alcohol to remove
the temporary markings from the labels.

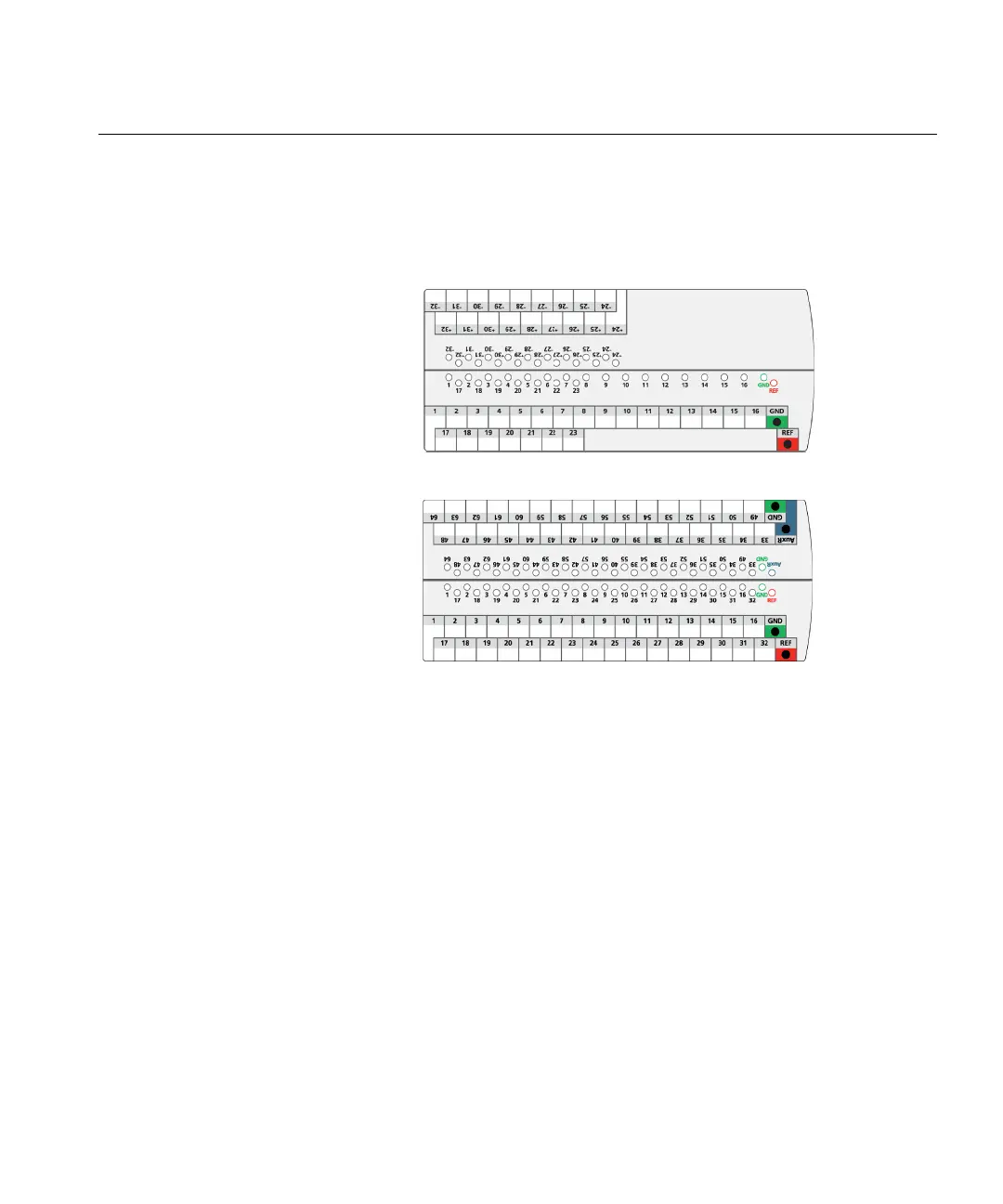

Figure 1: 32 channel electrode label.
Figure 2: 64 channel electrode label.
NOTE: The two grounds are linked together in the Nicolet EEGwireless32/64
amplifier. You do not need to provide two grounds, but they are available for
redundancy. The auxiliary reference is currently disabled, but will be functional in
future releases.
Headbox dry erase
label information
• Apply the label to the back of the Headbox.
• The overlay is removable and reusable.
• Use only dry erase markers & cleaners on overlay.
• DO NOT use permanent markers.
