Attaching the garment
Ensure proper fit before using the
garment to guard against injury.
Option 1 - Without optional second battery
This option straps the Nicolet EEGwireless32/64
amplifier, headbox, battery pouch and electrode
sleeve to the patient.
Attach the garment to the patient
1. Clip the shoulder straps to the bottom fastening
loop (R1) for the right shoulder (Figure 1).
2. Hang the shoulder strap assembly over the
patient’s shoulder and clip the other end of the
shoulder strap to the top fastening loop (R2).
3. Repeat steps 1 (L1) and 2 (L2) for the left
shoulder strap.
4. Feed the electrode leads through the electrode
sleeve (4).
5. Adjust the straps as necessary for a snug fit.
Attach the optional belt to the patient
1. Clip the belt to either the bottom (B1) or top (T1)
fastening loop as shown in Figure 2.
2. Wrap the belt behind the patient.
3. Clip the belt to the bottom (B2) or top (T2)
fastening loop.
4. Adjust the belt as necessary for a snug fit.

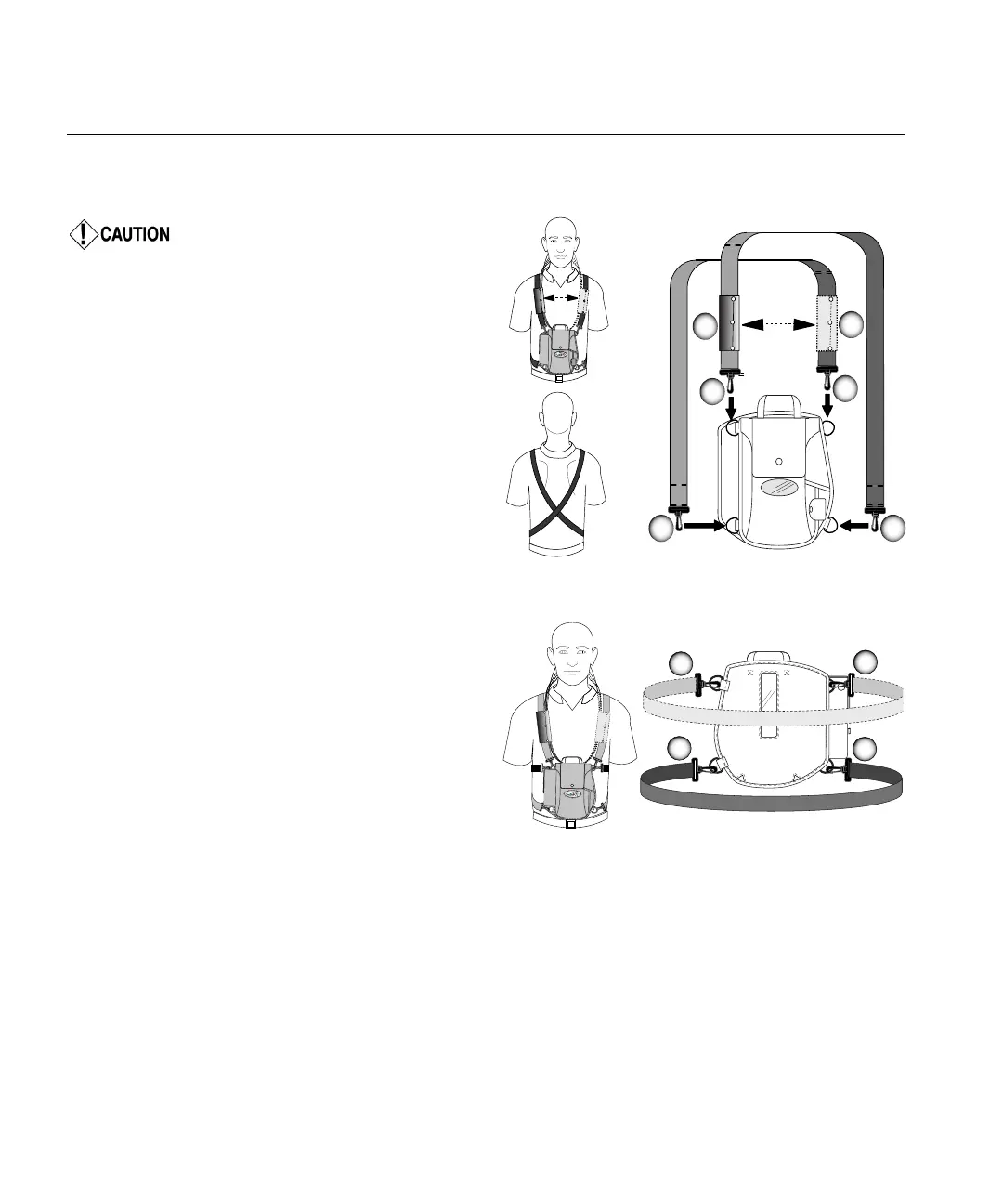

Figure 1: Shoulder straps.
Figure 2: Belt.
