natus Nicolet EEGwireless32 User Manual

April 27, 2015 3-9

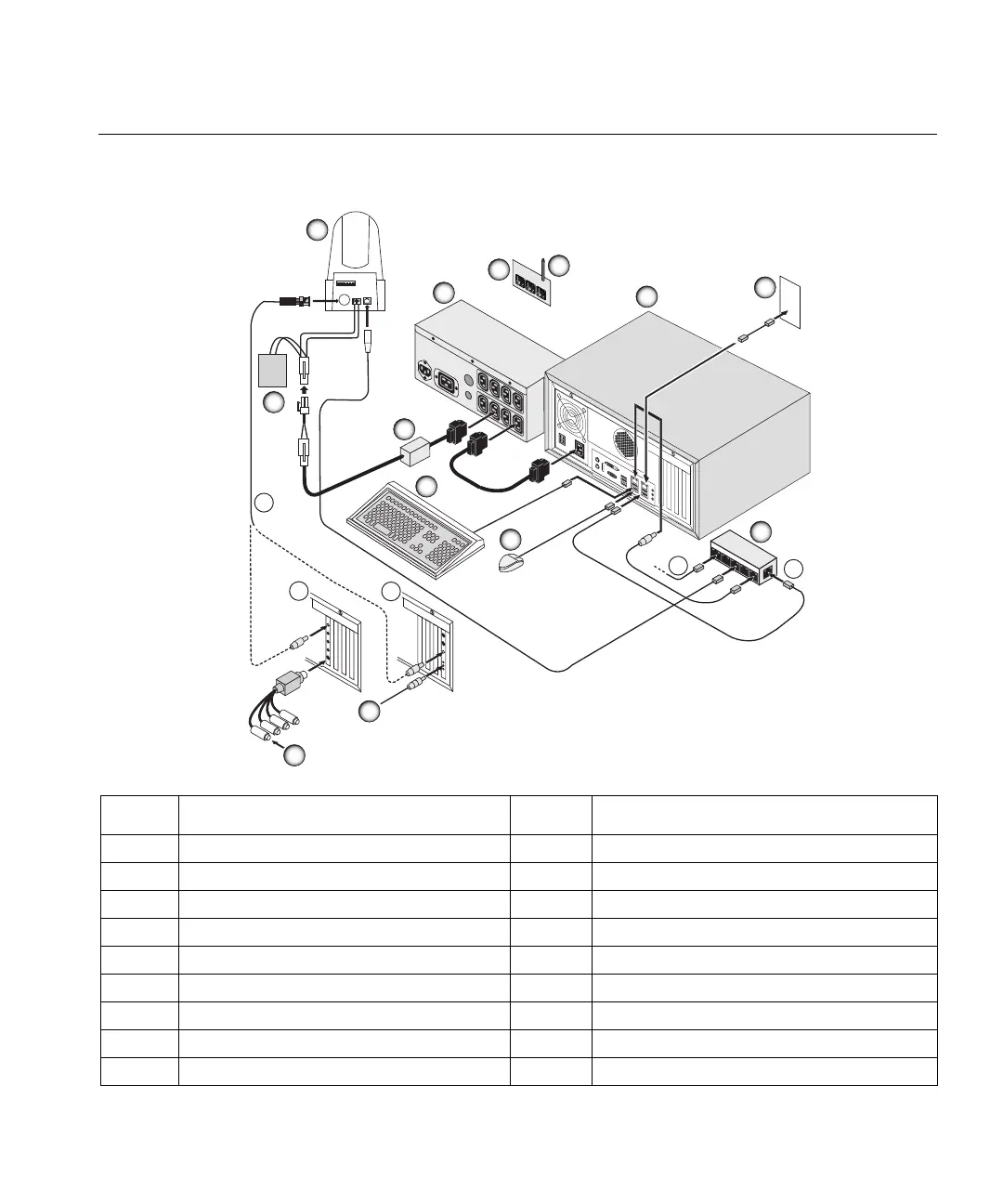

EEGwireless32/64 Connections
Cabling the computer
12345
1
A
B
C
D
E
F
H
I
J
K
L
1
2
3
4
G
G
2
3
4
5
with video options
Legend Description Legend Description
A
Isolation transformer
J
Camera power supply
B
Access point (Wireless Amplifier option only)
K
IR Illuminator (option)
C
Antenna
L
Camera (option)
D
Computer
E
Ethernet to hospital network wallplate
1
From wired amplifier
F
Network switch
2
Connect to USB port for power
G
Audio
3
Digital Video - to Option 1 (4) or Option 2 (5)
H
Mouse
4
Digital Video Option 1
I
Keyboard
5
Digital Video Option 2
