natus Nicolet EEGwireless32 User Manual

Nicolet Systems
3-6 April 27, 2015

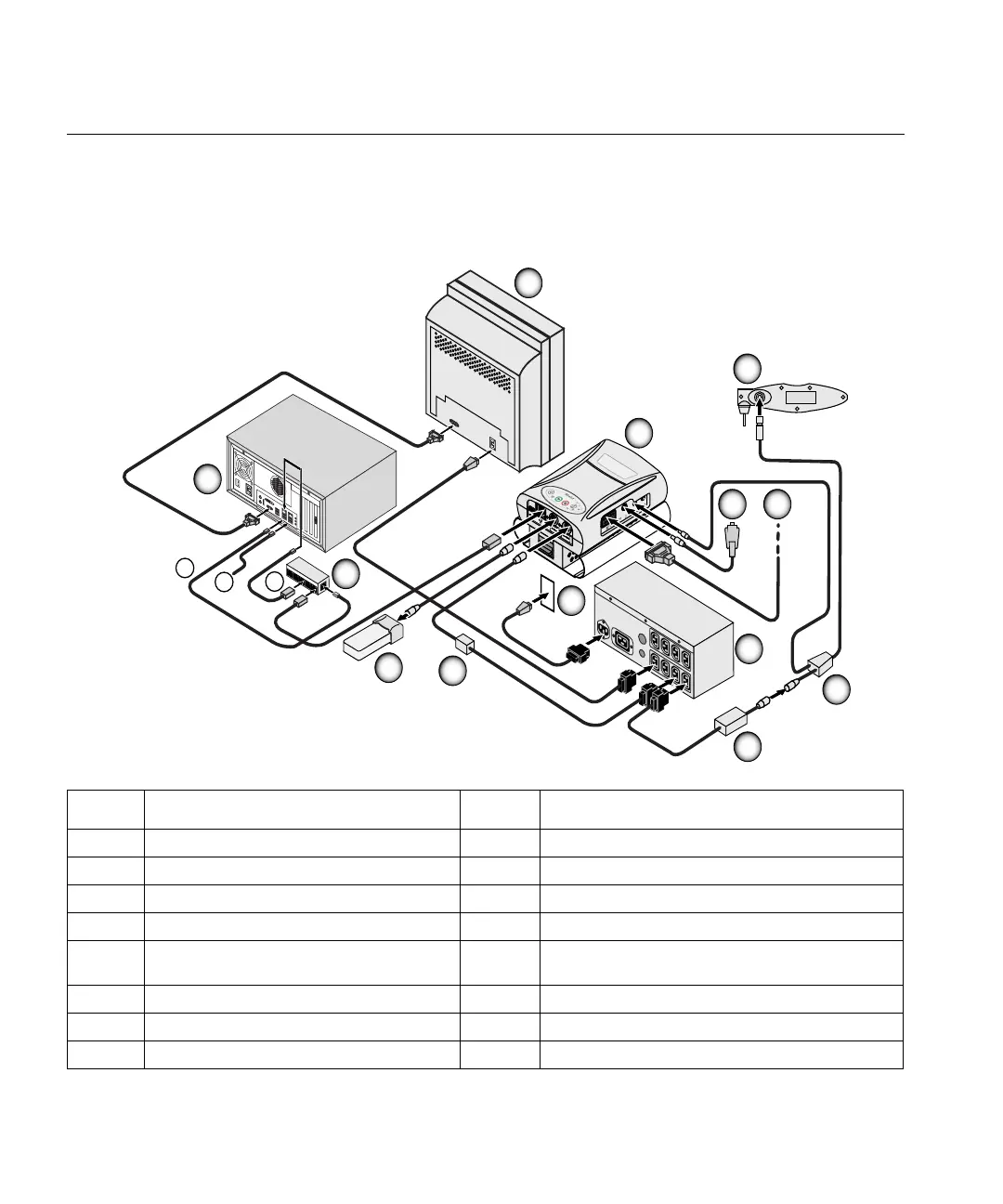

Cabling the cart based system, wired network communication to a
desktop computer with power supply and battery (cart mount, computer
peripherals not shown)
Nic
olet wir
el
ess
EEG
3
2A
12345
1
2
3
A
B
C D
E
F
G
H
I
J
K
L
M
Legend Description Legend Description
A
Amplifier
I
Network switch
B
Photic strobe (option)
J
Computer
C
Event button (option)
K
Monitor
D
SpO2 (option)
L
Medical grade power supply (PSU-EEG64)
E
Isolation transformer (Required with a Desktop
computer in a patient room)
M
Photic cable
F
Hospital mains
1
Connect to USB Port for power
G
Medical grade power supply (PSU-EEG64)
2
Connect to LAN Port
H
Battery with charger (Nicolet CHG1)
3
Connect to hospital network
