April 27, 2015 2-7
Garment
Option 2 - With optional second battery
This option straps the Nicolet EEGwireless32/64
amplifier, headbox, battery pouch, electrode sleeve
and optional second battery to the patient.
Attach the garment to the patient
1. Clip the shoulder straps to the bottom fastening
loop (R1) for the right shoulder (Figure 1).
2. Hang the shoulder strap assembly over the
patient’s shoulder and clip the other end of the
shoulder strap to the top fastening loop (R2).
3. Repeat steps 1 (L1) and 2 (L2) for the left
shoulder strap.
4. Feed the electrode leads through the electrode
sleeve (4).
5. Adjust the straps as necessary for a snug fit.
Attach the optional second battery
NOTE: The belt battery can be the primary battery.
1. Feed the belt through the belt loop (1) on the back
of the battery pouch (Figure 2).
2. Clip the belt strap to the bottom fastening loop (2).
3. Wrap the belt around the patient’s waist and clip
the belt to the other fastening loop (3).
4. Connect the battery cable to the optional second
battery (4).
5. Adjust the belt as necessary for a snug fit.

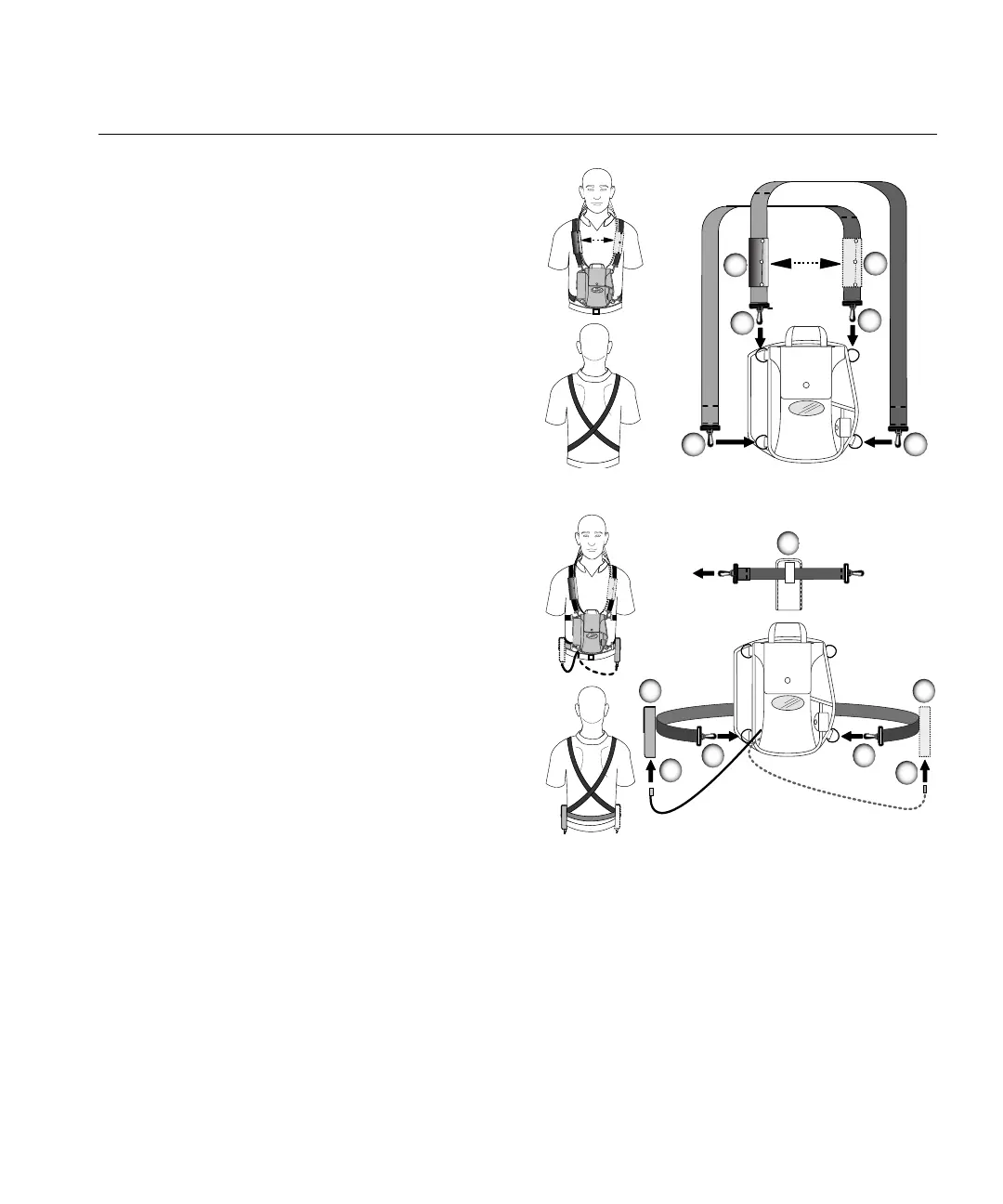

Figure 1: Shoulder straps.
Figure 2: Optional second battery.
2
3
4
4
1 1
1
4
To Next Page
