2-4 BenchMike Pro 2025/2050 & Z-Mike Pro 4025/4050 Instruction Handbook: Installation
2.2.2 Model 2050

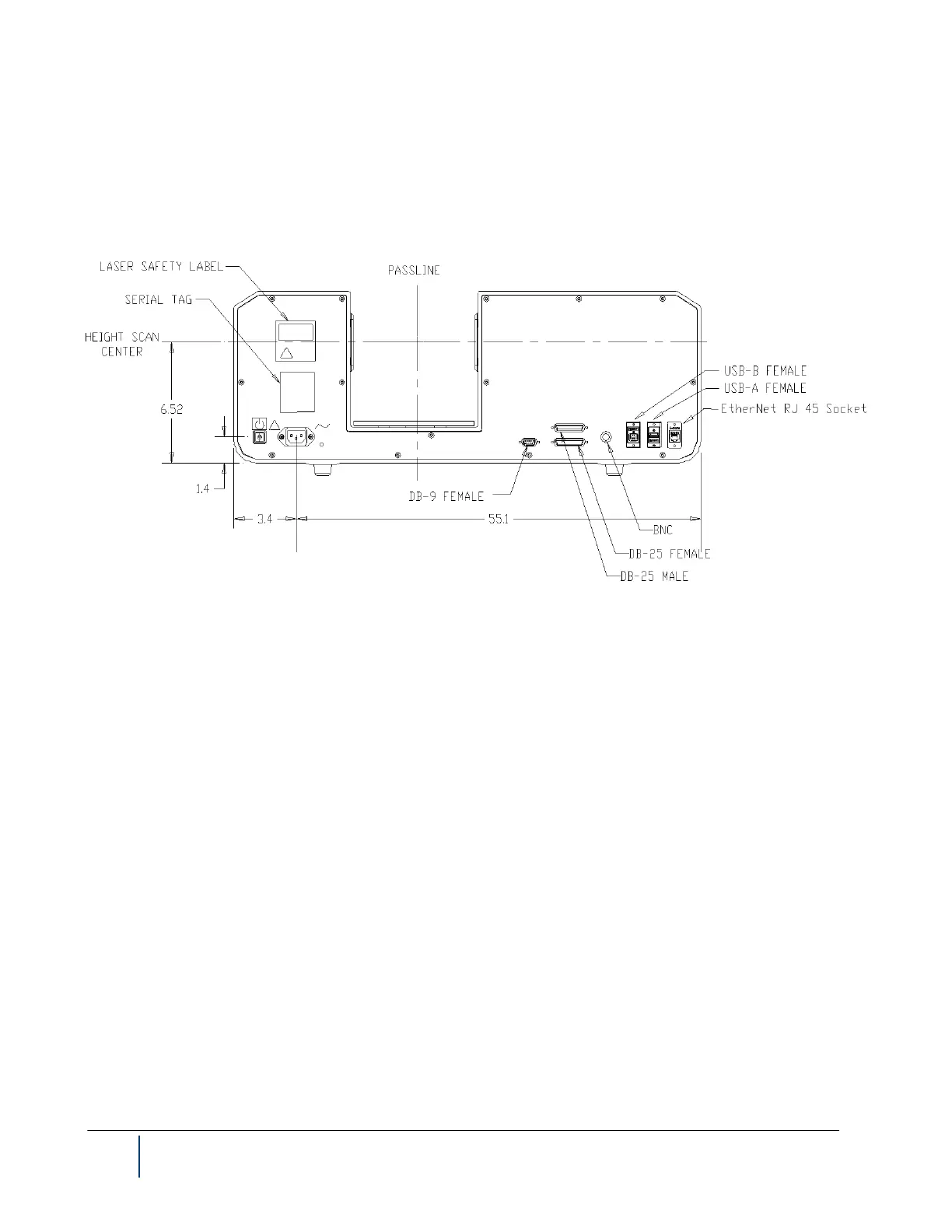

2.2.2.1 Outline Drawing
Note: Dimensions are in mm (inches)
Note: mount the universal mounting plate with the -20 in the lower left corner (as seen looking downward from the
operator’s position) of the BenchMike Pro’s measurement area.
