NDC BenchMike Pro User Manual

BenchMike Pro 2025/2050 & Z-Mike Pro 4025/4050 Instruction Handbook: Installation 2-9

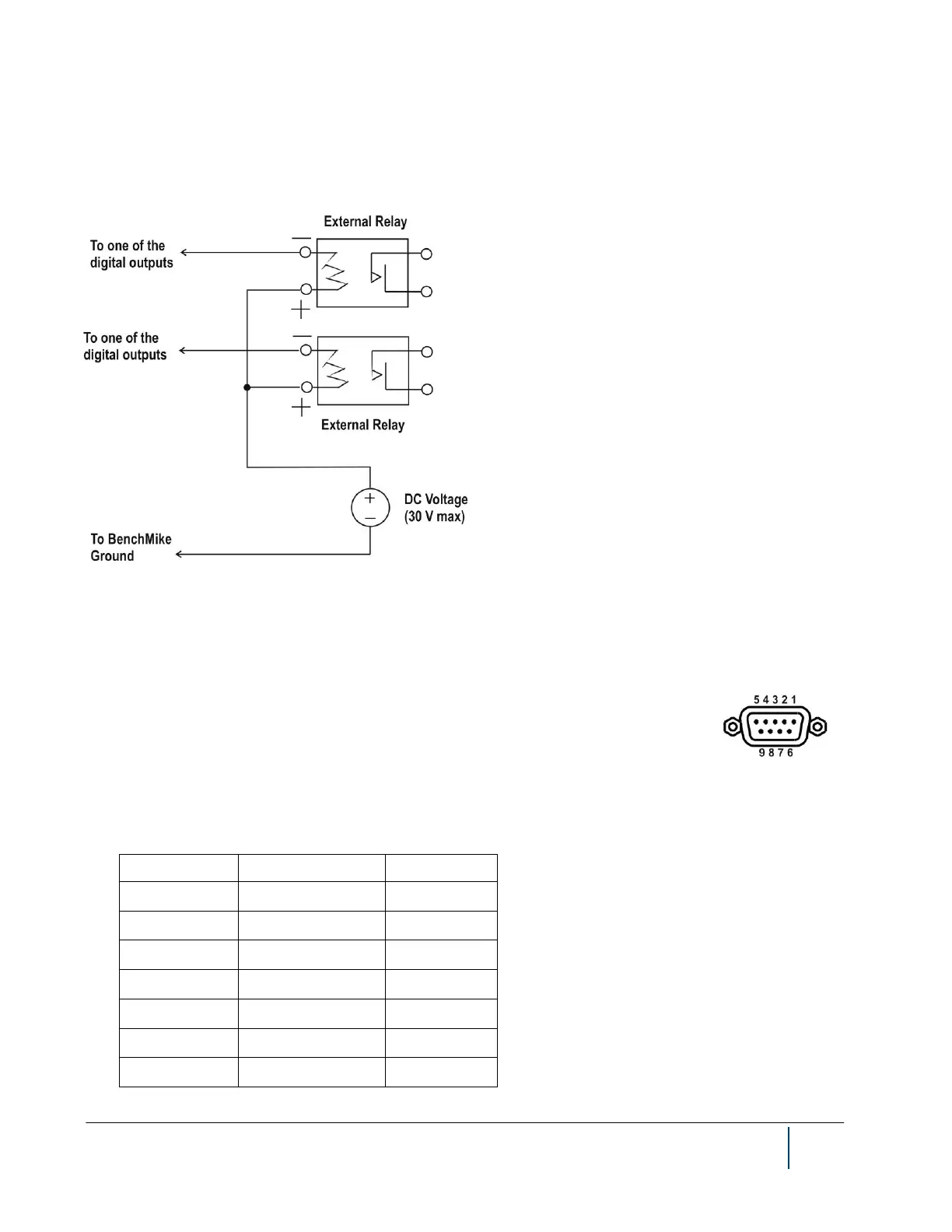

2.3.5 Connecting to Digital Outputs with an External Supply
Consult the diagram below to connect digital outputs via an external supply.
See the description of the system functions for software configuration of digital outputs for details.
2.3.6 Serial Connector
The BenchMike Pro has one standard serial port. This port supports RS232 interfaces
and baud rates up to 38.4 Kbaud. Handshaking protocol options are RTS/CTS and none.
Data items available for transmission are from the Data menus. Data format options such
as Labels, Headers, Delimiters, and Terminators as well as data flow options are available
for selection from the Measure menus. DB-9 connectors are used for these ports.
2.3.6.1 Serial Connector (#1) Pin-out
Pin Number
Function
Direction
1
Frame ground
—
2
Send data
Output
3
Receive data
Input
5
Signal ground
—
6
Data set ready
Output
7
Request to send
Input
8
Clear to send
Output
