BenchMike Pro 2025/2050 & Z-Mike Pro 4025/4050 Instruction Handbook: Setup 4-5
be transmitted is selected from Setup System Serial, under the Assignment tab, by checking the Send Data
box.
The Set Floating Nominal allows you to set floating nominal to the current reading. See Floating Nominal in the
Setup section, under Measurement Functions.
When the Zero the Slide Fixture command line is selected, you will be asked to confirm if you really want to zero
the fixture position.
4.3 Feature Icon

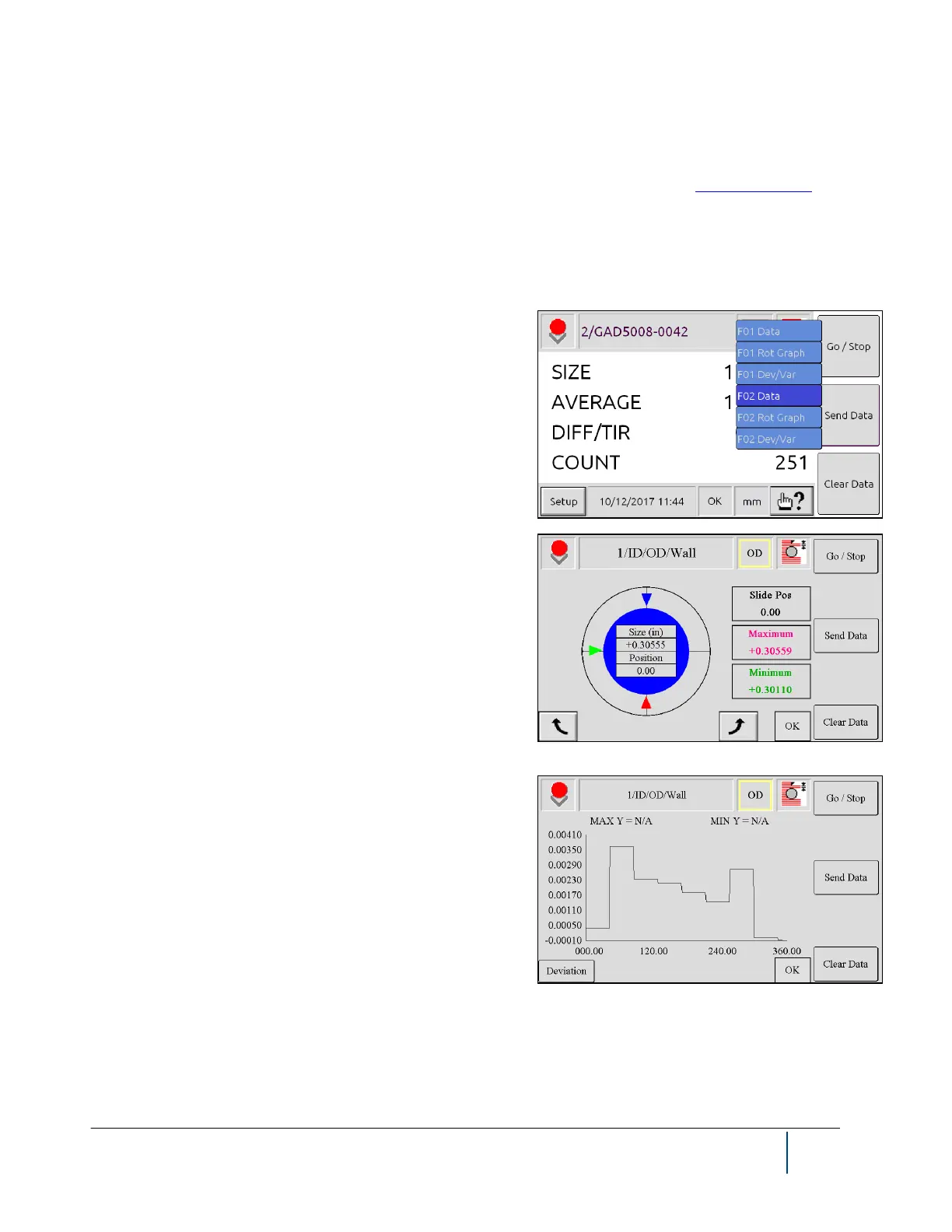

Touch the Feature icon in the upper right hand corner of the
screen to display the menu shown.
If you are using an Intelligent Fixture, you can also create Devi-
ation/Variation Graphs. If you have a rotary fixture, you can also
create a Rotary Graph (shown). If you do not have sufficient
data for the Deviation or Variation graphs (shown as Dev/Var),
those options will appear grayed out.
To move between the different graphs, touch the Feature icon
and select the desired view.
Deviation:
This graph shows the deviation from nominal at each position.
For each position “deviation” is the measured size minus the
nominal size entered by the user. The default nominal is 0.0.
