4-16 BenchMike Pro 2025/2050 & Z-Mike Pro 4025/4050 Instruction Handbook: Setup
4.8 Settings Functions

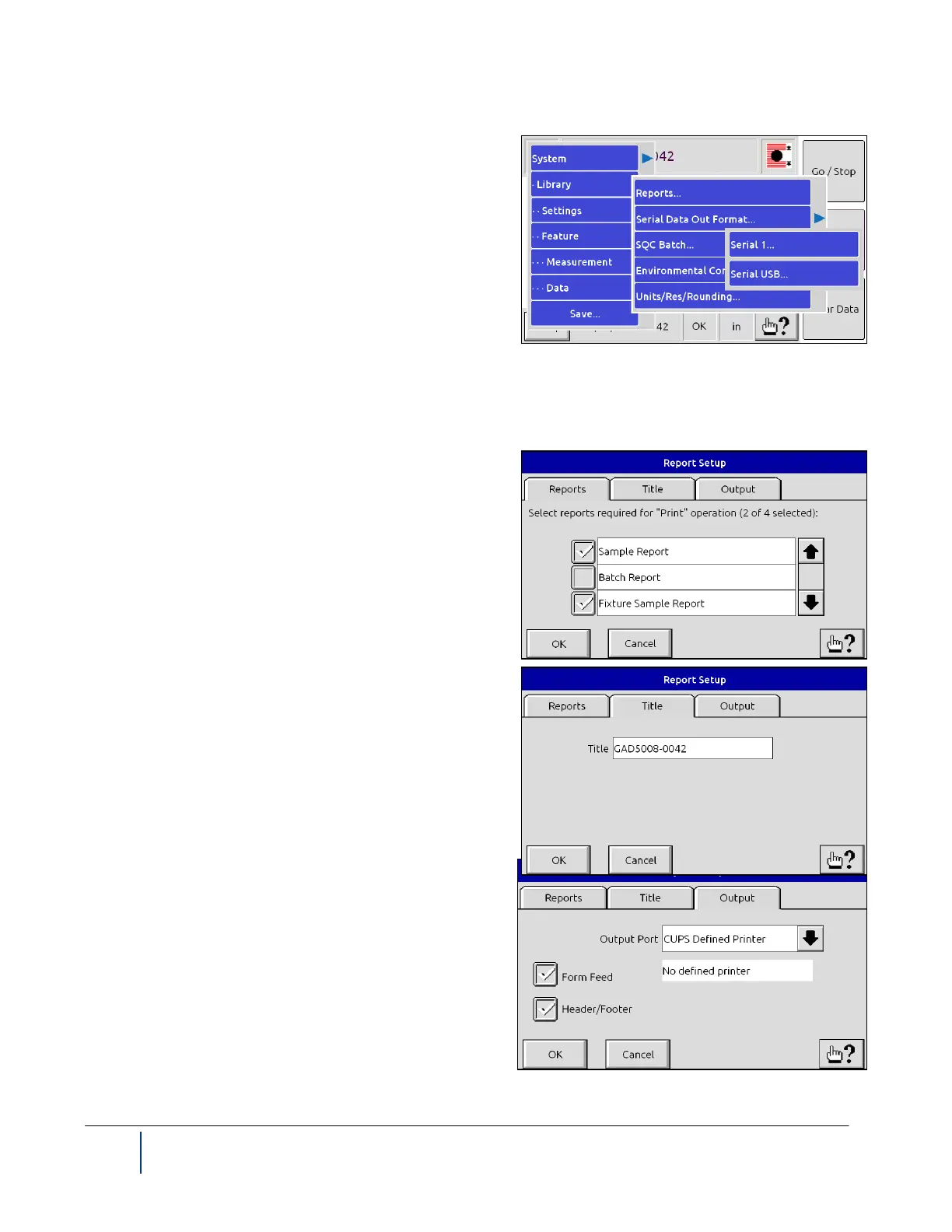

Touch Settings from the Setup menu to display the menu
shown. This menu contains settings that are unique to each
library.
NOTE: Settings commands are unique to each library but are
common to all features within a library.
To access settings for printed reports, select Setup, then
Settings, and then Reports. Three pages allow you to define
settings for report output via a dot matrix or inkjet printer.
From the three tabs under Reports, you can 1) specify the type of report to be generated; 2) enter a title; and 3)
define the output port to be used to enable/disable the report form feed and report Header/Footer functions.
NOTE: Fixture Sample Reports and Fixture Part Reports are
only available when you are using an Intelligent Fixture.
There are four types of reports available from this menu:
Sample Report
Batch Report
Fixture Sample Report
Fixture Batch Report
Use this Title tab to enter the desired title of your data report.
The key difference between Batch and Sample Reports is
that Sample Reports can only be printed one time per sam-
ple, while Batch Reports can be printed multiple times by
pressing the Print key.
The Output tab allows you to set up your external printer for
report printing. Sample and Batch Reports contain data from
a single part measurement. If Continuous measurements are
selected for Sample and Batch Reports (under the Meas-
urement Setup Type tab), measurements will be taken until
the Print key is touched or until the Reading Count equals
the Batch Count value.
NOTE: You can select the Serial 1 Port, Serial USB, or USB
Printer for report printout.
To Next Page
