BenchMike Pro 2025/2050 & Z-Mike Pro 4025/4050 Instruction Handbook: Installation 2-11
16
Digital input #5
17
Digital input #6
18
Digital input #7
19
Digital input #8
20
Signal ground
21
Quad encoder #1 input A
22
Quad encoder #1 input B
23
Quad encoder #2 input A
24
Quad encoder #2 input B
25
+12 V
2.3.11 Connecting to a Quadrature Encoder

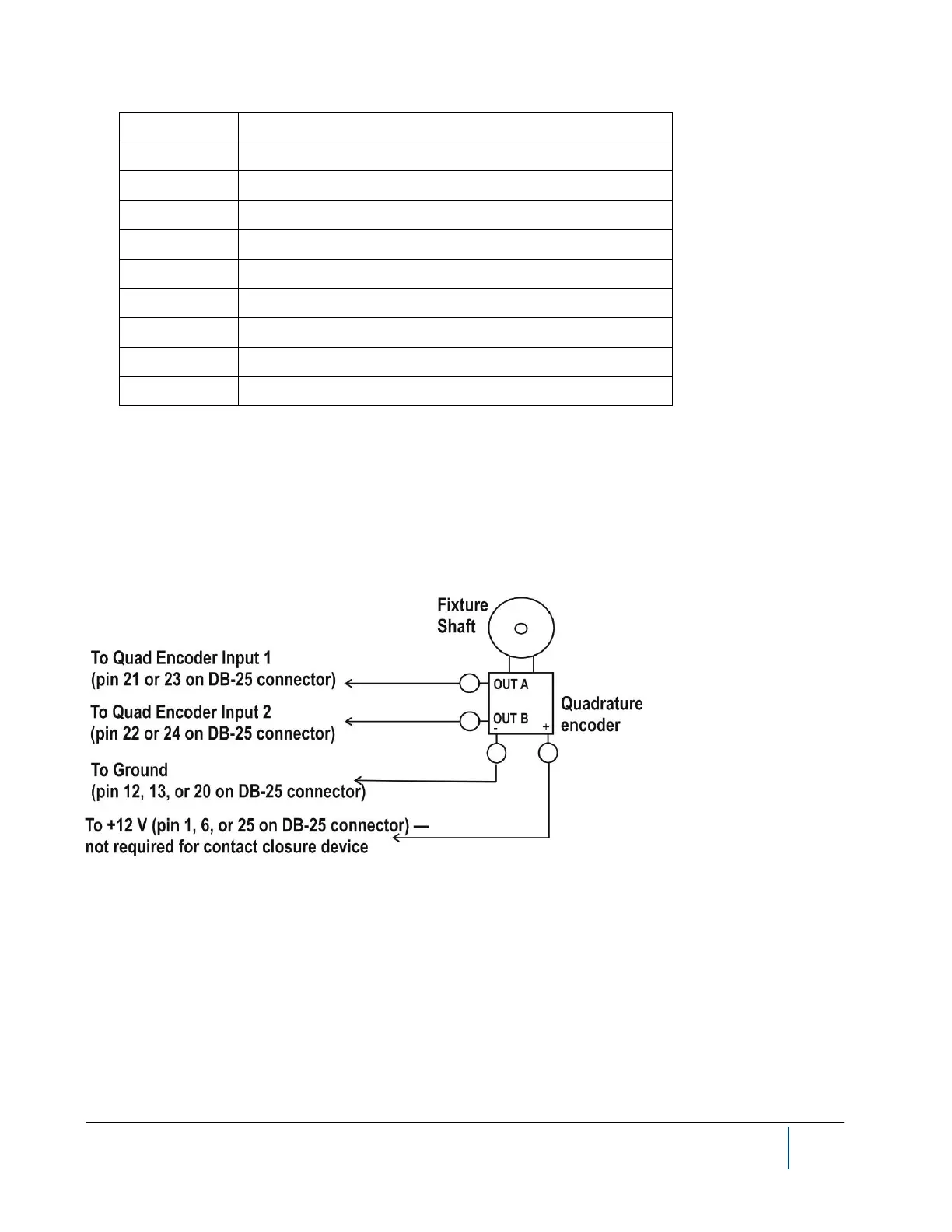

Consult the diagram below to connect a quadrature encoder to your BenchMike Pro.
DO NOT CONNECT a negative voltage to any quadrature encoder input.
See the description of the system functions for software configuration of a fixture for details.
