BenchMike Pro 2025/2050 & Z-Mike Pro 4025/4050 Instruction Handbook: Advanced Capabilities 5-7
5.2.2 Tolerance and Limit Checking Display Capabilities
If tolerance or limit checking is defined for a data item and that item is not on the screen when an alarm occurs,
that item will automatically be scrolled into view.
5.3 Custom Measurements

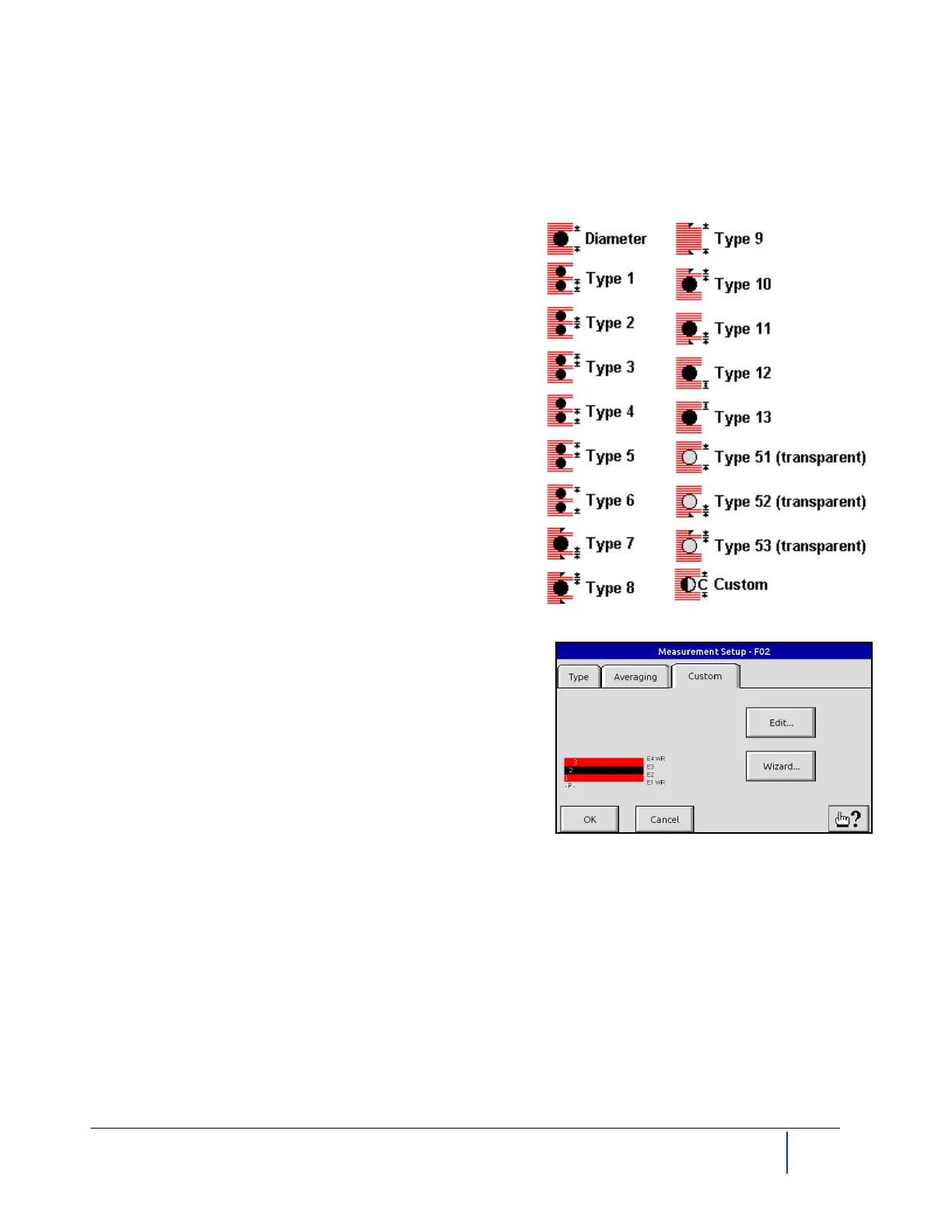

The BenchMike Pro has eighteen measurement types, as
shown. When you wish to measure or calculate a dimension
other than the first seventeen in this list, you can use the Cus-
tom Measurement Type to define your own.
To access the Custom Measurement Wizard, select Setup, then
Measure, then Measurement, and then select the Custom tab.
The screen shown will appear.
