2-8 BenchMike Pro 2025/2050 & Z-Mike Pro 4025/4050 Instruction Handbook: Installation

2.3.3 Connecting to Digital Inputs

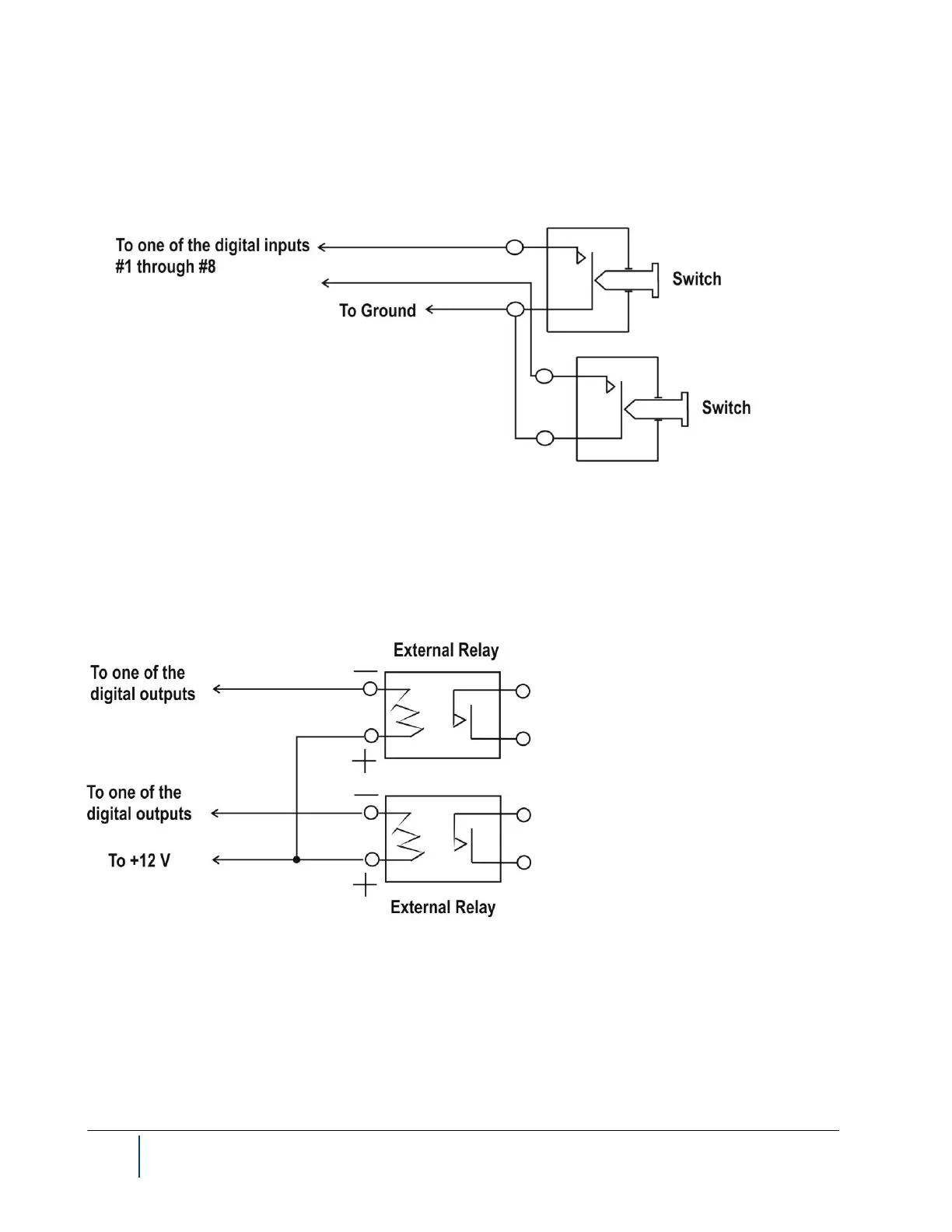

Consult the diagram below to connect digital inputs to your BenchMike Pro.

See the description of system functions for software configuration of digital inputs for details.

2.3.4 Connecting to Digital Outputs with the BenchMike Pro +12V

Supply

Consult the diagram below to connect digital outputs via the BenchMike Pro’s +12 V supply.

See the description of the system functions for software configuration of digital outputs for details.
