BenchMike Pro 2025/2050 & Z-Mike Pro 4025/4050 Instruction Handbook: Installation 2-17
2.5 Adding a USB Printer
2.5.1 Requirements
The following are required to allow the BenchMike to print to a USB printer:
A USB printer must be plugged into the USB A-type connector on the rear of the BenchMike
The operator must have a PC with a web browser attached to the same network as the BenchMike.
2.5.2 Procedure

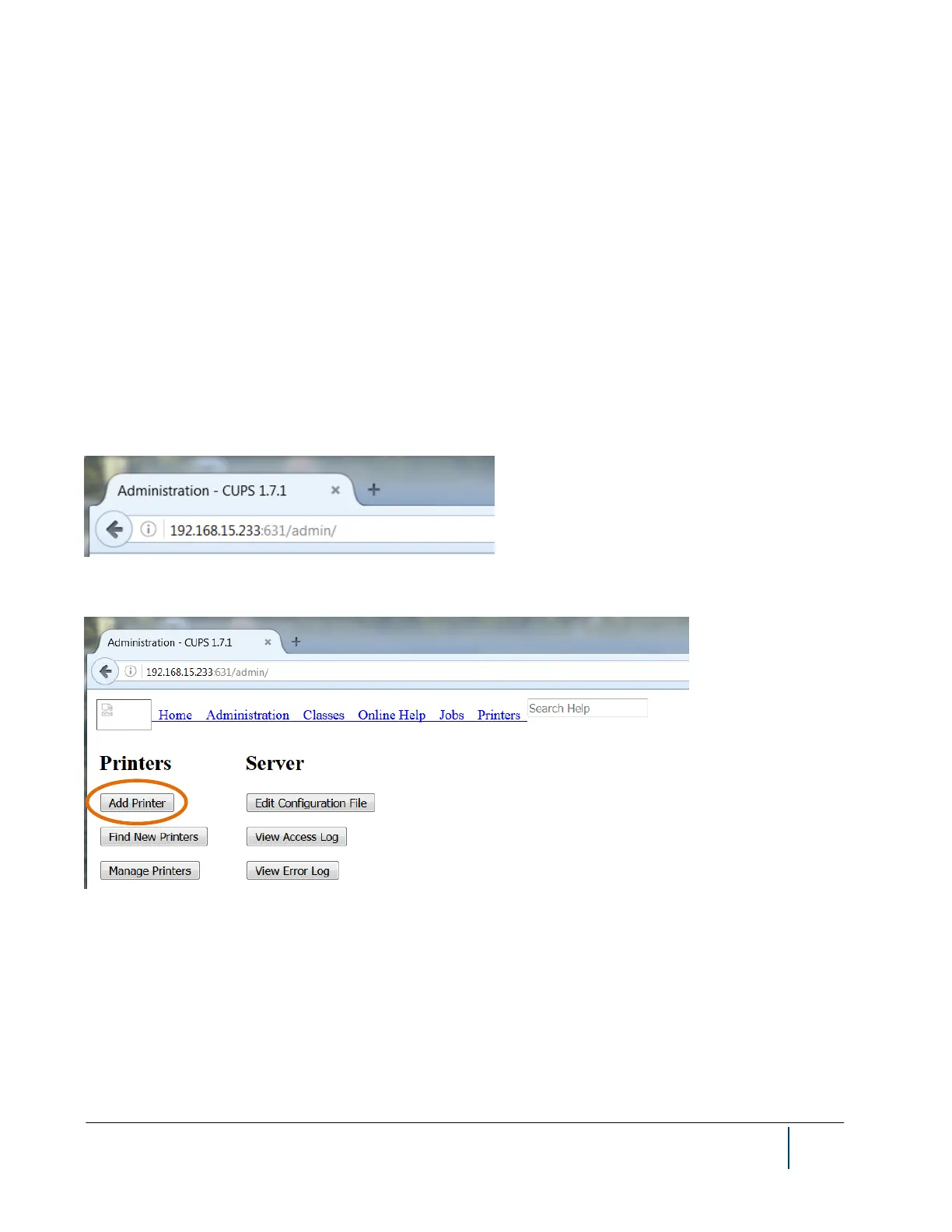

1. Open the browser on the PC, and navigate to the IP address of your BenchMike CUPS (Common Unix
Printing Service) server. For example, in this procedure, the BenchMike IP address is 192.168.15.233.
The address for CUPS web server on the BenchMike is: 192.168.15.233:631/admin/
2. In the resulting page, click the Add Printer button.
