3-8 BenchMike Pro 2025/2050 & Z-Mike Pro 4025/4050 Instruction Handbook: Workholding Fixtures

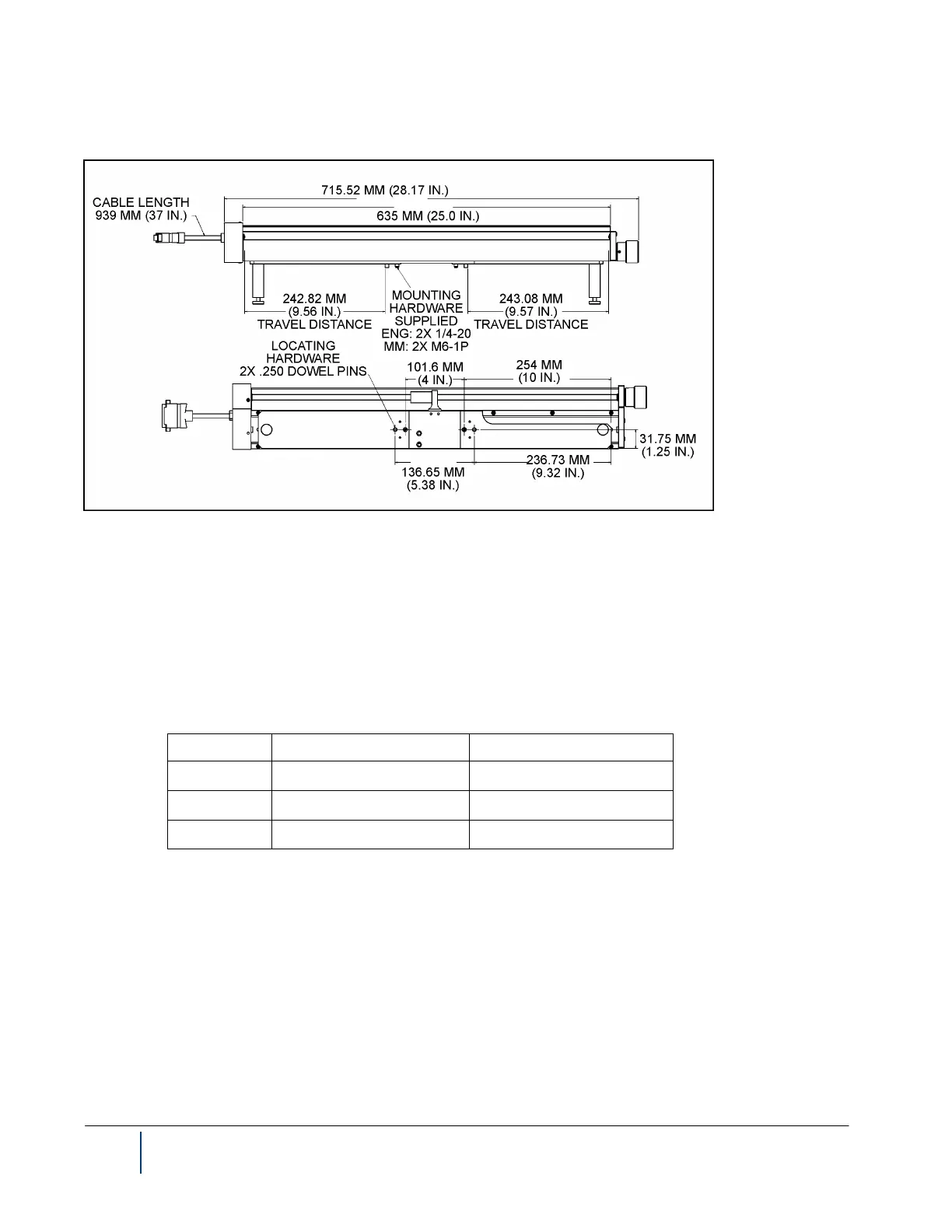

3.3.3.1 Drawing of the DRO Slide

Features of Adjustable Centers include:

 Pair of adjustable male centers that mate with the dovetail rail. One center is lever-operated and spring-

loaded for part loading.

 Hardened centers

 Centers diameter: 15.8 mm (0.625 in.)

Slide

18 in. Slide

282.45 mm (11.12 in.)

323.6 mm (12.74 in.)

25 in. Slide

460.25 mm (18.12 in.)

501.4 mm (19.74 in.)

32 in. Slide

638.05 mm (25.12 in.)

679.2 mm (26.74 in.)

 Adjustable Centers, mounted in the DRO Slide, will support a maximum weight equivalent to a 2-inch

steel bar of length A (table above).
