BenchMike Pro 2025/2050 & Z-Mike Pro 4025/4050 Instruction Handbook: Setup 4-35
The Limits option allows you to specify which (if any) of the
Warning and Reject Limits are displayed on the main meas-
urement display page or are transmitted to the serial port. Posi-
tive and Negative and Reject and Warning Limits can be
turned on and off individually.
The Tolerances option allows you to specify which (if any) of
the Warning and Reject Tolerances are displayed on the main
measurement display page or are transmitted to the serial port.
Positive and Negative Limits can be turned on and off individu-
ally.

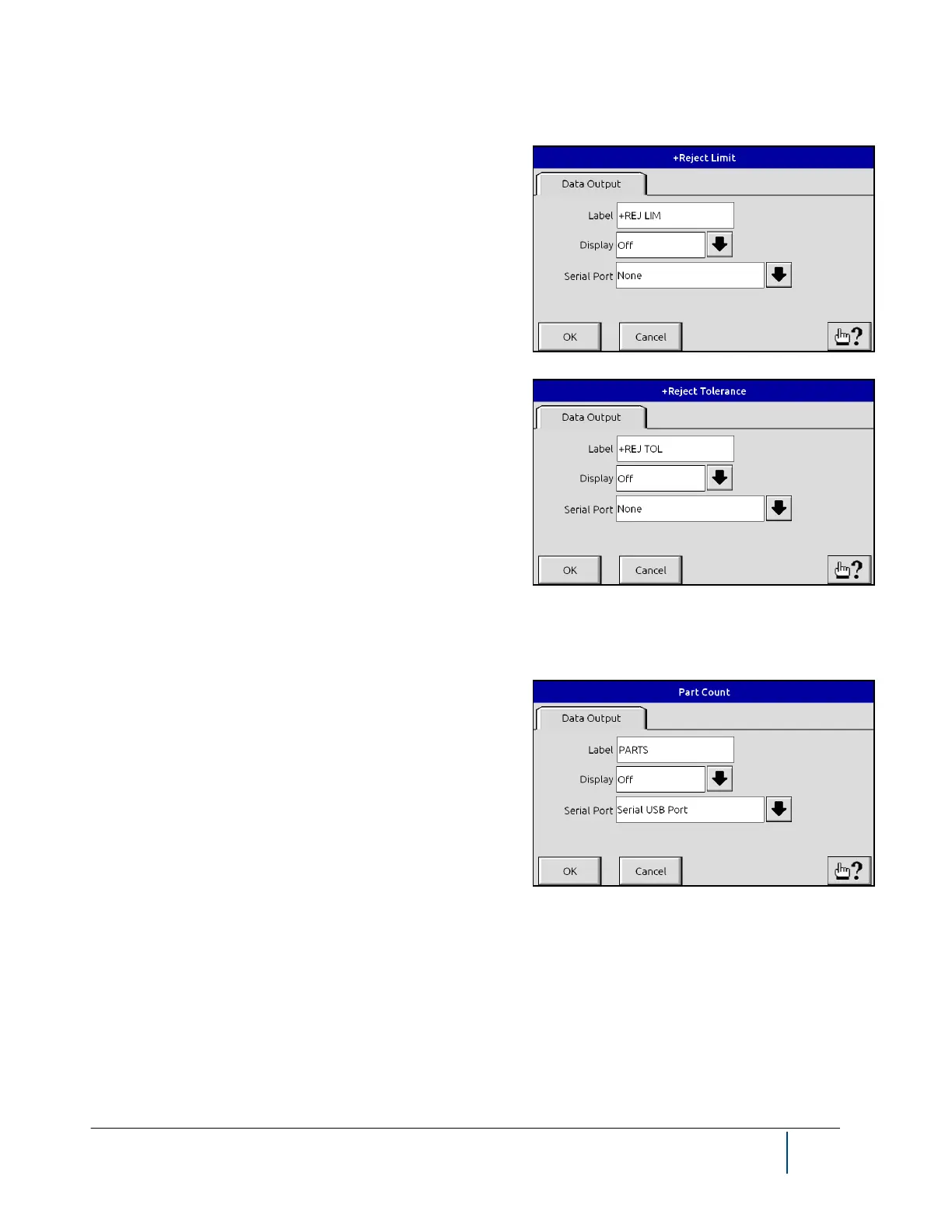

Note that individual pages are present for each item — +Reject
Tolerance, +Warning Tolerance, -Warning Tolerance, and -
Reject Tolerance — just as shown for the Warning and Reject
Limits.
NOTE: With the Serial Output drop-down box, you can transmit this data value via the serial #1 port or serial USB.
To set up the serial port for data transmission, see Settings - Serial Output Format and System- Serial for details.
The Part Count is used to display the number of parts that
have been measured since data was last cleared.
Note that if the Limits box is enabled (checked), limit checking is performed for Part Position and part Size. Only
one item can be used for limit checking at one time.
