6-28 CABLE TERMINATION
NWD-107460-02E Installation
Procedure 6-6 N-P Connector used for ODU IF IN/OUT
(Straight: N435(R0))
1 Insertion of parts
The clamp nut, the washer and the gasket are inserted in the cable.
2 Remove of jacket of cable, insertion of parts,
(1) Remove 13 mm of jacket only.
(2) The clamp1 is inserted as shown.
Note Do not damage the braided wire.
Tools
• knife, cutter, nipper, tweezers, file, measure,
clearance gauge, etc.
• spanner, torque spanner; 16 mm
Tools
•knife
• cutter
• measure, etc.

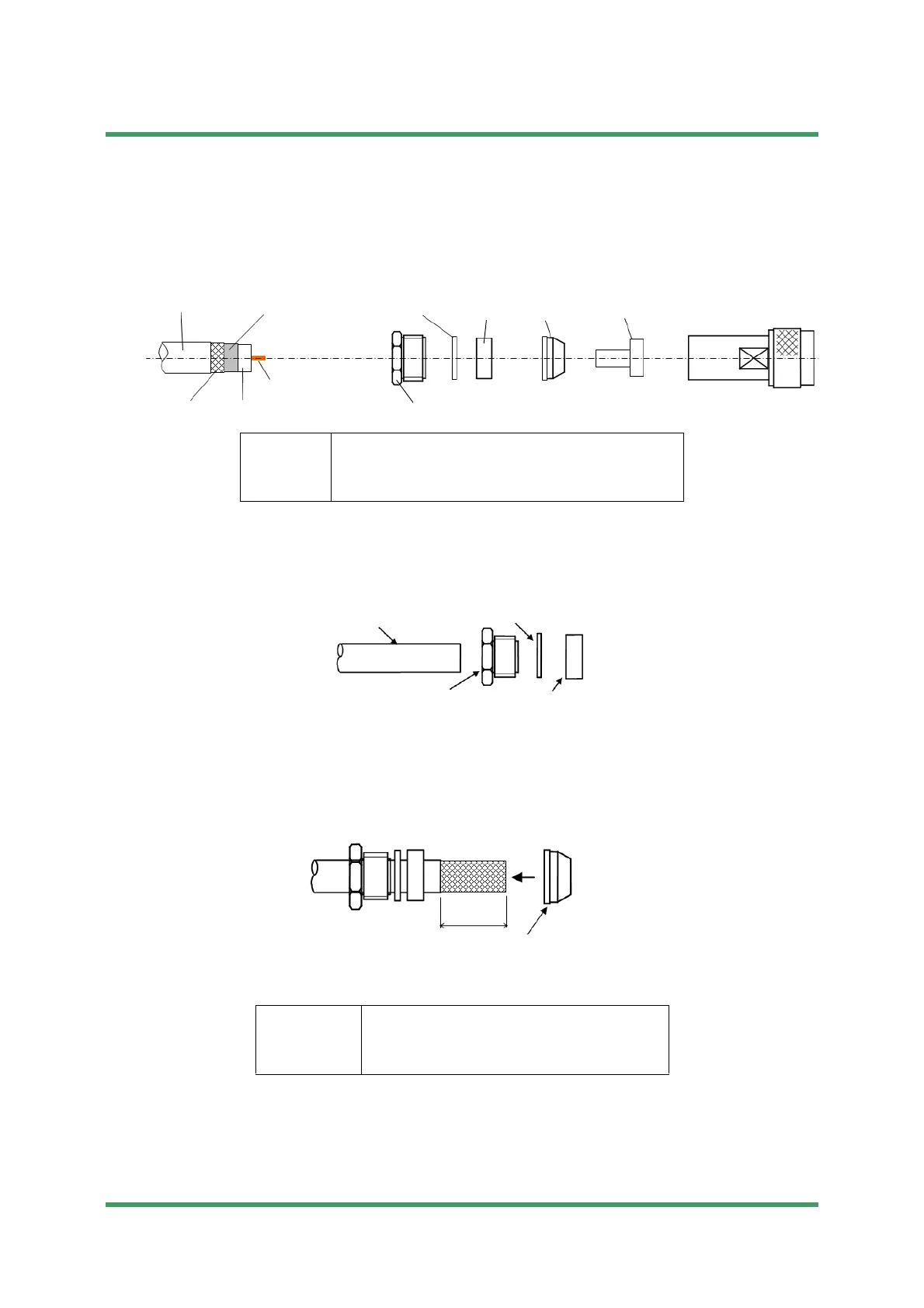

Outlines of parts
[Applicable cable: 5D-FB-E]
Cable jacket
Aluminum tape
Braided wire
Insulator
Center conductor
Washer
Clamp nut
Gasket Clamp1
Clamp2
Connector body
Cable
Clamp nut
Washer
Gasket
Submission Prohibited
NEC Internal Use Only
To Next Page
