NEC iPasolink 200 - Location of Adjusting Nuts and Bolts (RFS C-Mount Type Bracket)

10-8 ANTENNA ORIENTATION
NWD-107460-02E Installation

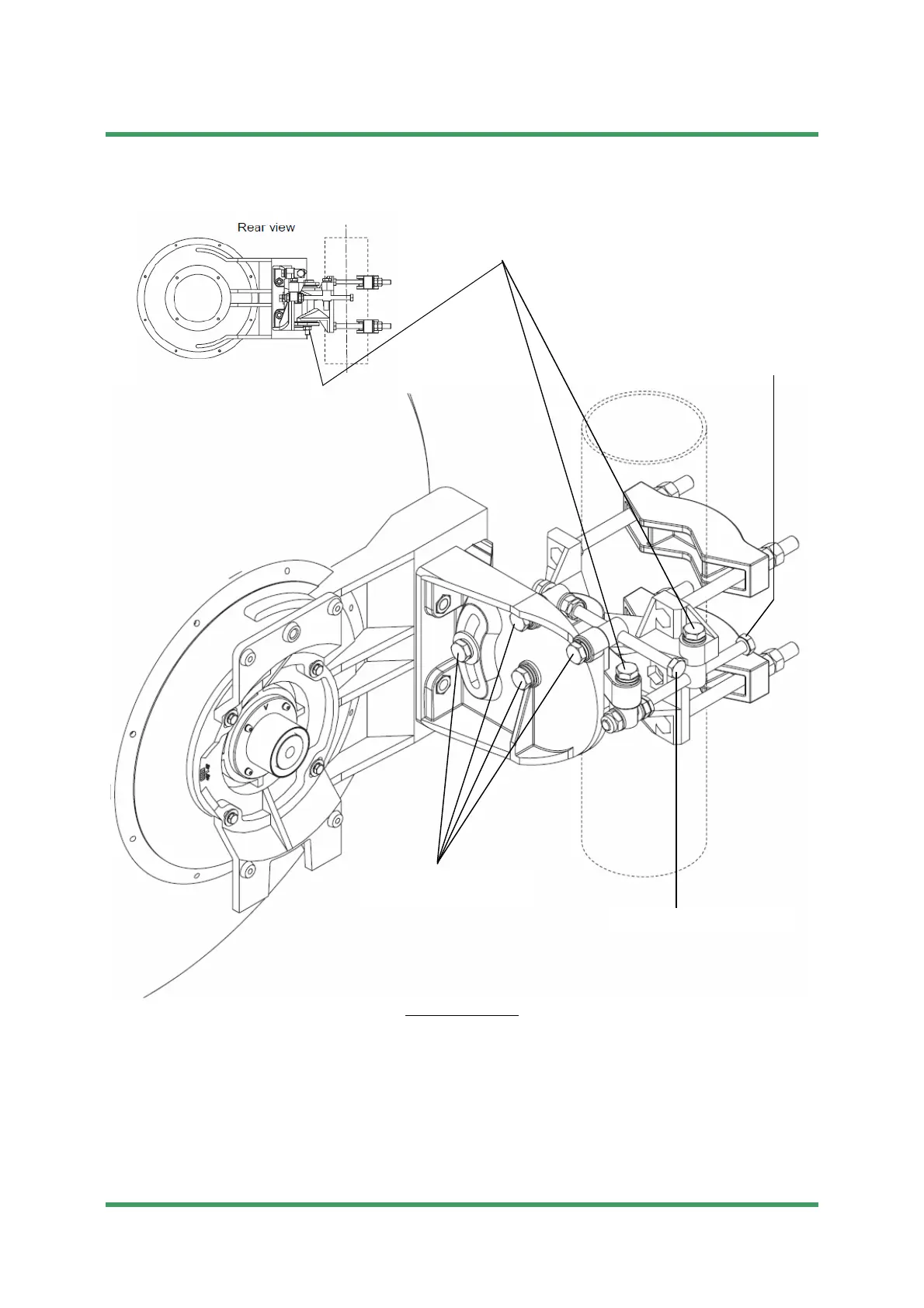

Fig. 10-4 Location of Adjusting Nuts and Bolts (RFS C-Mount type bracket)
1. Loosen (1/4 turn) bolts
for adjusting azimuth
0.6
φ m Antenna
3. Loosen (1/4 turn) bolts
for adjusting elevation.
2. Adjust azimuth.
4. Adjust elevation.
