NEC iPasolink 200 - Center Conductor Processing

CABLE TERMINATION 6-7
Installation NWD-107460-02E
4 Center conductor processing.

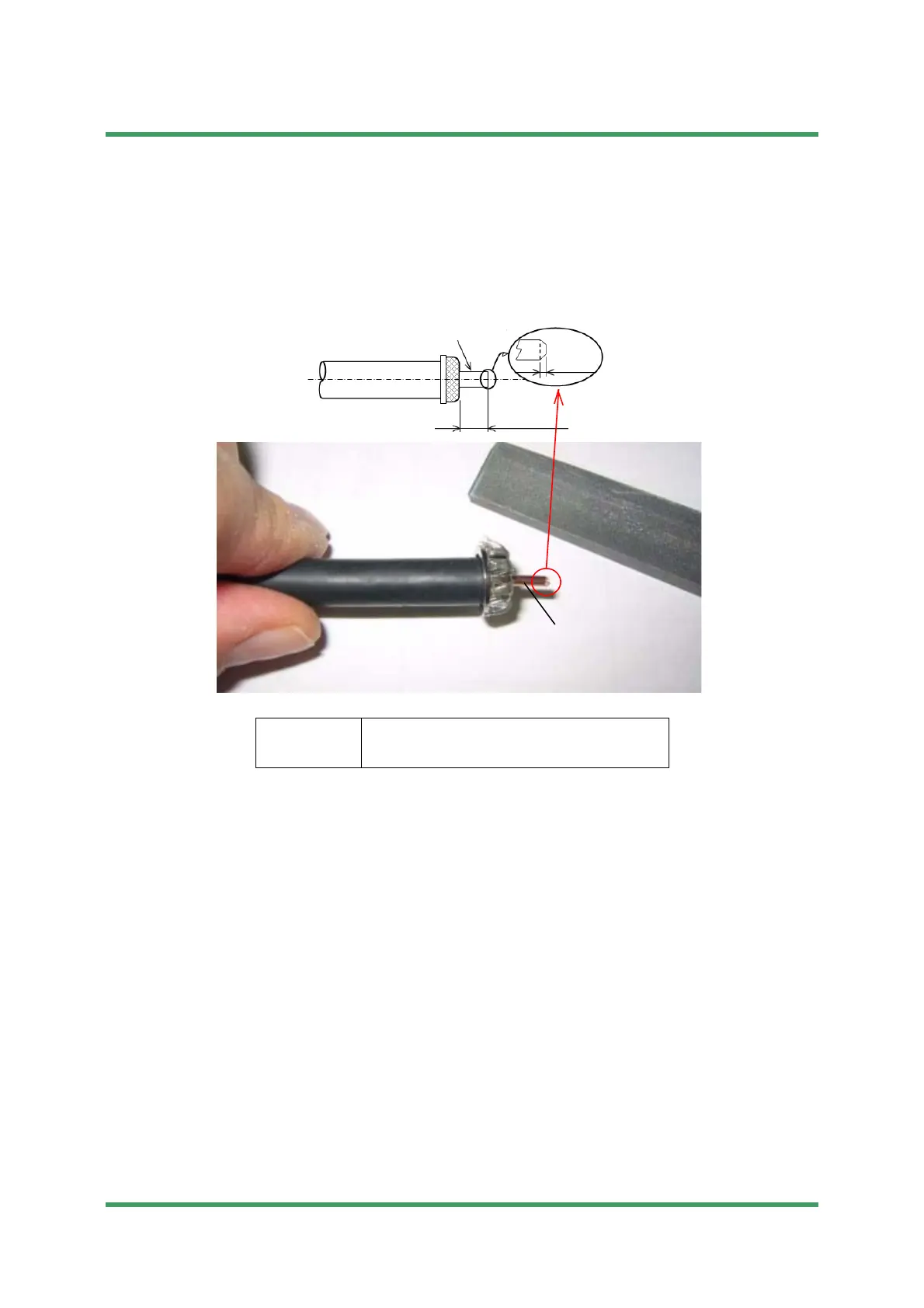

(1) Remove of the center conductor as shown.
(2) Chamfer the center conductor.
Note Do not damage the center conductor.(burr, etc.)
Tools
•nipper
• file, etc.
Center conductor
1 mm
6 mm ± 1
Center conductor
