NEC iPasolink 200 User Manual

ODU MOUNTING 5-51
Installation NWD-107460-02E

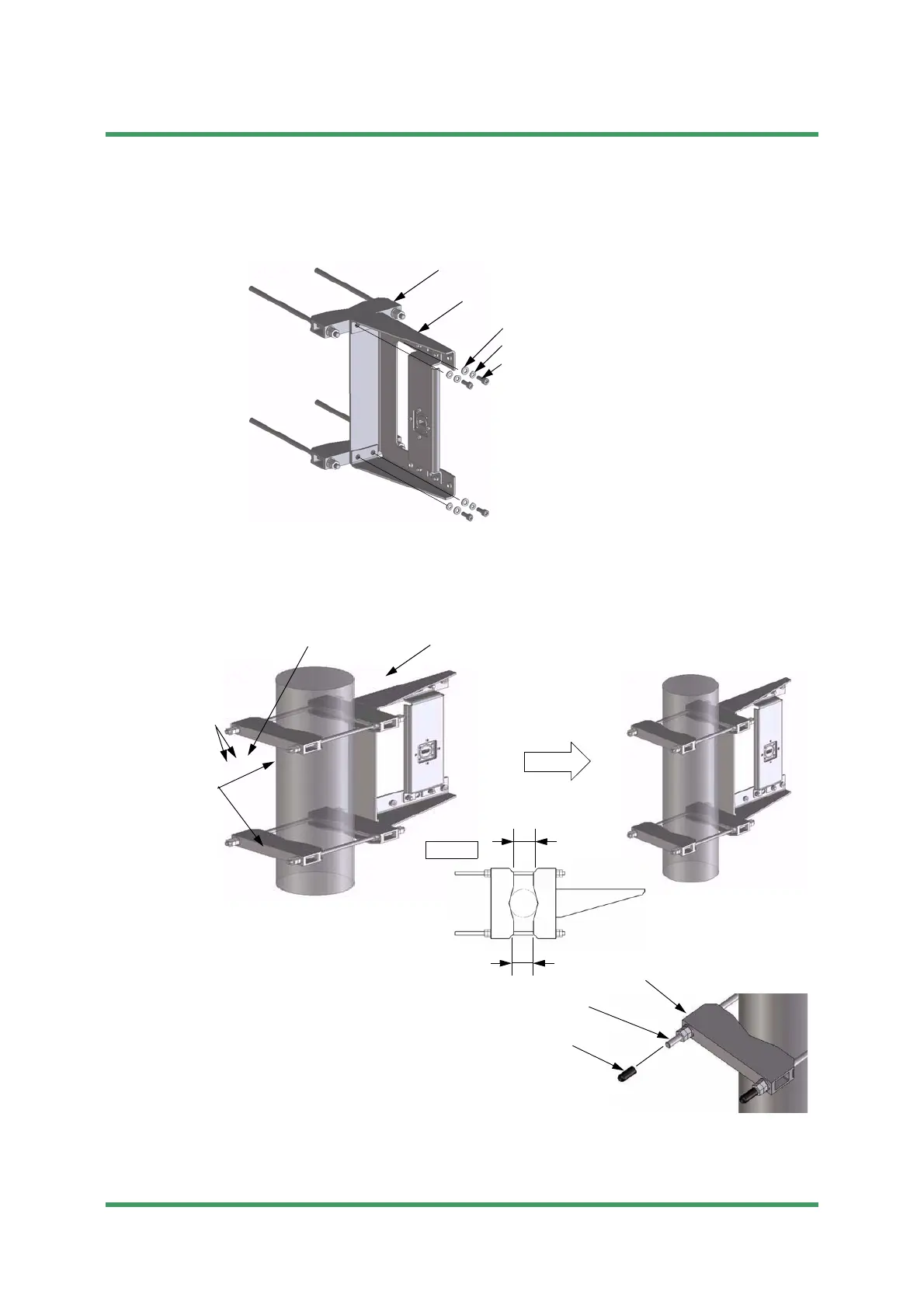

2 Fix the two Holder-1 to the Bracket at four bolts,
3 Mount the Bracket to the pole, point to the opposite station and tighten it with
four Stud bolts,
Assembly of the Bracket
Holder-1 Assembly
Bracket (with Adapter)
Flat Washer M6 (4 ea)
Spring Lock Washer M6 (4 ea)
Hexagon Socket Head Screw M6×16 (4 ea)
Note Tightening torque is
4 N·m ±10%.
Pole (φ 48.5 to 114.3 mm)
Flat washer M8 (4 ea)
Hexagon nut M8 (8 ea)
Note Tightening torque is
12 N·m ±10%.
Holder-2 (2 ea)
A = B
A
B
Installation to the Pole
Holder
Bolt end
Cap (4 ea)
Submission Prohibited
NEC Internal Use Only
