NEC iPasolink 200 - Attachment of ODU; 32;38 Ghz Band ODU Mounting with TX SPAN ATT

ODU MOUNTING 5-37
Installation NWD-107460-02E

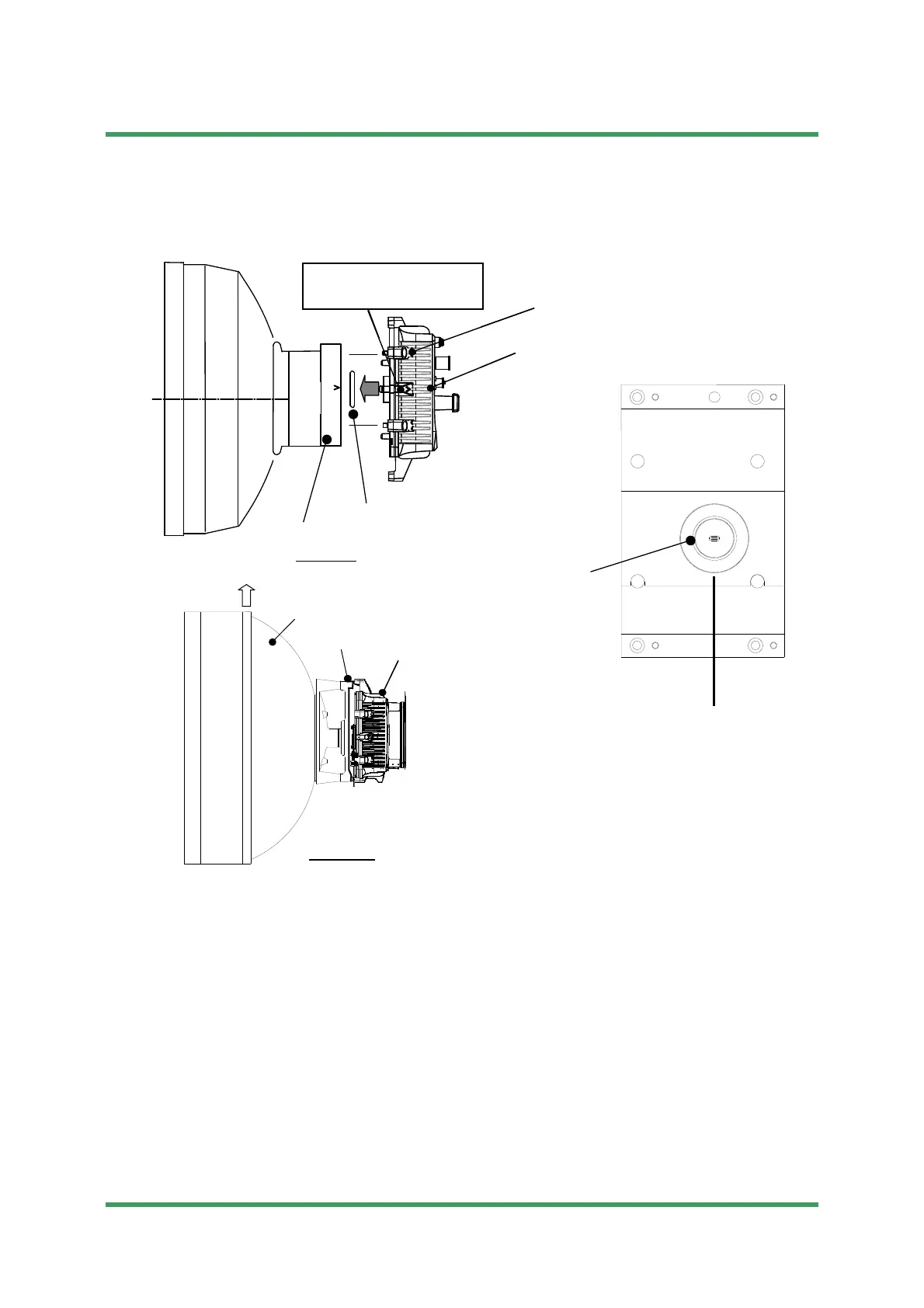

Attachment of ODU
Hexagon socket
head cap screw M6
(Supplied by NEC with ODU)
O-ring
(Packing)
O-ring
(Packing)
ODU connection unit
ODU
Top view
Side view
TX ATT
ODU
Antenna
TOP
TX ATT
ODU should be attached
by turning “V” up.
Note Tightening torque is 4.0 N·m ±10%.
32/38 GHz Band ODU Mounting with TX SPAN ATT (2/2)
38A
