CABLE TERMINATION 6-11
Installation NWD-107460-02E

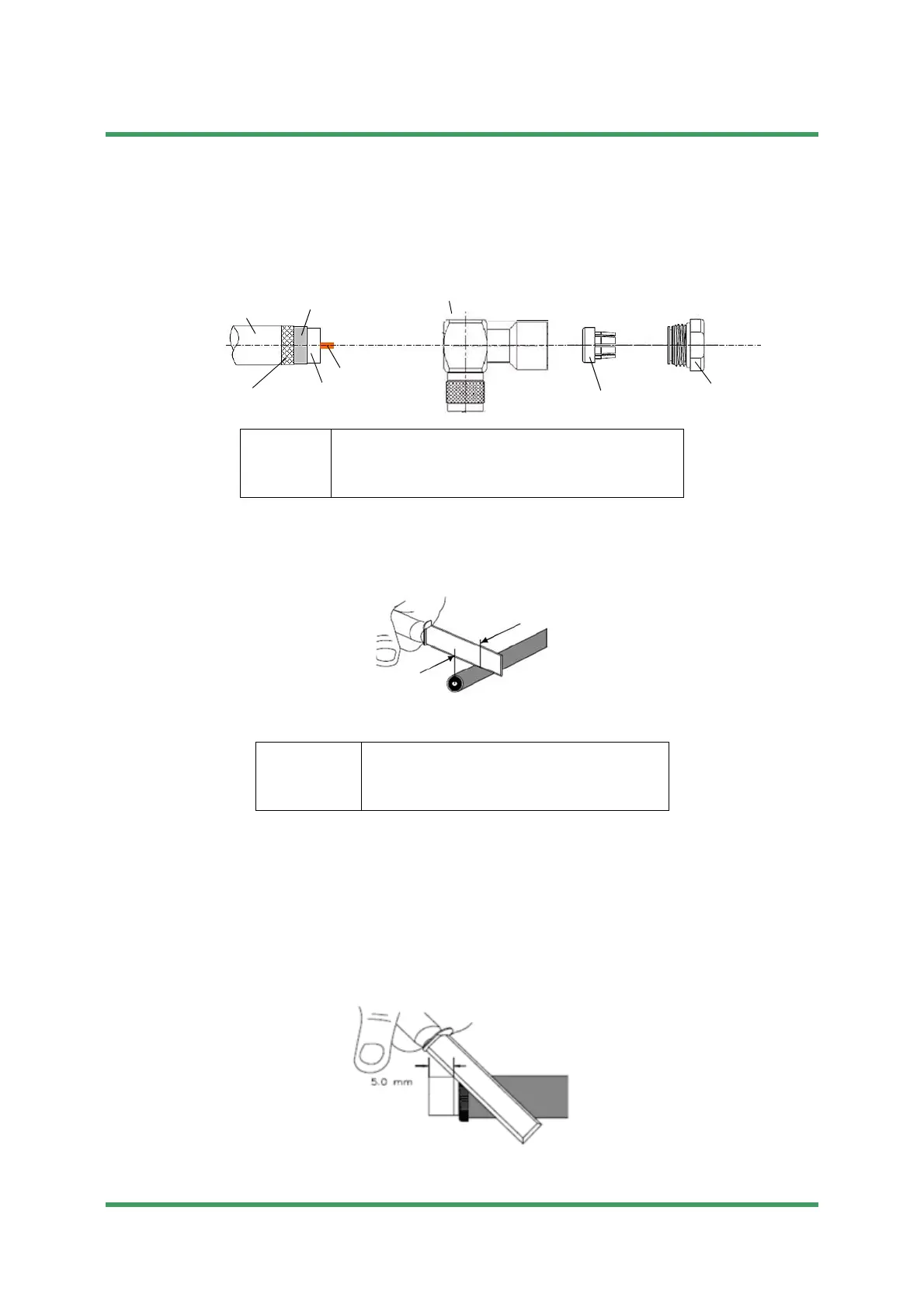

Procedure 6-2 TNC-P Connector used for IDU IF IN/OUT
(L-angle: 300PTR-C-NC)
1 Remove of Jacket of cable
Remove 6.5 mm of Jacket only, exposing braided wire.
Note Do not damage the braided wire.
2 The braided wires processing-1
(1) Fold the braided wire around jacket.
(2) Remove 5.0 mm of insulator.
(3) Remove all insulator/tape residue from the center conductor.
Tools
• knife, cutter, nipper, tweezers, file, comb,
measure, clearance gauge, etc.
• spanner, torque spanner; 16 mm, 15 mm
Tools
•knife
• cutter
• measure, etc.
[Applicable cable: 5D-FB-E]
Outlines of parts
Cable jacket
Aluminum tape
Braided wire
Insulator
Center conductor
Connector body Parts A Parts B
A
B
6.5 mm
