6-46 CABLE TERMINATION
NWD-107460-02E Installation
Procedure 6-11 120 ohms Balanced Interface with D-Sub Connector
Notes

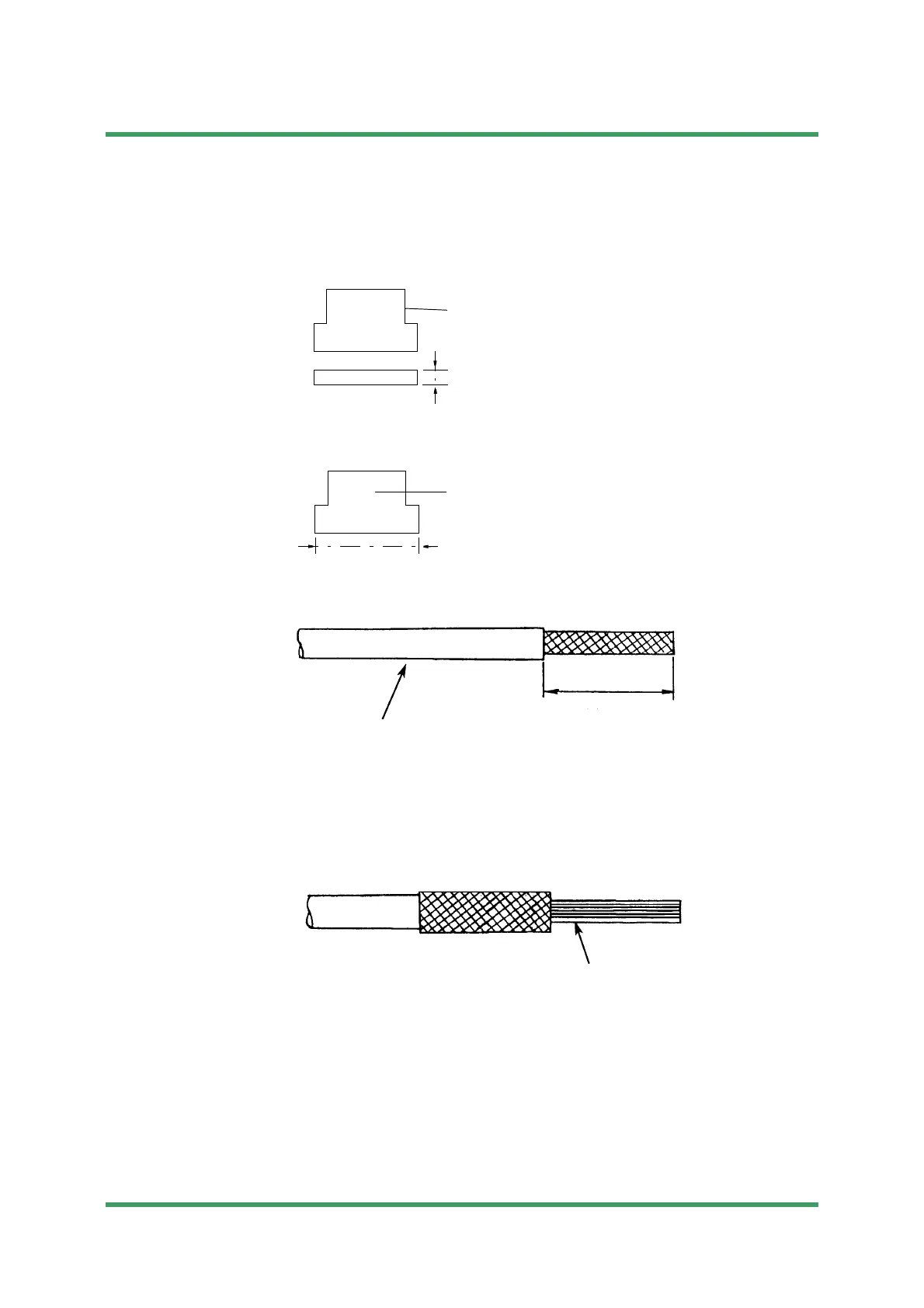

1. Use D-sub connectors of less than 16 mm in height as illustrated below.
2. Use D-sub 44-pin connector for the CTRL of less than 57 mm in width as
illustrated below.
1 Strip back the cable sheath, taking care not to damage the braided shield,
Note Use shielded cables which are connected to the D-Sub connector to
suppress interference from affecting the signal and to reduce
electromagnetic radiation which may interfere with other signal cables.
2 Fold back the braided shield (do not separate the strands) and trim it as shown,
D-sub 44-pin connector for the CTRL
Width
