CABLE TERMINATION 6-47

Installation NWD-107460-02E

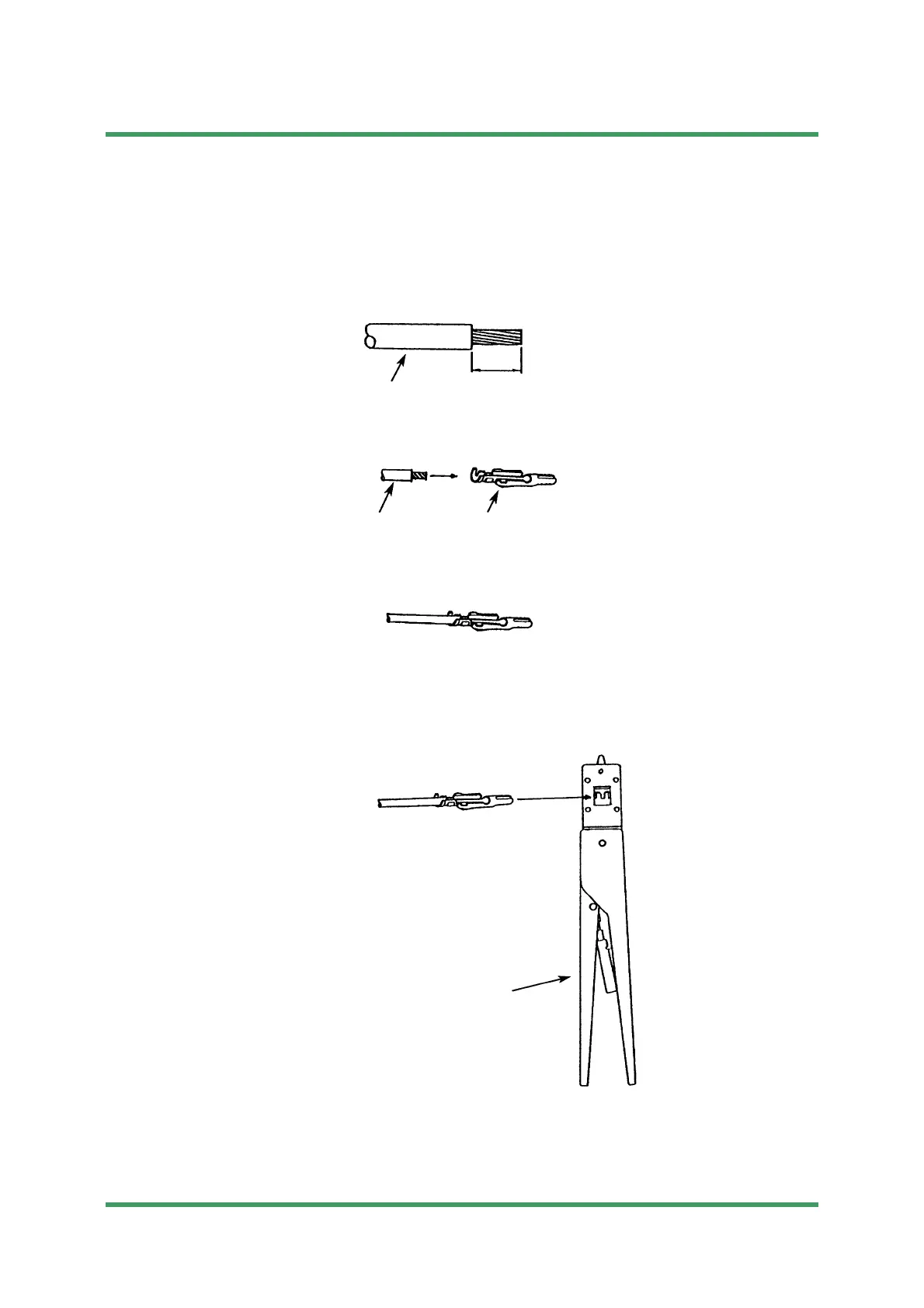

3 Remove 4 mm of insulation from the end of the wire,

4 Insert the cable into the socket contact,

5 The cable should be fitted so that insulation and bare wire are arranged as shown,

6 Insert the socket contact into the hand crimping tool,

Wire

4 mm

AWG#20-24: CD-PC-111

AWG#24-28: CD-PC-121

CONFORMING WIRE SOCKET CONTRACT

Wire

Socket contact

Hand crimping tool

(HRS TC-CD-111/TC-CD-121)

CONFORMING WIRE SOCKET CONTRACT

AWG#20-24: TC-CD-111

AWG#24-28: TC-CD-121
