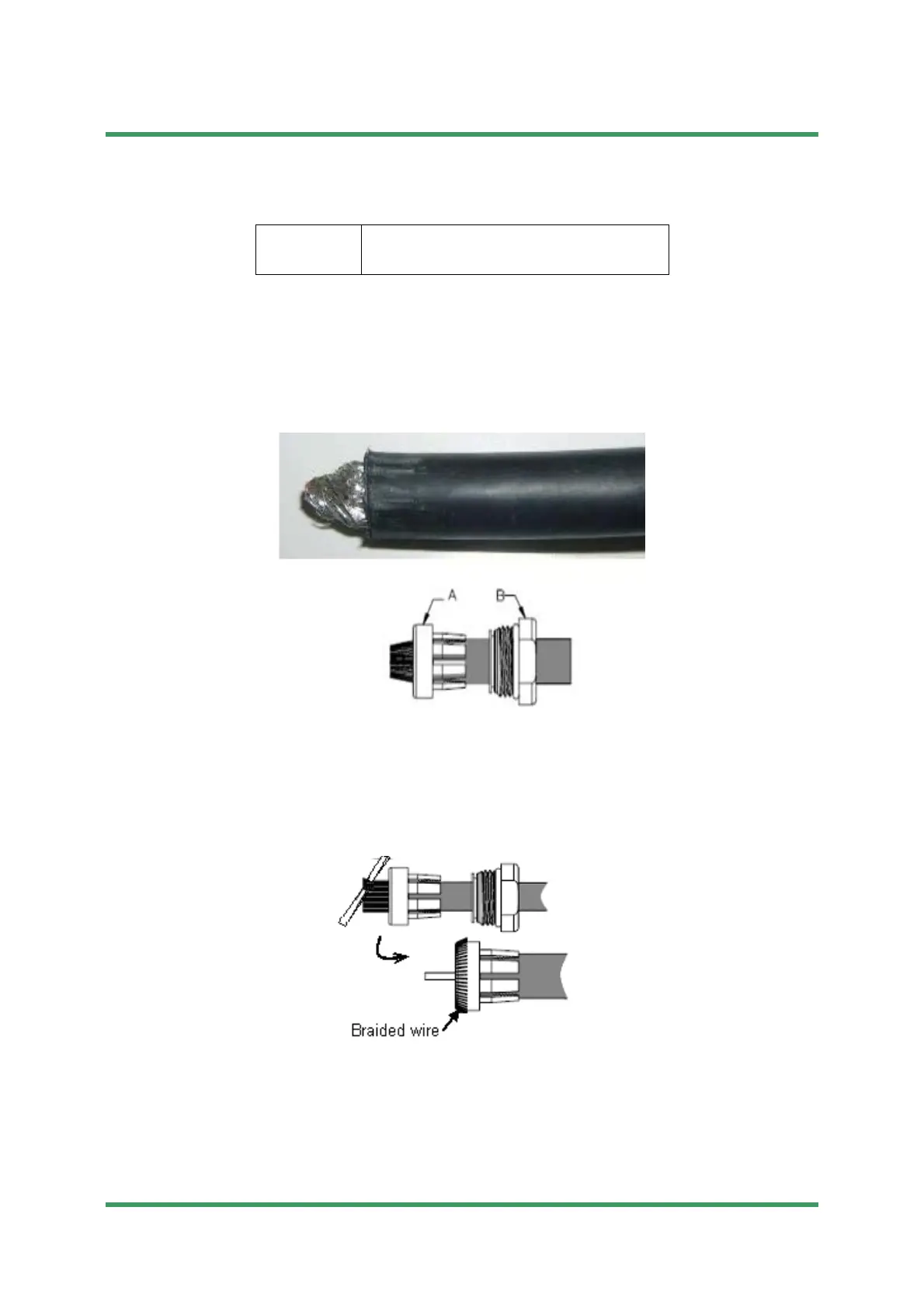

6-12 CABLE TERMINATION
NWD-107460-02E Installation
Note Do not damage the center conductor.
3 Insertion of parts
Make the braided wire small and sharp at the front;
Install parts B and parts A revolving as onto cable without damaging the braided
wire.
4 The braided wires processing-2
(1) The braided wire should be straight and equally spaced by tweezers.
(2) Fold the braided wire around parts A.
Tools
• cutter
• measure etc.,
