6-32 CABLE TERMINATION
NWD-107460-02E Installation
6.2 8D Coaxial Cable
Procedure 6-7 TNC-P Connector used for IDU IF IN/OUT
(L-angle: TNC141(R0))
In case of cable type A (φA)
1 Insertion of parts and remove of jacket of cable.
(1) The clamp nut, the washer are inserted in the cable.
(2) Remove 9 to 10 mm of jacket only.
Note Do not damage the braided wire.
Tools
• knife, cutter, nipper, tweezers, file, measure,
clearance gauge, etc.
• spanner, torque spanner 16 mm
Tools
•knife
•cutter
• measure, etc.

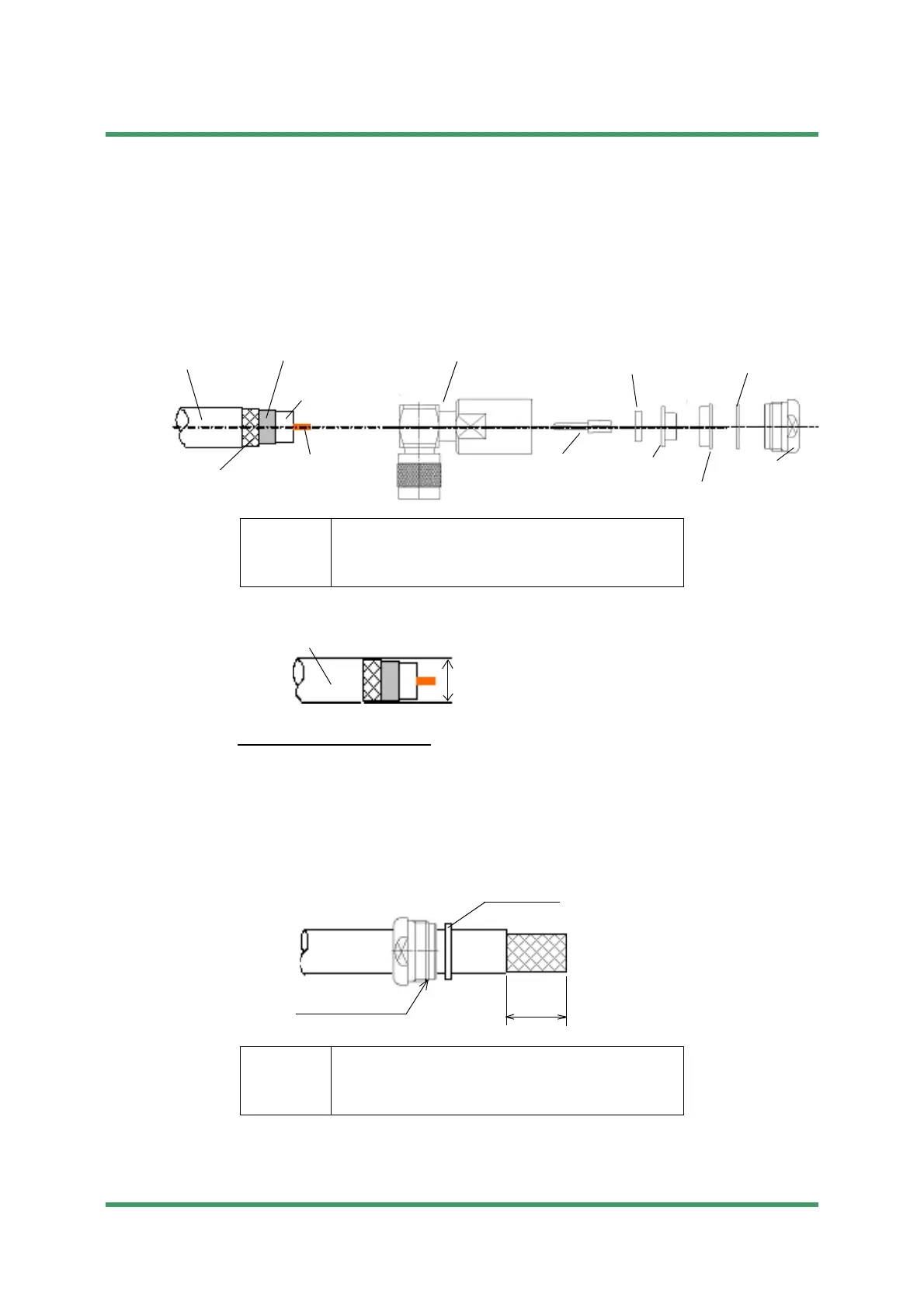

Outlines of parts
[Applicable cable: 8D-FB-E]
Cable jacket
Aluminum tape
Insulator
Braided wire
Center conductor
Connector body
Contact
cord tube
Spacer
Washer
Clamp nut
Clamp
Cable jacket
Diameter over cable jacket
φA or φB
φA: 11 mm
φB: 10 mm
