CABLE TERMINATION 6-33
Installation NWD-107460-02E
2 Insertion of parts.

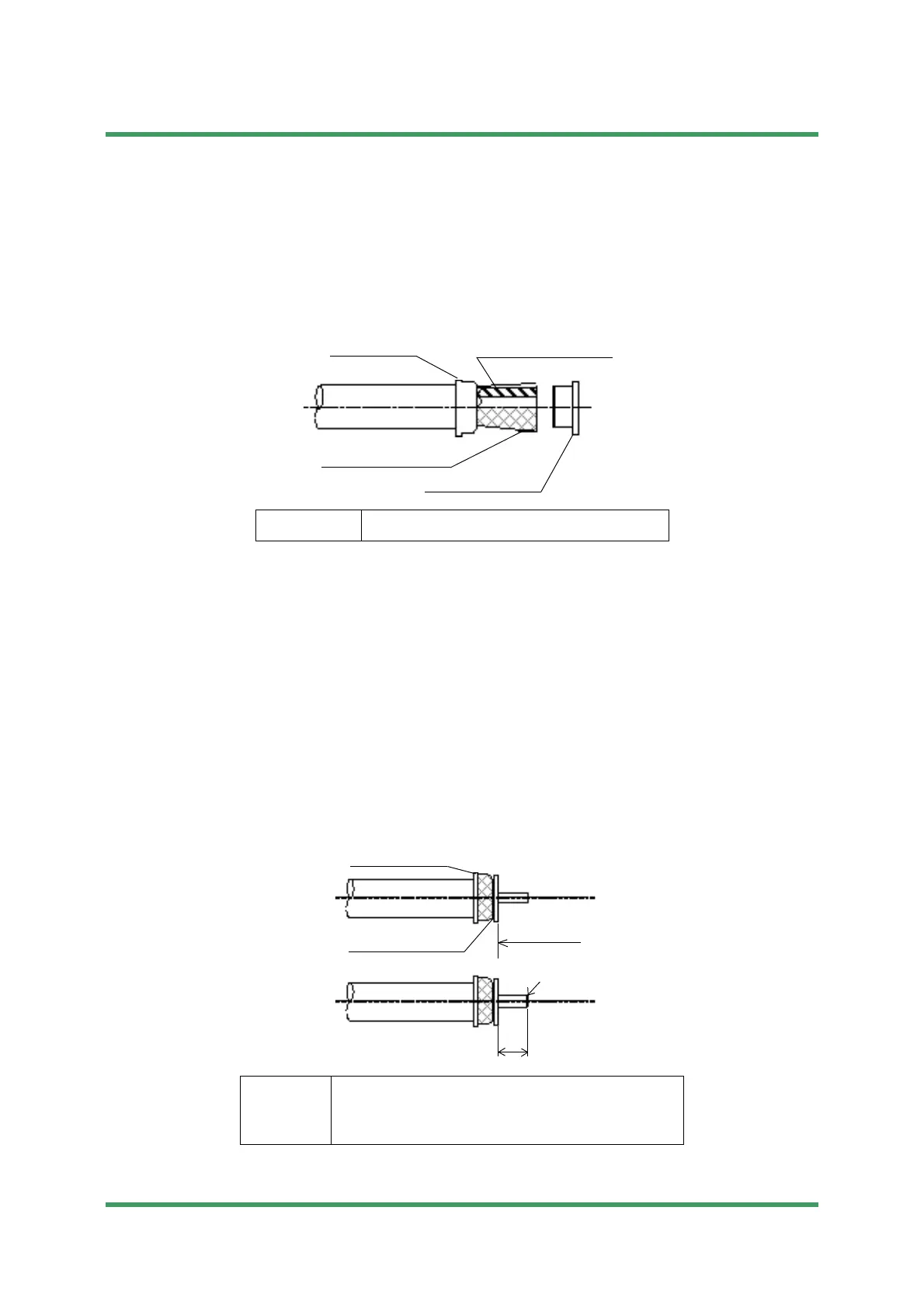

(1) The clamp are inserted in the cable.
(2) The braided wire is expanded a little. The cord tube is inserted between the
aluminum tape and the braided wire.
3 Center conductor, braided wire and insulator processing.
(1) After cord tube insertion, an aluminum tape and the insulator are cut along an
end face.
(2) Turning back the braided wire in the clamp, it cuts off the part which comes
out of the flange.
(3) A central conductor is 6 to 7 mm from an end face.
Cut it to become 6 to 7 mm when there are 7 mm or more.
(4) A point of a central conductor is chamfered.
Tool • tweezers
Tools
•cutter
• nipper
• file
Clamp
Aluminum tape
Braided wire
cord tube
Flange of clamp
cord tube
End face
Chamfering
6 - 7 mm
