6-34 CABLE TERMINATION
NWD-107460-02E Installation
Notes
1. Do not damage the braided wire.
2. Do not damage the center conductor. (brr etc.,)

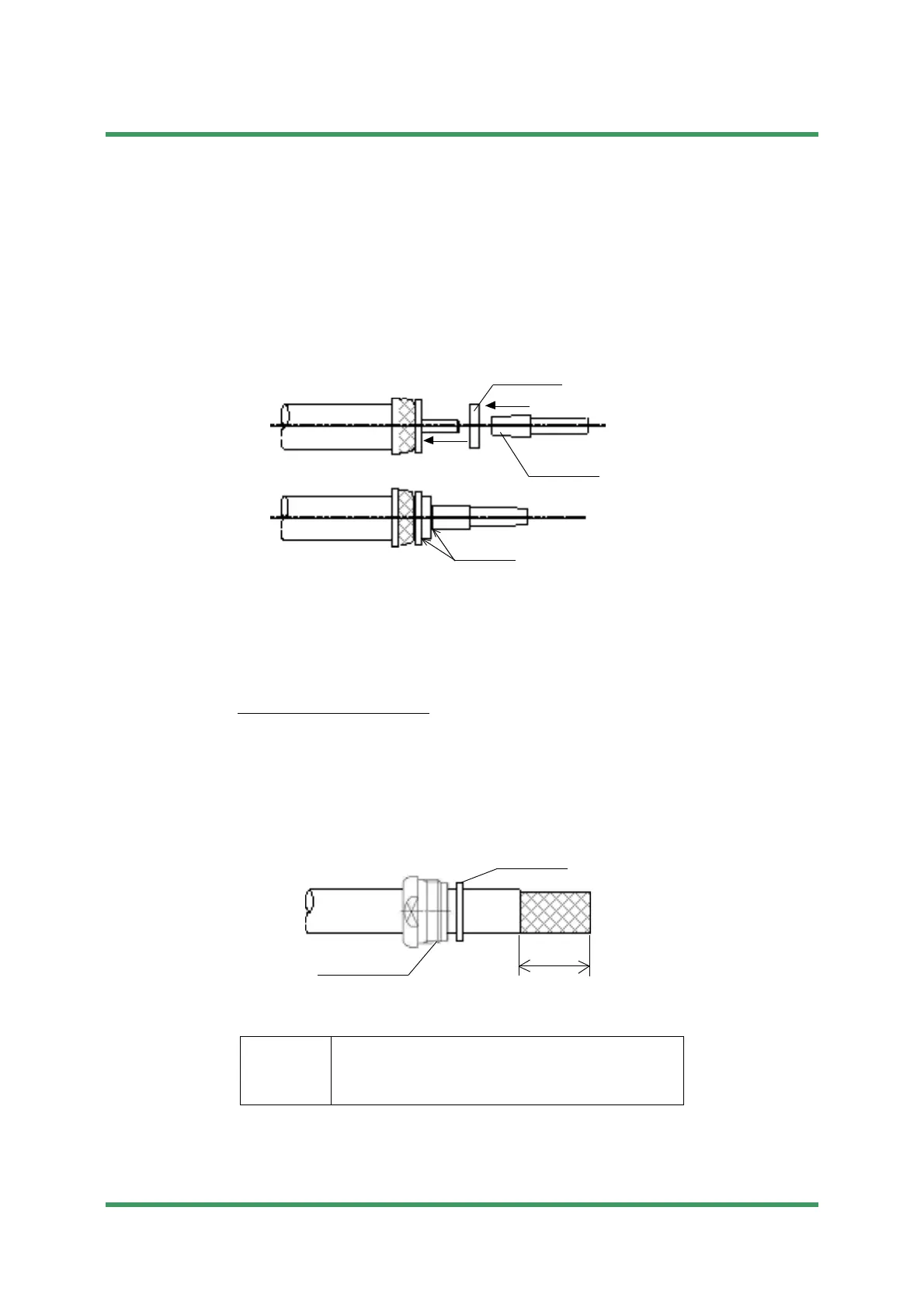

4 Insertion of contact.
(1) A spacer is inserted in a central conductor and contact is inserted.
Note During the contact, the spacer and the insulator there is no gap.
Refer to [common procedure] cable type A & type B for the next procedure.
In case of cable type B (
φB)
1 Insertion of parts and remove of jacket of cable.
(1) The clamp nut, the washer are inserted in the cable.
(2) Remove 13 to 14 mm of jacket only.
Note Do not damage the braided wire.
Tools
•knife
•cutter
• measure, etc.
Submission Prohibited
NEC Internal Use Only
