NEC iPasolink 200 - 7;8 Ghz Coupler; Coupler Assembly

ODU MOUNTING 5-27
Installation NWD-107460-02E
[C] 7/8 GHz Coupler
This Hybrid/coupler is designed to be attached to 0.6 to 1.8 m antennas with interface
for direct mounting of ODU.

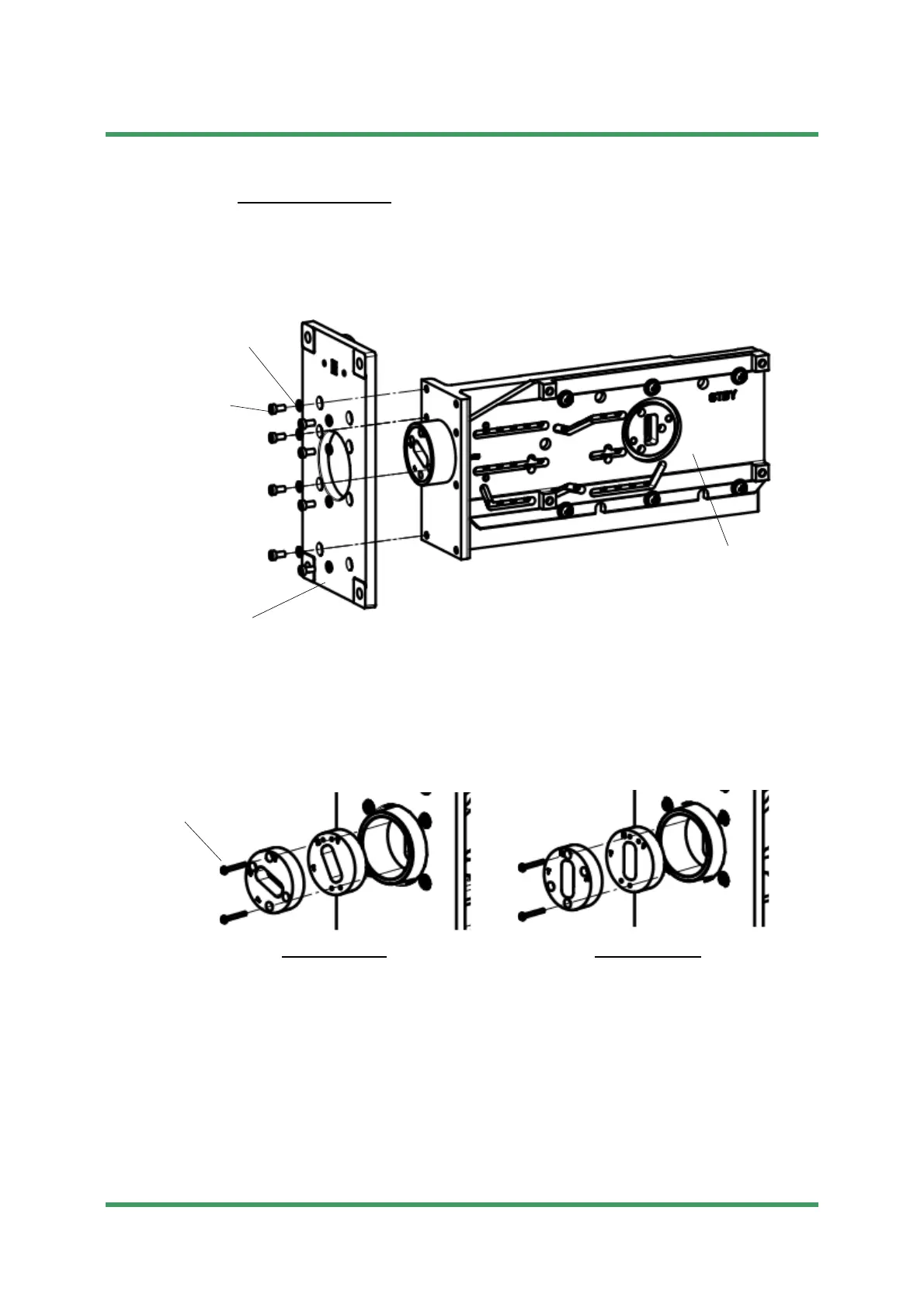

1 Coupler assembly
Note Tightening torque is 3.0 N·m ±10%.
2 Polarization coarse alignment
Support
Spring Washer M5 (8ea.)
Hexagon Socket
Head Cap Screw
M5 x 14 (8ea.)
Coupler
V Polarization H Polarization
Cross-Recessed
Head Machine Screw
M2.6 (2ea.)
(Shipment condition)
