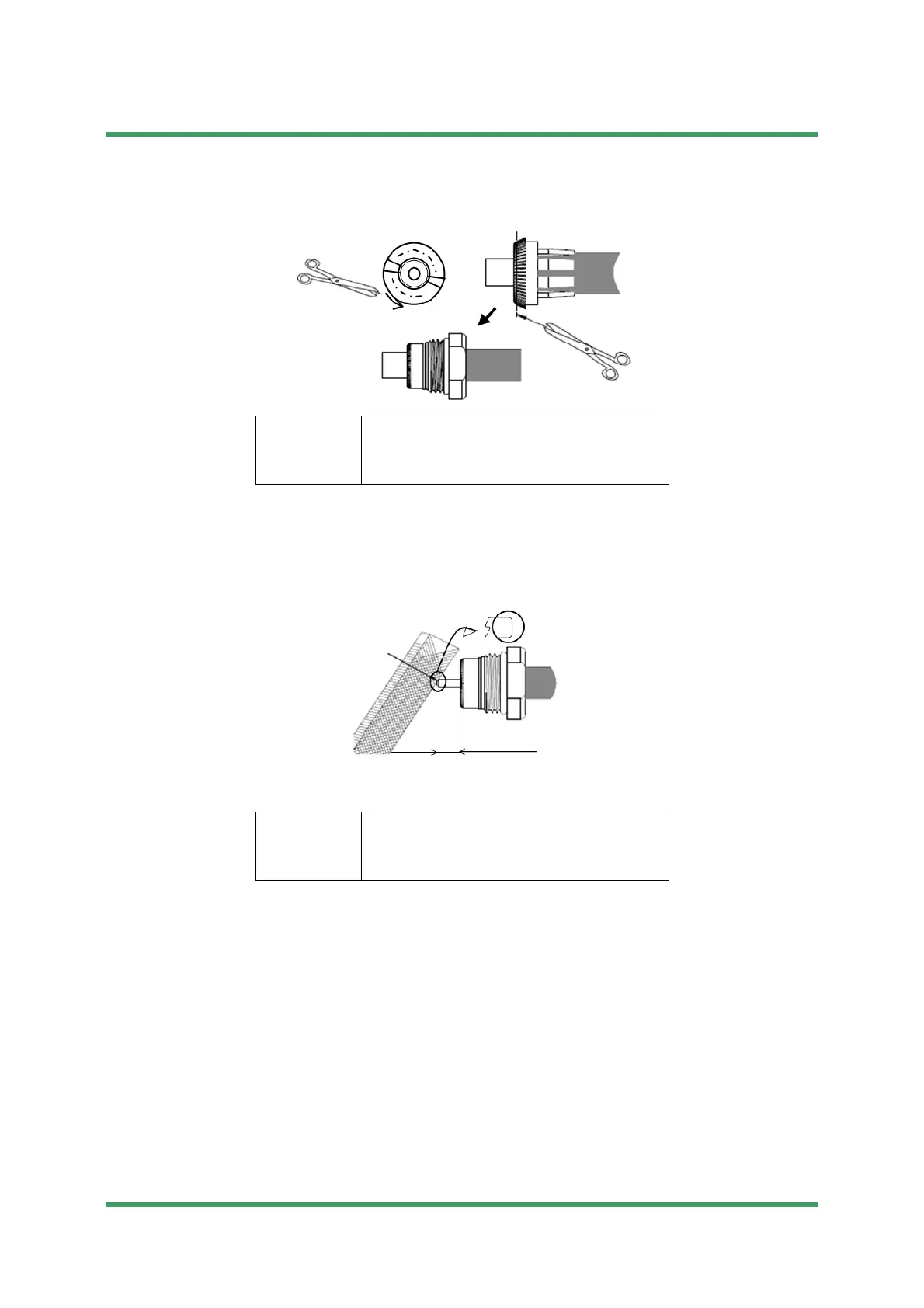

CABLE TERMINATION 6-13
Installation NWD-107460-02E
(3) The braided wire is cut according to outer of parts A.
5 Center conductor processing
Chamfer the center conductor at a 45º angle.
Note Do not damage the center conductor.
Tools
• scissors
•nipper
• tweezers
Tools
• cutter
• measure
• file, etc.
45º
5.0 mm
Submission Prohibited
NEC Internal Use Only
