6-48 CABLE TERMINATION
NWD-107460-02E Installation

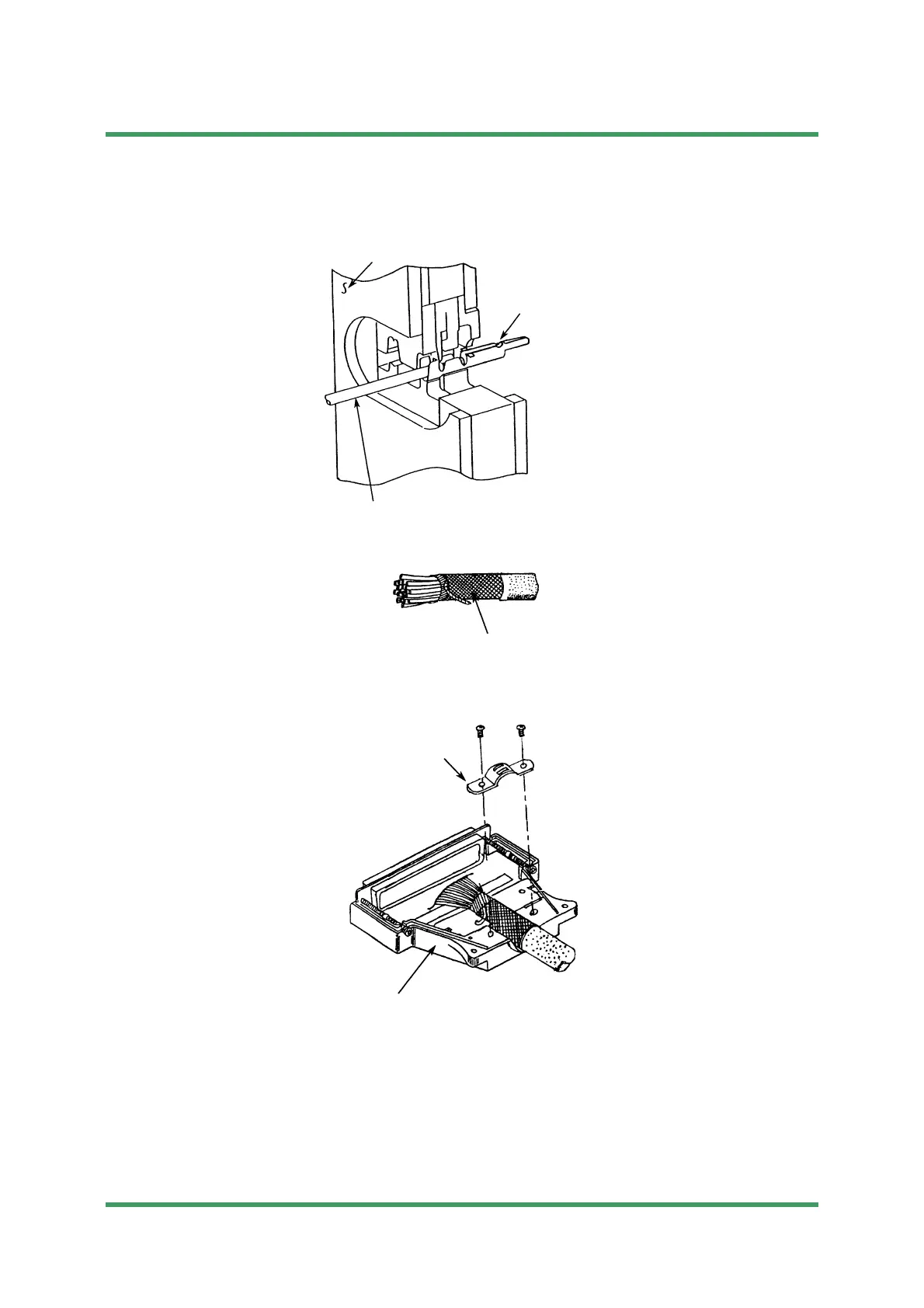

7 Recheck that the wire position is as shown in step 5 before crimping the socket
contact (see illustration below),
8 Wind the metallic shield tape over the braided shield,
9 Set the cable into the plug case as shown in figure below. Then, fix the cable
using the cable clamper and two screws,
10 Referring to circle A, fix the drain wire with screw,
Wire side
Socket contact
Wire
Submission Prohibited
NEC Internal Use Only
To Next Page
