CABLE TERMINATION 6-49

Installation NWD-107460-02E

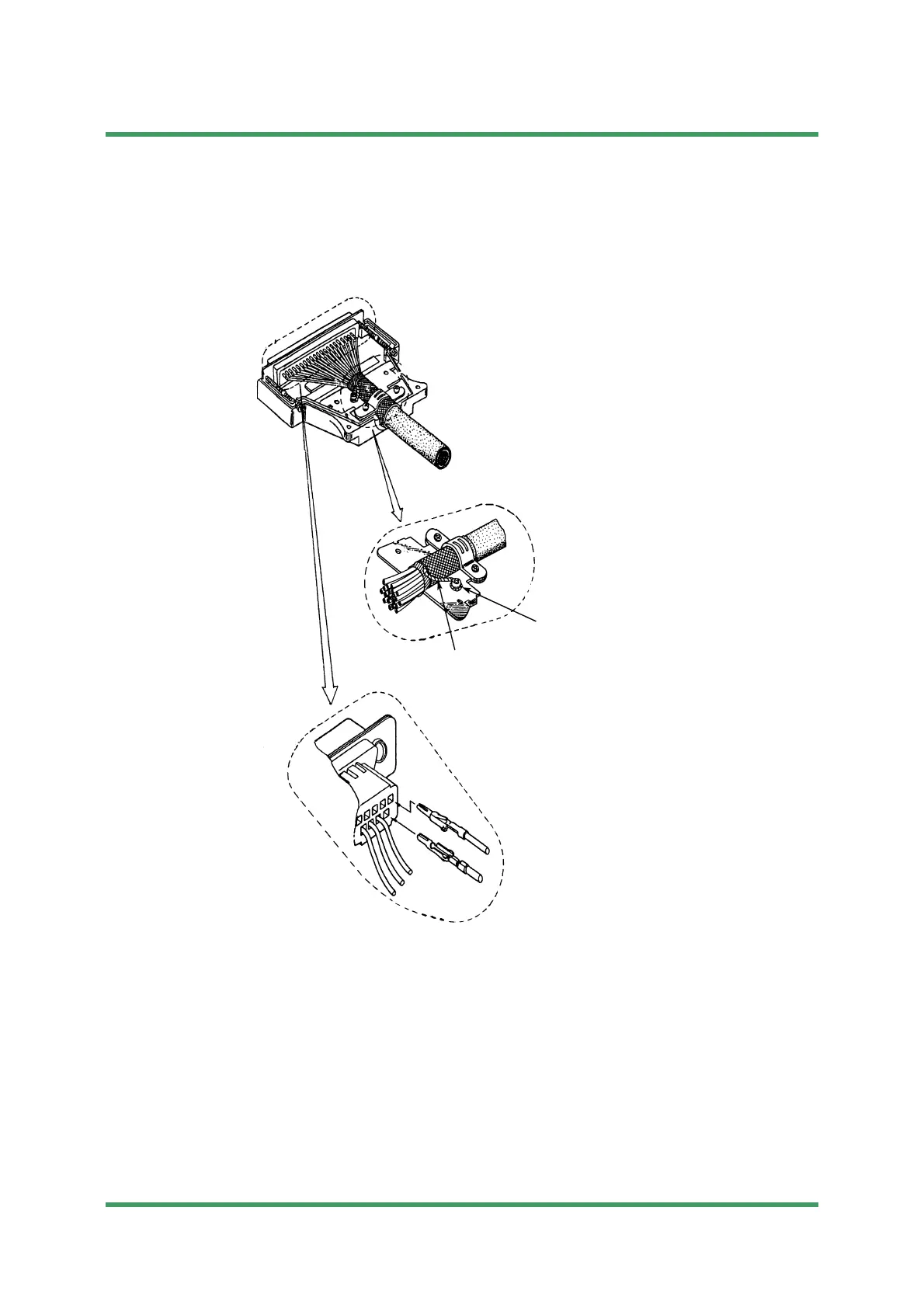

11 Referring to circle B, insert each wire to the specified position (Refer Interface

Terminals and Jacks for IDU in Section II OPERATING EQUIPMENT.). Insert

the socket contacts into the upper and lower row positions while taking care that

the socket contacts are inserted the right way,

Circle A

Screw

Drain wire

Circle B

Submission Prohibited

NEC Internal Use Only
