NEC iPasolink 200 User Manual

CABLE TERMINATION 6-39
Installation NWD-107460-02E

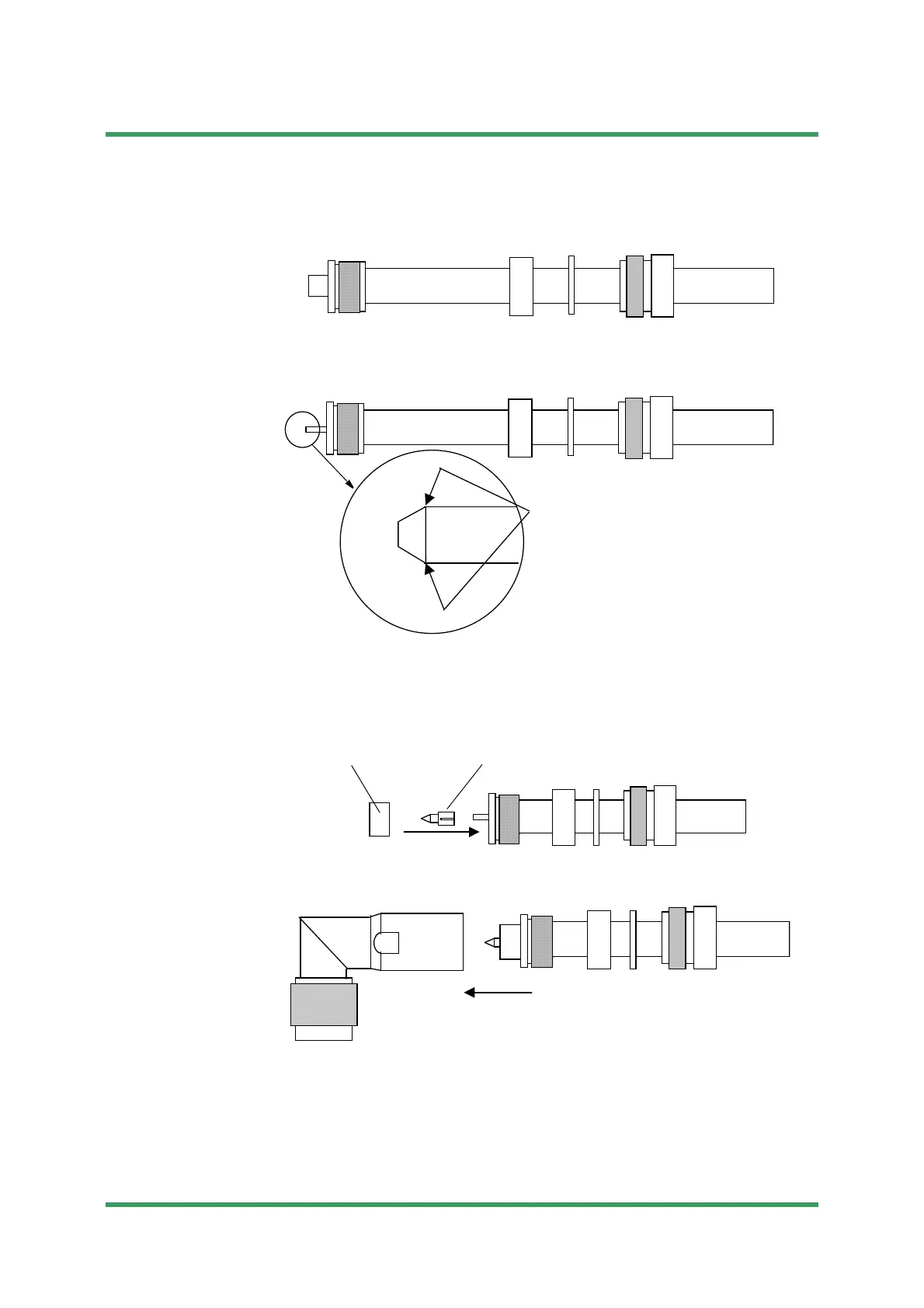

6 Cut the aluminum foil and inner insulator away along the bushing and retain the
inner conductor,
7 Taper the edge of the center conductor using a file as shown in the enlarged view
below,
Note Pay attention not to let protrusions and indents to occur.
8 Mount the contact onto the center conductor and mount the insulator onto the
contact,
9 Insert the cable into the shell,
Insulator Contact
Submission Prohibited
NEC Internal Use Only
