WIRING and FORMING 7-5
Installation NWD-107460-02E

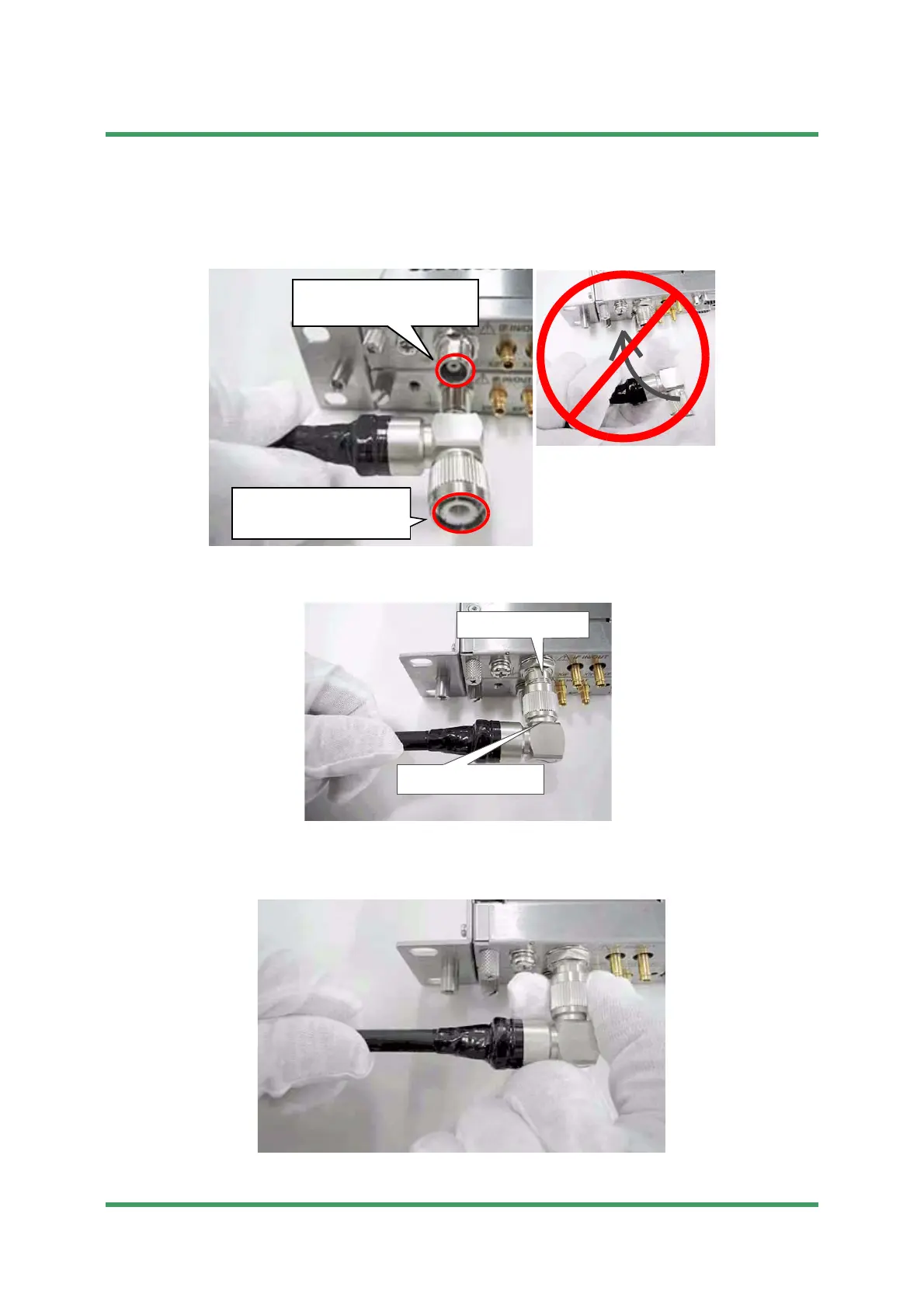

(b) Preparation for connecting the IF cable to the IDU.
When connecting the IF cable to the IDU, turn the IF Cable itself to match face to face their
interface points between the IF cable and the IDU.
(c) Matching those interface points between the IF cable and the IDU.
(d) Connecting the IF cable to the IDU.
If it is difficult to connect by single hand, do not twist the IF cable but support softly.
Do not turn the L-
angle connector itself
to avoid high stress
to cause it damaged.
Interface point of
IDU side connector
Interface point of
Interface point of
IDU side connector
Interface point of
Cable side connector
IDU side connector
Cable side connector
Submission Prohibited
NEC Internal Use Only
