ODU MOUNTING 5-11
Installation NWD-107460-02E

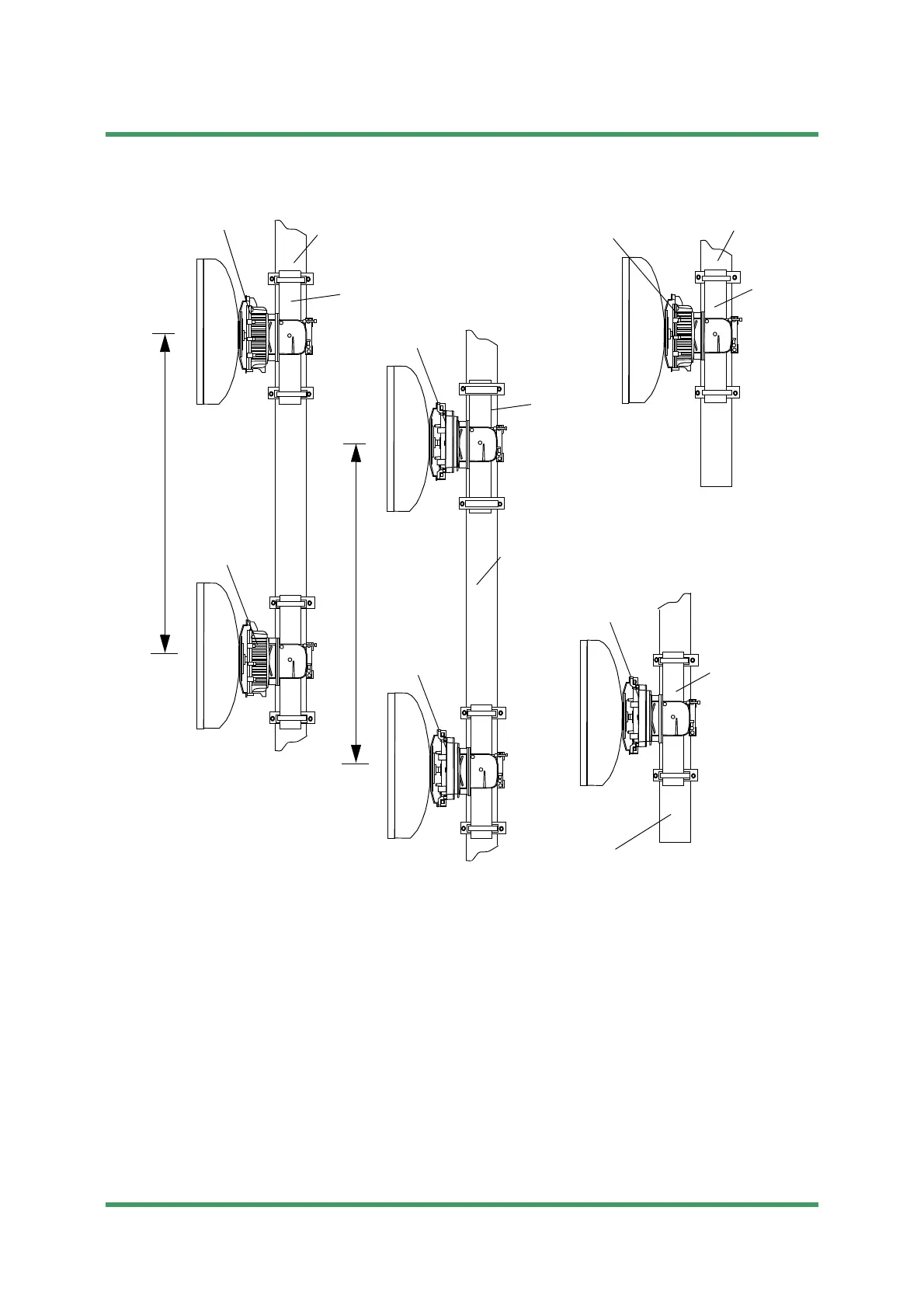

Note Antenna separation (S) is given by path calculation depending on the
system parameter.
1+1 SD System
Pole
(S)
Member of tower
1+0 System
Member of tower
Pole
No.1 ODU
No.2 ODU
ODU
ODU (6-11 GHz)
1+0 System
Member of tower
Pole
ODU
ODU (13-38 GHz)
1+1 SD System
ODU (6-11 GHz)
ODU (13-38 GHz)
Pole
(S)
Member of tower
No.2 ODU
No.1 ODU
