5-20 ODU MOUNTING

NWD-107460-02E Installation

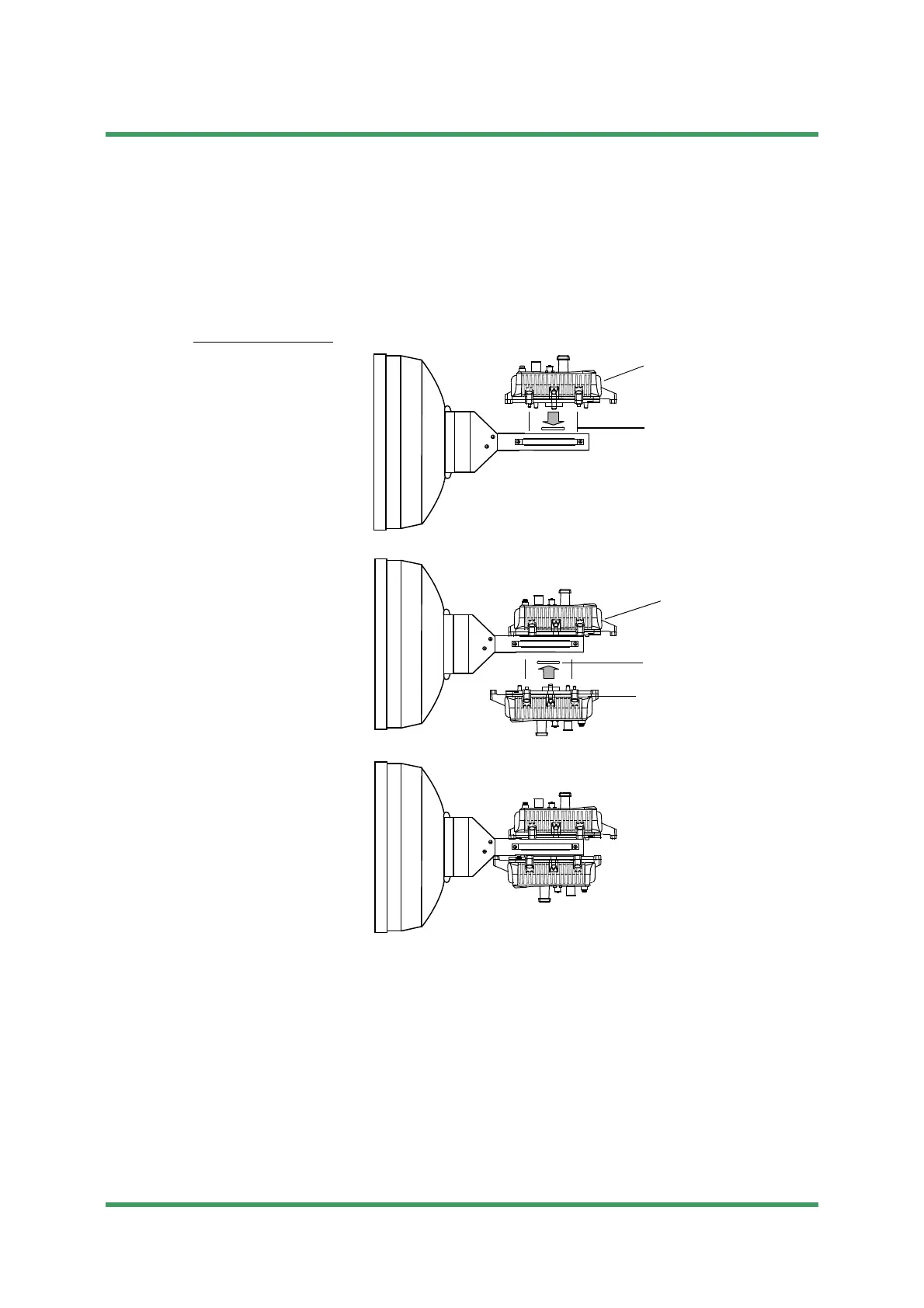

3 Insert the O-rings to the two ODU ports of the Hybrid/Coupler,

4 Install the two ODUs with hex screws (four locations) using the Allen key

wrench.

Note Be careful not to damage the O-rings (Hybrid/Coupler).

For 10/11 GHz ODU

Note Tightening torque is 4.0 N·m ±10%.

O-ring

ODU

O-ring

ODU
