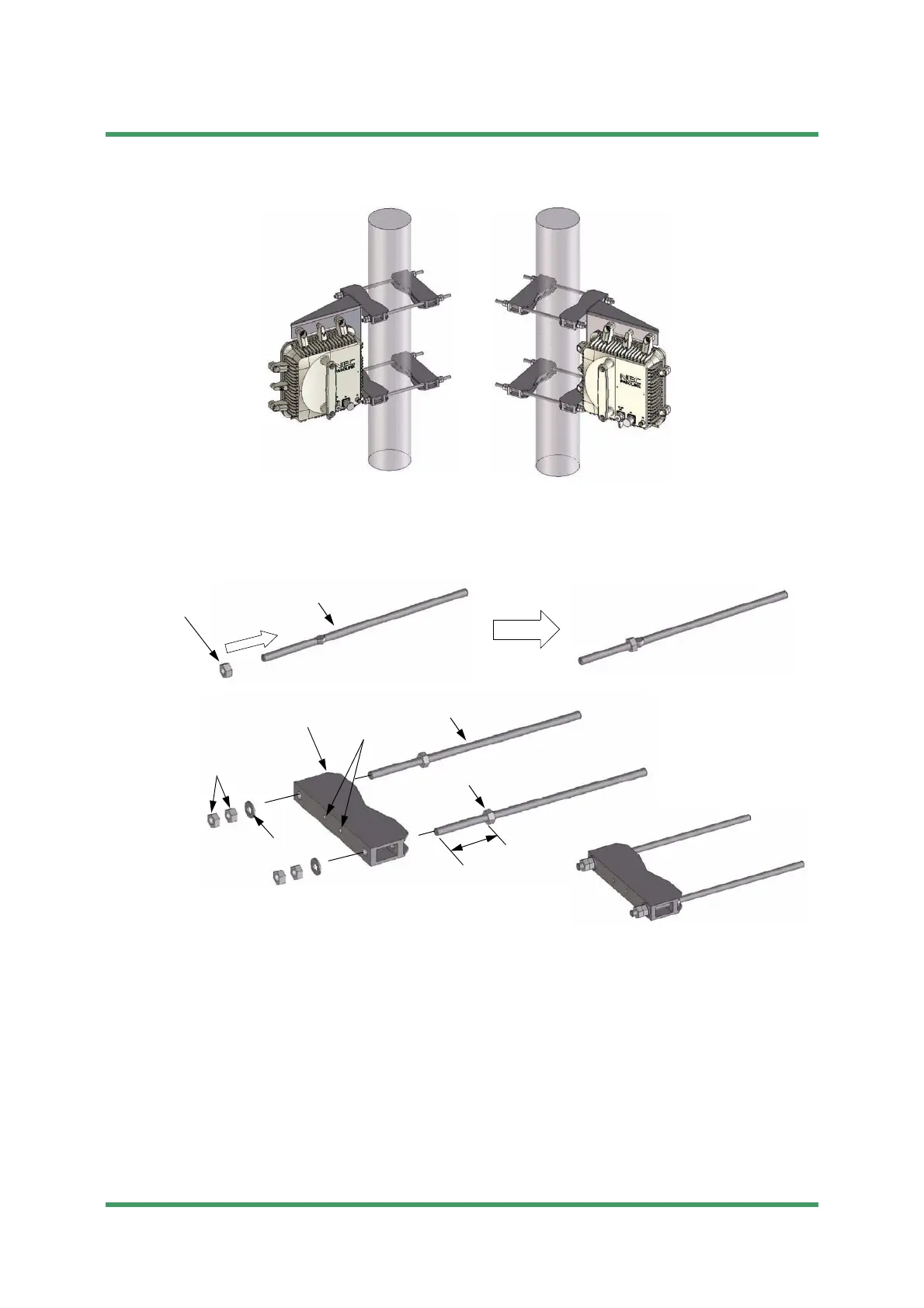

5-46 ODU MOUNTING
NWD-107460-02E Installation
1 A nut is assembled to a stud bolt until a nut has come to a complete stop,
Standard Installation
Reverse Installation
Stud bolt M8
Hexagon nut M8
Hexagon nut M8 (4 ea)
Stud bolt M8 (2 ea)
Fixed nut
Approx. 56 mm
Holder-1
Flat washer M8 (2 ea)
Note Tightening torque is
11 N·m ±10%.
Assembly of the Holder-1 (2 sets)
2 Taps M6
Submission Prohibited
NEC Internal Use Only
