NEC iPasolink 200 User Manual

5-58 ODU MOUNTING
NWD-107460-02E Installation

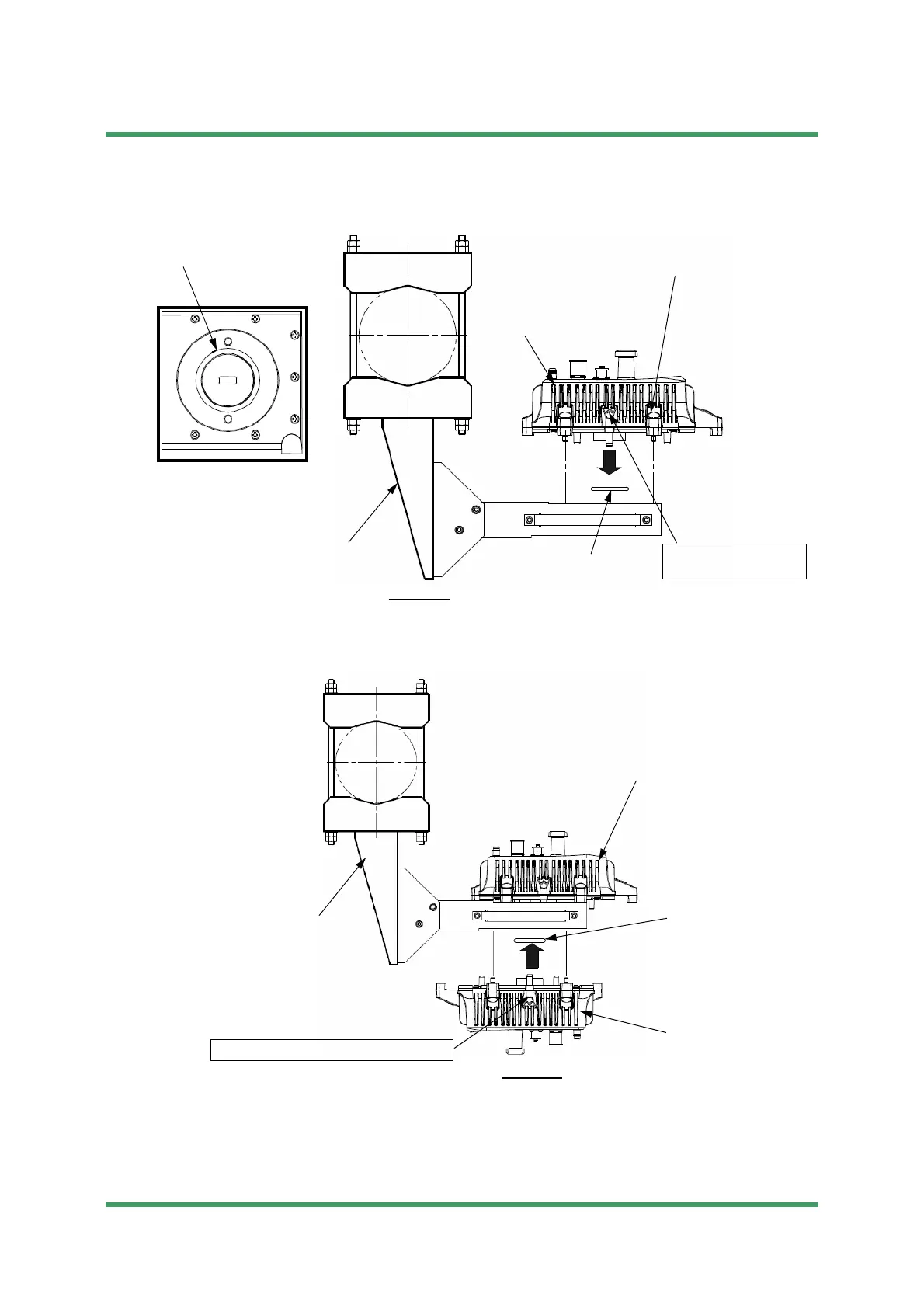

7 Attachment of main ODU,
8 Attachment of standby ODU,
Mounting bracket
O-ring I/D φ32
(Packing)
Connection part details
ODU (Main ODU)
Hexagon socket head
cap screw M6
O-ring I/D φ32
(Packing)
ODU should be attached
by turning “V” up.
Top view
Mounting bracket
ODU (Main ODU)
O-ring I/D φ32
(Packing)
ODU (Standby ODU)
ODU should be attached by turning “V” up.
Top view
