NEC iPasolink 200 User Manual

ODU MOUNTING 5-65
Installation NWD-107460-02E

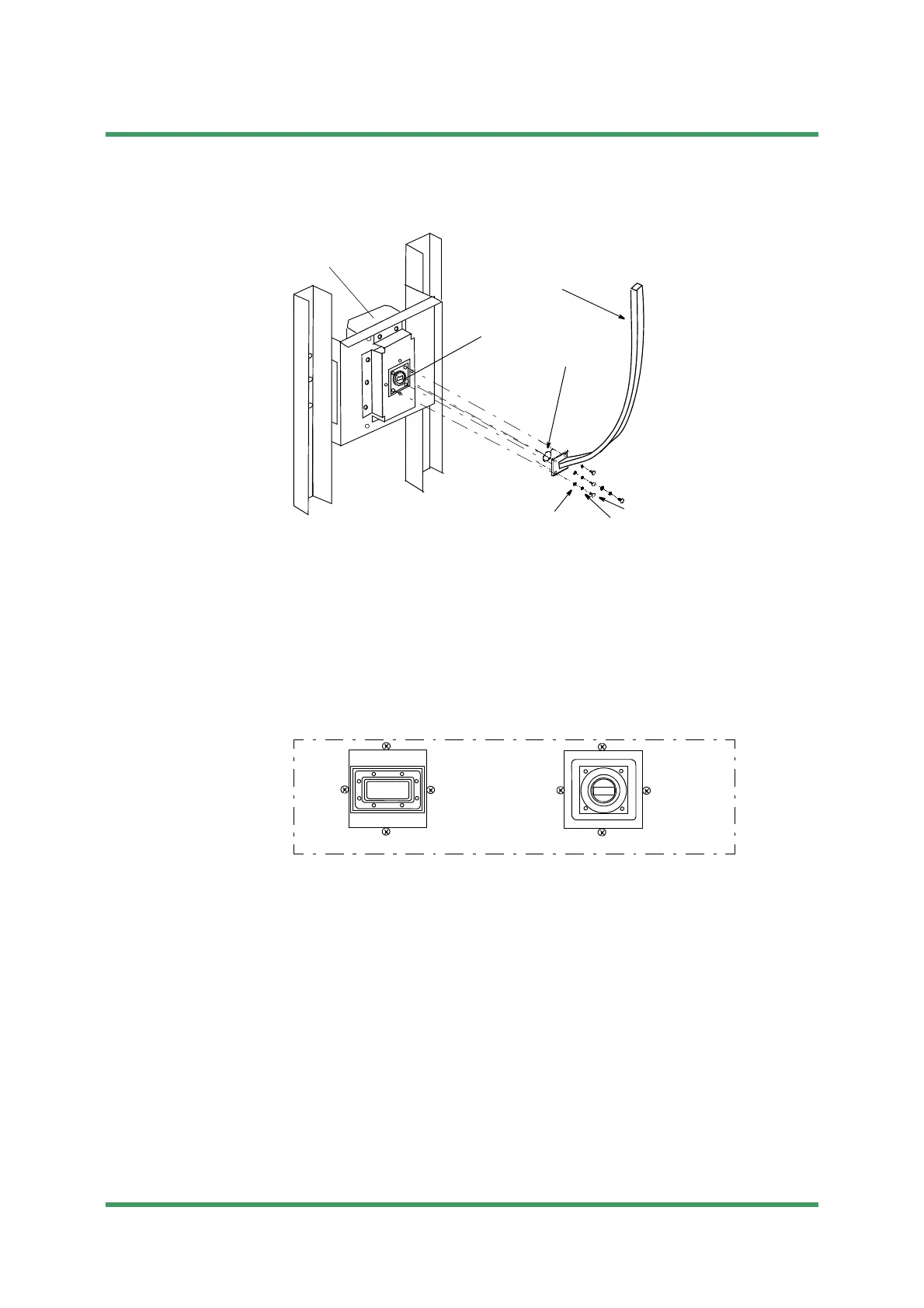

3 Connect the wave guide to the transducer for the ODU.
Notes
* M4: Up to 15 GHz.
M3: 18 GHz or higher.
1. Tightening torque is 1.4 N·m ±10% (up to 15 GHz).
Tightening torque is 0.6 N·m ±10% (18 GHz or higher).
2. Be careful not to damage the O-ring.
Refer to 5.2.2 ODU Mounting for Waveguide Connection.
Washer
O-ring
Waveguide
Bolt*
Spring washer
ODU
A
For 13-38 GHz
Details of A
For 10/11 GHz
Submission Prohibited
NEC Internal Use Only
