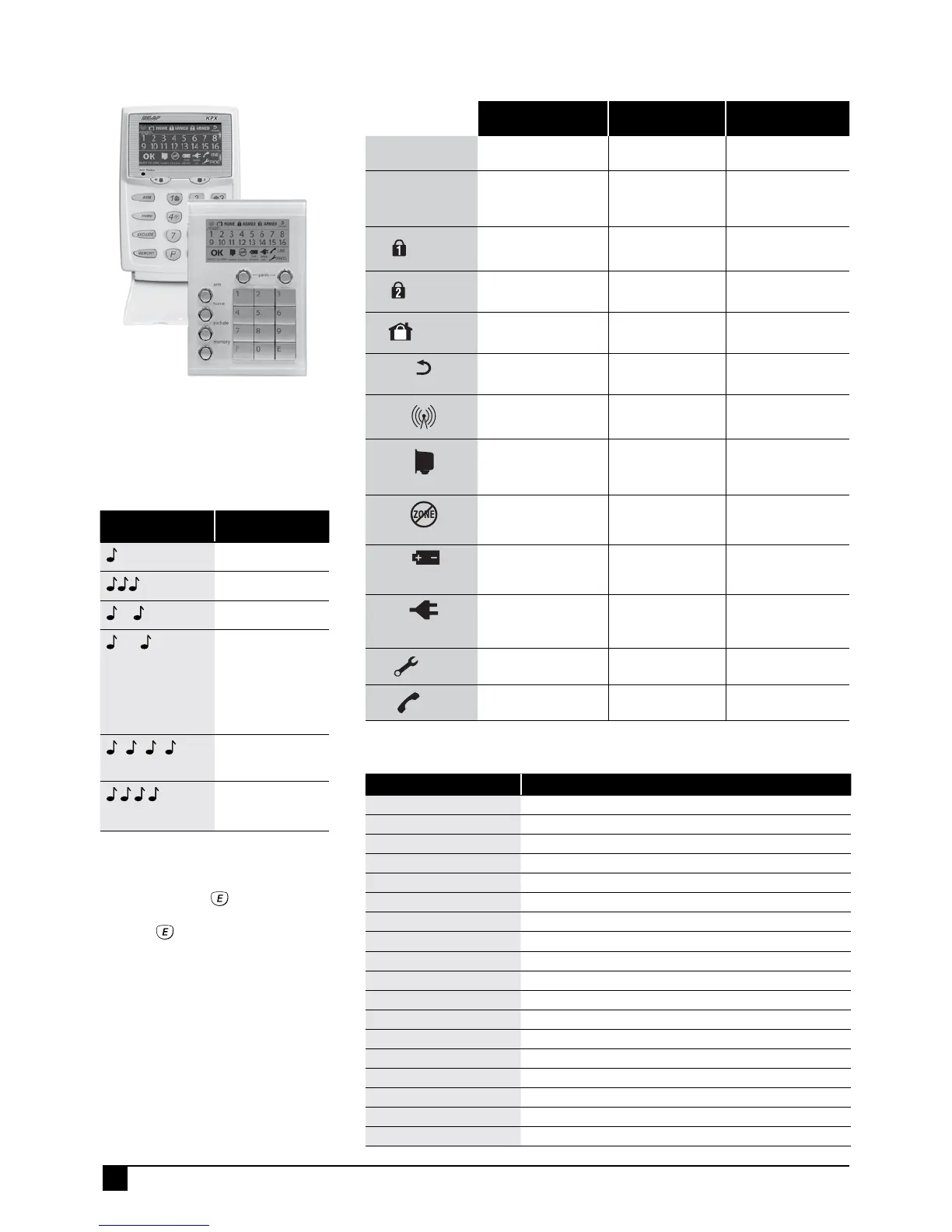

Ness D8X Installation & Programming Manual

KeypaD
KEYPAD BEEPS
BEEPS MEANING
1 BEEP
Any key press.
3 BEEPS
Valid Command.
–– 1 LONG BEEP
Error.
..10..
10 BEEPS
Mains Power is off
or Panel Battery is low
or A Radio Device
has sent a low battery
signal
or Telephone Line Fail
has been detected.
... ... ...
Constant SLOW beeps
An AutoTime action is
due to begin.
. . .
Constant FAST beeps
An AutoTime action
will begin in one
minute.
KEYPAD DISPLAY INDICATORS IN MEMORY MODE
KEYPAD ICON MEMORY EVENT
Zone numbers 1–8 or 1–16 Zone alarm
(no icons displayed) Panel Disarmed
ARMED Panel Armed (or Area 1 Armed)
ARM2 Area 2 Armed
MAINS Mains power failure
BATTERY Low Battery
TAMPER + 1 Internal Tamper alarm
TAMPER + 2 External Tamper alarm
EXCLUDE + 1 Panic alarm
EXCLUDE + 2 Medical alarm
EXCLUDE + 3 Fire alarm
LINE Telephone line fail
RADIO, EXCLUDE Radio Key Panic alarm
RADIO, BATTERY, ZONE Radio Device battery low, (Device number is indicated by zone lights)
RADIO, BATTERY, ARM Radio Key battery low, (Radio Key number is NOT indicated)
RADIO, TAMPER, ZONE Radio Device tamper alarm (Device number is indicated by zone lights)
RADIO, HOME, ZONE Radio Supervision alarm (Device number is indicated by zone lights)
HOME, ZONE Wired Zone Supervision alarm (Zone number is indicated by zone lights)
DISPLAY TEST
To display all available keypad icons
press and hold the
button for at least
2 seconds. All icons will be displayed
while the
button is held down.
Display Test can be activated at any time
either in operating mode or any program
mode.
NUMBER OF KEYPADS
Up to 3 LCD keypads can be connected
to a panel.
CABLE LENGTH
The maximum allowable cable length is
100m (total cable length to all keypads).
The instructions on this page relate to
Ness Saturn and KPX keypads.
Refer to the Ness Navigator user's
manual for operating instructions specific
to the Navigator Touch Screen keypad.
KEYPAD DISPLAY INDICATORS IN OPERATING MODE
KEYPAD ICON
DISPLAY
OFF ON FLASHING
ZONES
1-8 (or 1-16)
Zone is sealed. Zone is unsealed. Zone is in alarm.
READY TO ARM
OK
Zone/s are unsealed.
or Power fault.
or Panel is armed.
or phone line fault.
Ready to Arm
ARMED
Panel is disarmed,
or Area 1 is disarmed, if
using Areas.
Panel is armed,
or Area 1 is armed, if
using Areas.
ARMED
Area 2 is disarmed. Area 2 is armed if
using Areas.
HOME
Home Mode is disarmed. Panel is armed in
Home Mode.
Day Mode enabled, (see
page 20).
MEMORY
Normal. Memory mode
selected.
New alarm/s in memory.
Normal. Receiving a radio
signal. (If radio fitted.)
A Radio Key or other
radio device has low
battery.
TAMPER
Normal. Internal Tamper: Double
Flash with long pause.
External Tamper: Steady
flash.
EXCLUDE
Normal. Zone/s are Excluded.
LOW
BATTERY
Normal. The backup battery
is low.
MAINS
OFF
Normal. Mains power is off.
PROG
Normal. User Program Mode. Installer Program Mode.
LINE
Normal Dialler is on line. Phone line fault or
failure to communicate.
10
Ness D8x / D16x Control Panel – Installation Manual
