[INSTALLER CODE]
Factory default Installer Code: 000000
[MASTER CODE]
Factory default Master Code: 123
USER PROGRAM Mode
INSTALLER PROGRAMMode
OPERATING Mode
Power up with Program Link OFF
(Usually on first time installation)
PROGRAM LIGHT IS FLASHING
PROGRAM LIGHT IS ON
PROGRAM LIGHT IS OFF
+
+
++
+
+
PROG
PROG

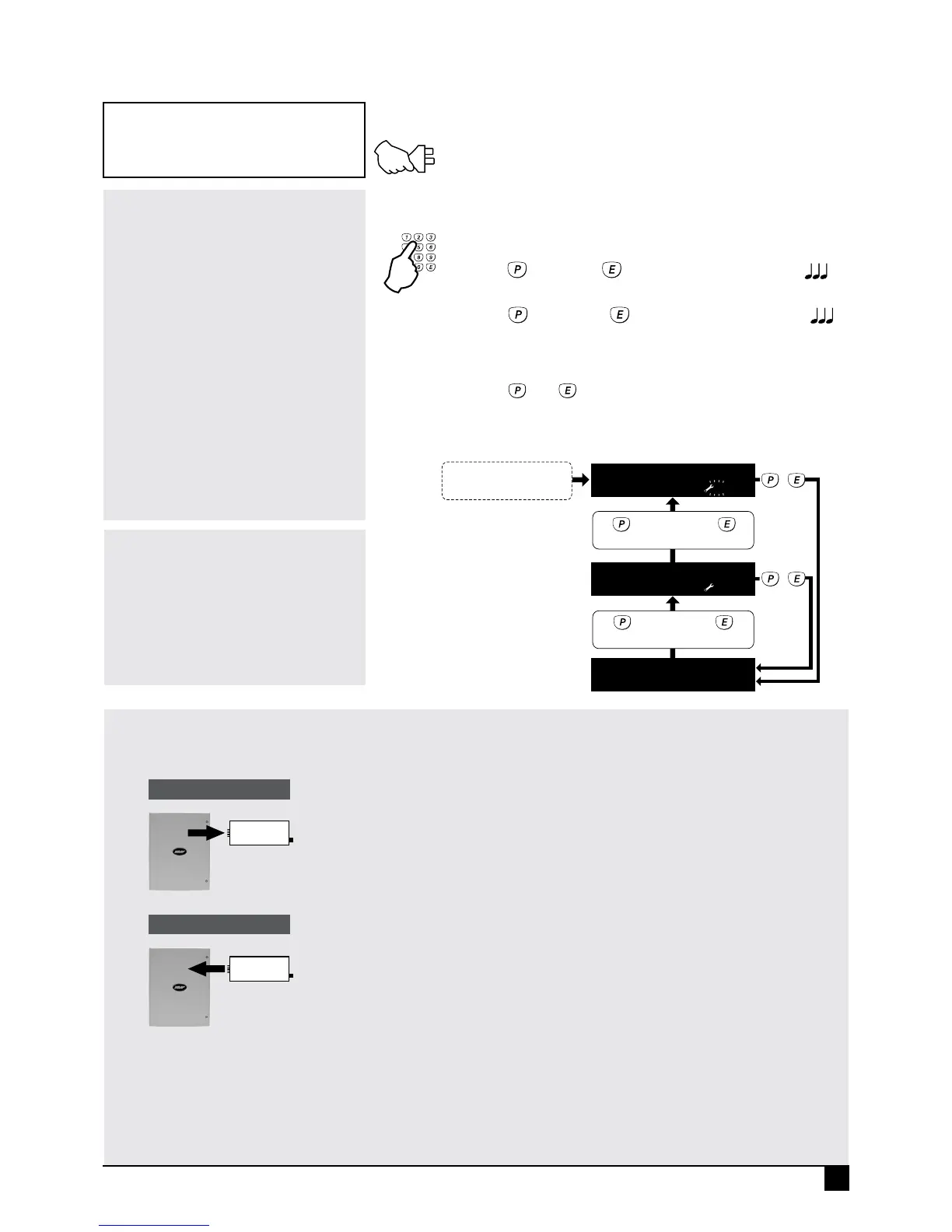

PROGRAM LEVELS FLOW CHART
INSTALLER PROGRAM MODE
Installer Program Mode allows access to ALL
program options.
NOTE1. When in Installer Program Mode the
the panel will answer all incoming telephone
calls. This allows NessComms to connect via
dial-up.
NessComms Direct Connect via the serial
port also requires the panel to be in Installer
Program Mode.
NOTE2. The panel will remain in Installer
Program Mode until
P + E is entered by keypad.
INSTALLER'S POWER TIP
All inputs are disabled while the panel is in
Installer Program Mode. This handy feature
allows you to work on the system without
triggering 24 hour zones such as tamper
inputs.
USER PROGRAM MODE
User Program Mode allows the owner to program:
Note: The panel will automatically drop out of
User Program Mode to Operating Mode if no
keypad buttons are pressed for 4 minutes.
HOW TO PROGRAM A PANEL USING NESS PD
panels. Requires D8x/D16x version 7.4 or later. Not compatible with the 106-009 D16x C-Bus panel.
HOW TO ENTER PROGRAM MODE
METHOD 1. FIRST TIME PROGRAMMING – FROM POWER UP
1. Power-up with the PROG/TAMP link OFF.
Replace the PROG/TAMP link (or Box Tamper lead) after
programming. The link must be on in normal operating mode.
METHOD 2. USING THE KEYPAD TO ENTER PROGRAM MODE
The panel must be Disarmed.
1. Press
The keypad will respond with 3 beeps
This is User Program Mode (PROGRAM light is ON).
2. Press
The keypad will respond with 3 beeps
This is Installer Program Mode (PROGRAM light is FLASHING).
HOW TO EXIT PROGRAM MODE
1. Press then
Exits directly to Operating Mode (PROGRAM light is OFF).
FACTORY DEFAULTS
Master Code: 123
Installer Code: 000000
NESS PD
106-017
D8X / D16X
PORTABLE
DOWNLOAD
NESS PD
106-017
D8X / D16X
PORTABLE
DOWNLOAD
From Panel to PD
From PD to Panel
1. The panel should be in Installation Program Mode.
2. Connect the NessPD to the READER header on the panel.
3. Remove the PROTECT link on the NessPD.
4. Press P+E to exit Installation Program Mode. At this stage, all panel programming options
will be automatically copied to the NessPD. The green LED on the NessPD will turn on for 2sec
to indicate the data has been saved.
5. Replace the PROTECT link on the NessPD to write-protect the saved data.
6. The panel should be in Normal Operating Mode (or powered off).
7. Connect the NessPD to the READER header on the panel.
8. Use the keypad to enter Installation Program Mode (or power up the panel with box tamper
unsealed). At this stage, all panel programming options will be automatically copied from the
NessPD to the panel. The green LED on the NessPD will turn on for 2sec to indicate the data
has been copied.
9. Exit Installation Program Mode.
Notes:
1. A NessPD can store defaults for both a D8x and a D16x at the same time. NessPD auto-recognises the panel type and will not copy D8x options into
a D16x (or vice versa). Repeat steps 1 to 5 to copy data from both panels.
2. The READER header is normally used for access control. Your 106-012 Weigand Interface, if installed, can be temporarily disconnected while using
NessPD.
3. The PROTECT link prevents the NessPD from being overwritten.
4. If The GREEN indicator does not come on, then the NessPD is not connected to the panel. If it comes on briefly then the NessPD is Protected or has
no data for that panel model or the data is not compatible (the program option list is different).
5. If the PROTECT link is not installed, any further programming changes made to the panel will be copied to the NessPD.
