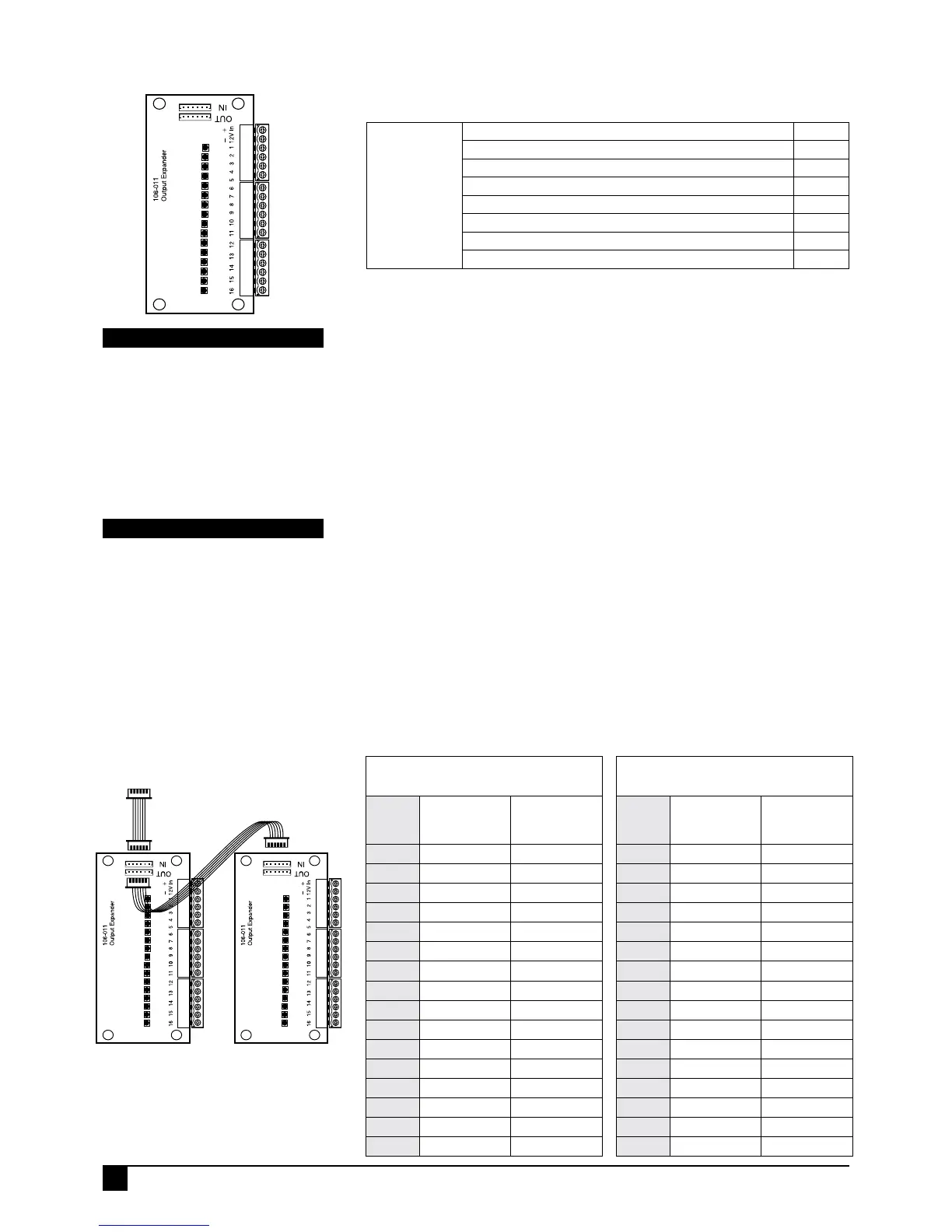

ENABLE OUTPUT EXPANDER
Selecting this option enables the optional 106-011 Output Expander.
When this option is enabled, the J5 connector on the main board will only drive the
Output Expander. All AUX outputs are available on the Output Expander.
See the table below for a description of each output.
PROGRAMMING SEQUENCE:
P117E 1E toggles the option ON and OFF
OFF: No Output Expander
ON: Output Expander enabled
P117E 1E
PROGRAM MODE LEVEL
Installer mode or NessComms.
FACTORY DEFAULT
OFF: No Output Expander.
NOTES
be used per D8 or D16 panel.
ALTERNATE EXPANDER FORMAT
Selecting this option changes the alarms on the 1st and 2nd Output Expander.
With the option OFF: Zone 1 to Zone 16 are on the 1st Expander. The AUX, ARM and
other outputs are on the 2nd Expander. Use this option when only Zone outputs are
required and only one Expander is used.
With the option ON: Zones 1 to Zone 8 are on the 1st Expander. The AUX, ARM and
other outputs are on the first Expander. Zones 9 to Zone 16 are on the 2nd Expander.
Use this option when a variety of outputs are needed using only one Expander.
PROGRAMMING SEQUENCE:
P117E 2E toggles the option ON and OFF
OFF: No Alternate Format
ON: Alternate Format enabled
P117E 2E
PROGRAM MODE LEVEL
Installer mode or NessComms.
FACTORY DEFAULT
OFF: No Alternate Format.
NOTES
header on the 1st Expander. This 6-way
header on the Expander cannot be used
for any other purpose.
outputs are required then 2 Expanders are
needed - in which case select this option
so that it best suits the installation wiring.
Alternate format disabled
P117E 2E = OFF
Alternate format enabled
P117E 2E = ON
OUTPUT EXPANDER 1
(Or if only using
one expander)
EXPANDER 2 OUTPUT EXPANDER 1
(Or if only using
one expander)
EXPANDER 2
1 Zone 1 User Code 9 1 Zone 1 User Code 9
2 Zone 2 User Code 10 2 Zone 2 User Code 10
3 Zone 3 User Code 11 3 Zone 3 User Code 11
4 Zone 4 User Code 12 4 Zone 4 User Code 12
5 Zone 5 User Code 13 5 Zone 5 User Code 13
6 Zone 6 User Code 14 6 Zone 6 User Code 14
7 Zone 7 User Code 15 7 Zone 7 User Code 15
8 Zone 8 Tel. Line Fail 8 Zone 8 Tel. Line Fail
9 Zone 9 Aux 1 9 Aux 1 Zone 9
10 Zone 10 Aux 2 10 Aux 2 Zone 10
11 Zone 11 Aux 3 11 Aux 3 Zone 11
12 Zone 12 Aux 4 12 Aux 4 Zone 12
13 Zone 13 Arm Home 13 Arm Home Zone 13
14 Zone 14 Mains Fail 14 Mains Fail Zone 14
15 Zone 15 Battery Fail 15 Battery Fail Zone 15
16 Zone 16 Ext. Tamper 16 Ext. Tamper Zone 16
Option No. Description Default
P117E
1E
Enable Output Expander
OFF
2E
Alternate Format
OFF
3E
Day Zone follower
OFF
4E
Output Exclude
OFF
5E
[not used]
OFF
6E
[not used]
OFF
7E
[not used]
OFF
8E
[not used]
OFF
54
Ness D8x / D16x Control Panel – Installation Manual
PROGRAMMING
