Component
Locations on
the E5400
Controller-Drive
Trays
The E5400 controller-drive trays include three models: the E5460, the E5424, and the
E5412. Keep these points in mind when you compare the figures in this section to
your hardware.
The top of the controller-drive tray is the side with the labels.
The configuration of the host ports depends on which host interface card
configuration is installed.
The figures in this section show the AC power option.

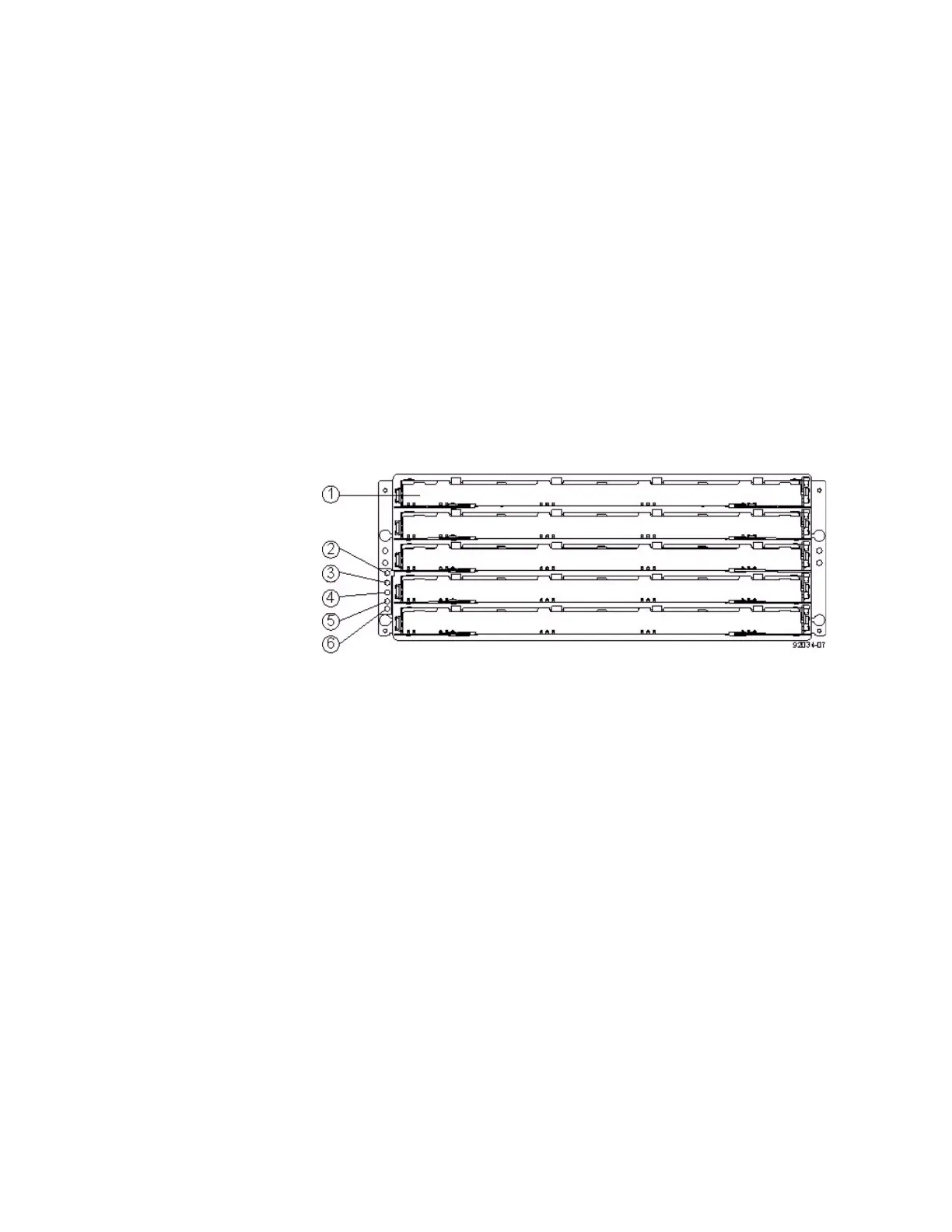

Figure 4 E5460 Controller-Drive T
ray – Front View with Bezel Removed
1. Drive Drawer
2. Locate LED
3. Service Action Required LED
4. Over-Temperature LED
5. Power LED
6. Standby Power LED
