NETASQ U30 - Rear Panel

INSTALLATION GUIDE
4. PRESENTATION OF THE APPLIANCES
Layout n°1:
1
Out
2
In
3
dmz1
4
dmz2
5
dmz3
6
dmz4
7
dmz5
8
dmz6
9
dmz7
10
dmz8
11
dmz9
12
dmz10
13
dmz11
14
dmz12
15
dmz13
16
dmz14
Layout n°2:
1
Out
2
In
3
dmz1
4
dmz2
9
dmz7
10
dmz8
11
dmz9
12
dmz10
5
dmz3
6
dmz4
7
dmz5
8
dmz6
13
dmz11
14
dmz12
15
dmz13
16
dmz14
AVERTISSEMENT
The lowest firmware version compatible with layout no. 2 is v. 8.1.3.
In versions lower than that, the order of network ports is not guaranteed.

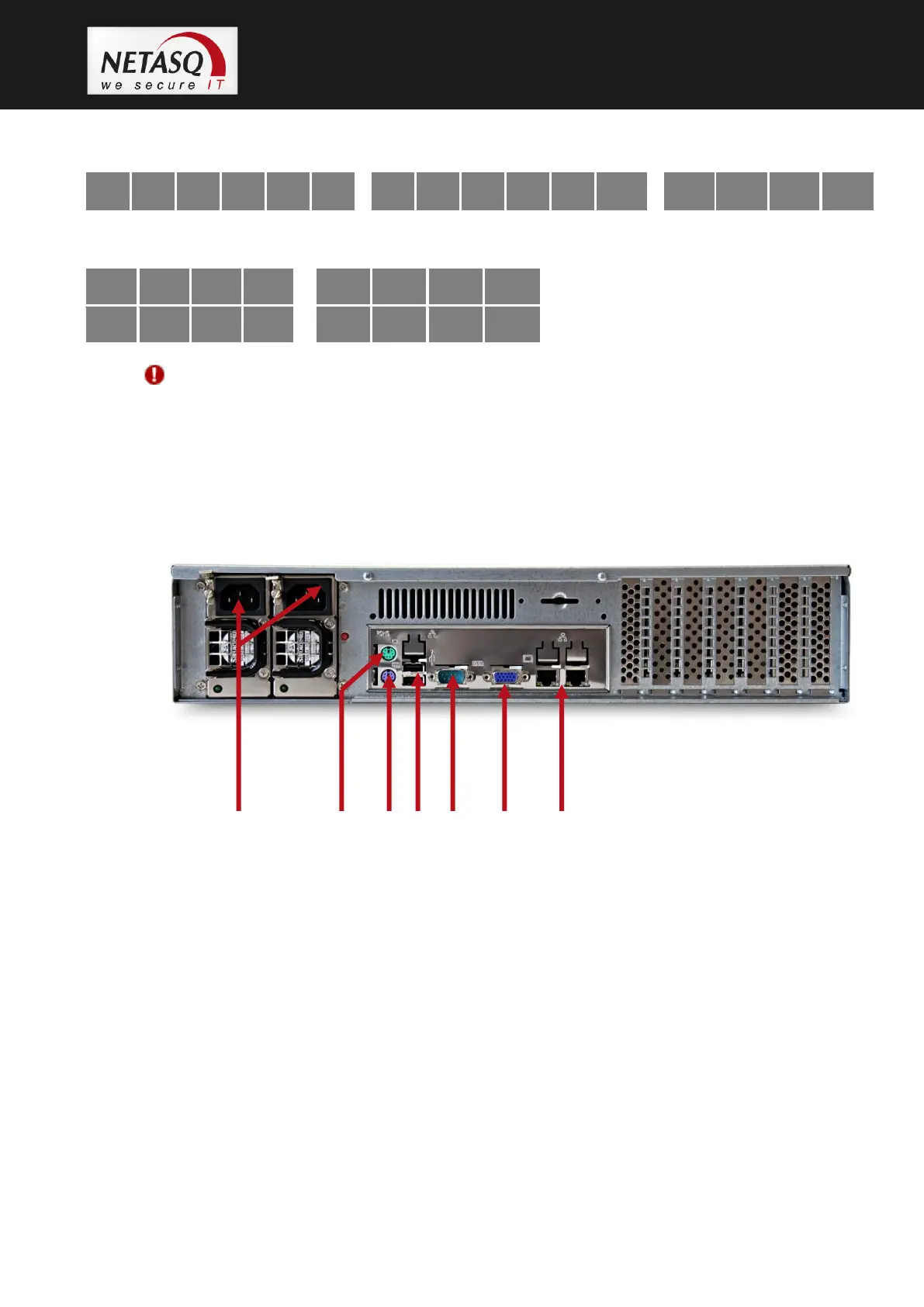

4.11.2 Rear panel
1. 2 power sockets for plugging in 2 mains power cables. The NG5000-A firewall is equipped with a
redundant power supply. You are advised to connect each power unit to a different mains power and to
use a power supply backed up by an inverter.
2. Not in use
3. PS2 mini-din port: for plugging in a keyboard (purple).
4. 2 USB ports: for secure configurations and updates.
5. Serial port: for connecting the firewall directly to a PC or a modem.
6. VGA port: for connecting a monitor.
7. RJ45 Gigabit Ethernet ports for connecting network cables. From left to right, MGMT1 and MGMT2
ports – these are used for administering the product and also for HA.
1
3
2
4
5
6
7
